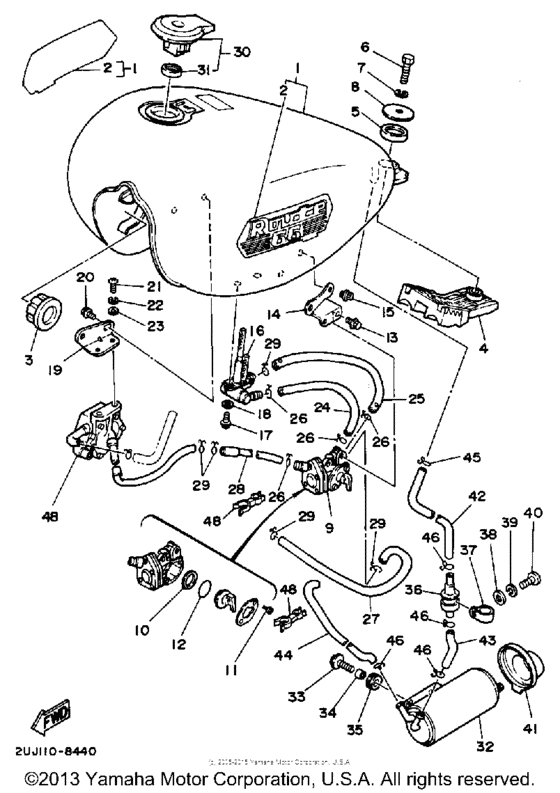

Fuel tank (Calinia) Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3BG-24110-00-03
Fuel Tank
UR MELTING BLACK |
3BG-24110-00-03 |
— | ||
|
1
|
1
3BG-24110-00-05
Fuel Tank
|
3BG-24110-00-05 |
— | ||
|
2
|
2
2UJ-24161-00-00
Emblem 1
|
2UJ-24161-00-00 |
— | ||
|
3
|
3
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
|
4
|
4
2UJ-24182-00-00 Damper, Locating 2 |
2UJ-24182-00-00 |
from US $16.15 |
||
|
5
|
5
42X-24183-00-00 Damper, Locating 3 |
42X-24183-00-00 |
from US $1.42 |
||
|
6
|
6
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
6
|
6
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
8
|
8
90201-08569-00 Washer, Plate |
90201-08569-00 |
from US $1.98 |
||
|
9
|
9
2UJ-24500-00-00 Fuel Cock Assy 1 |
2UJ-24500-00-00 |
from US $72.40 |
||
| replacement | |||||
|
9
|
9
2UJ-24500-10-00 Fuel Cock Assy 1 |
2UJ-24500-10-00 |
from US $72.40 |
||
|
10
|
10
3H3-24523-00-00 Valve |
3H3-24523-00-00 |
from US $17 |
||
|
11
|
11
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
12
|
12
1JK-24534-00-00 Seal, Cock |
1JK-24534-00-00 |
from US $3.54 |
||
|
13
|
13
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
14
|
14
2UJ-24544-00-00 Bracket, Fuel Cock |
2UJ-24544-00-00 |
from US $15.02 |
||
| replacement | |||||
|
14
|
14
2UJ-24544-01-00 Bracket, Fuel Cock |
2UJ-24544-01-00 |
from US $15.02 |
||
|
15
|
15
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
16
|
16
2UJ-24560-00-00 Filter Assy |
2UJ-24560-00-00 |
from US $27.77 |
||
| replacement | |||||
|
16
|
16
2UJ-24560-10-00 Filter Assy |
2UJ-24560-10-00 |
from US $27.77 |
||
|
17
|
17
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
18
|
18
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
19
|
19
2UJ-24491-00-00 Bracket, Fuel Pump |
2UJ-24491-00-00 |
from US $6.52 |
||
| replacement | |||||
|
19
|
19
2UJ-24491-01-00 Bracket, Fuel Pump |
2UJ-24491-01-00 |
from US $6.52 |
||
|
20
|
20
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
21
|
21
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
904-45115-01-00
Hose (L400)
|
904-45115-01-00 |
— | ||
| replacement | |||||
|
24
|
24
90445-116K9-00 Hose (L400)Hose (l400) |
90445-116K9-00 |
from US $15.44 |
||
|
25
|
25
90445-11754-00 Hose (L400) |
90445-11754-00 |
from US $11.76 |
||
| replacement | |||||
|
25
|
25
90445-116K9-00 Hose (L400)Hose (l400) |
90445-116K9-00 |
from US $15.44 |
||
|
26
|
26
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
26
|
26
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
26
|
26
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
27
|
27
2UJ-24312-00-00 Pipe 2 |
2UJ-24312-00-00 |
from US $12.89 |
||
| replacement | |||||
|
27
|
27
2UJ-24312-01-00 Pipe 2 |
2UJ-24312-01-00 |
from US $12.89 |
||
|
28
|
28
2UJ-24313-00-00 Pipe 3 |
2UJ-24313-00-00 |
from US $13.46 |
||
|
29
|
29
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
29
|
29
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
29
|
29
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
30
|
30
20K-24602-02-00
Cap Assy
|
20K-24602-02-00 |
— | ||
| replacement | |||||
|
30
|
30
20K-24602-10-00 Cap Assy |
20K-24602-10-00 |
from US $99.34 |
||
|
31
|
31
4X7-24612-00-00 Packing, Cap |
4X7-24612-00-00 |
from US $25.22 |
||
|
32
|
32
3BG-24170-00-00 Canister Assembly |
3BG-24170-00-00 |
US $351.81 |
||
|
33
|
33
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
34
|
34
90387-062M5-00 Collar |
90387-062M5-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
90387-0600V-00 Collar(4Dn) |
90387-0600V-00 |
from US $1.70 |
||
|
35
|
35
90480-14323-00 Grommet |
90480-14323-00 |
from US $1.84 |
||
| replacement | |||||
|
35
|
35
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.84 |
||
|
36
|
36
25H-24180-00-00 Roll Over Valve Assy |
25H-24180-00-00 |
from US $32.89 |
||
