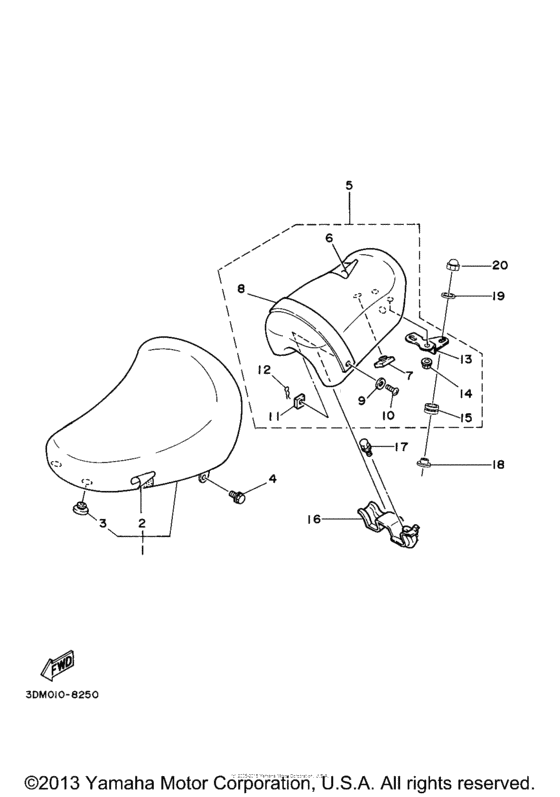

Seat Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-24710-00-00 Single Seat Assy |
2UJ-24710-00-00 |
from US $198.95 |
||
| replacement | |||||
|
1
|
1
2UJ-24710-01-00 |
2UJ-24710-01-00 |
from US $198.95 |
||
|
2
|
2
2UJ-24731-00-00 Cover, Seat |
2UJ-24731-00-00 |
from US $83.17 |
||
| replacement | |||||
|
2
|
2
2UJ-24731-01-00 |
2UJ-24731-01-00 |
US $124.18 |
||
|
3
|
3
18A-24724-00-00 Damper, Seat |
18A-24724-00-00 |
from US $3.12 |
||
|
4
|
4
95816-06016-00 Bolt, Flange(52G) |
95816-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
5
|
5
2UJ-24750-00-00 Tandem Seat Assy |
2UJ-24750-00-00 |
from US $149.85 |
||
| replacements | |||||
|
5
|
5
2UJ-24750-10-00 Tandem Seat Assy |
2UJ-24750-10-00 |
from US $131.63 |
||
|
5
|
5
2UJ-24750-11-00 |
2UJ-24750-11-00 |
from US $121 |
||
|
6
|
6
2UJ-24751-00-00 Cover, Tandem Seat |
2UJ-24751-00-00 |
from US $81.40 |
||
|
7
|
7
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
8
|
8
2UJ-24754-00-00 Band, Seat |
2UJ-24754-00-00 |
from US $19.68 |
||
| replacement | |||||
|
8
|
8
2UJ-24734-00-00 Band, Seat |
2UJ-24734-00-00 |
from US $15.82 |
||
|
9
|
9
1WG-24712-00-00 Plate |
1WG-24712-00-00 |
US $5.24 |
||
|
10
|
10
47X-24739-00-00 Bolt, Seat Fitting |
47X-24739-00-00 |
from US $5.53 |
||
|
11
|
11
90173-06015-00 Nut, Square |
90173-06015-00 |
from US $1.98 |
||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
2UJ-2475J-00-00 Bracket, Seat Lever2 |
2UJ-2475J-00-00 |
from US $8.78 |
||
|
14
|
14
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
15
|
15
5YS-24742-00-00 Grommet |
5YS-24742-00-00 |
from US $1.65 |
||
|
16
|
16
2UJ-2475H-00-00 Bracket, Seat Lever 1 |
2UJ-2475H-00-00 |
from US $21.96 |
||
|
17
|
17
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
18
|
18
5YS-2471N-00-00 Collar, 1 |
5YS-2471N-00-00 |
from US $7.23 |
||
|
19
|
19
90201-08042-00 Washer, Plain |
90201-08042-00 |
from US $2.55 |
||
|
20
|
20
90176-08001-00 Nut, Cap |
90176-08001-00 |
from US $4.53 |
||
