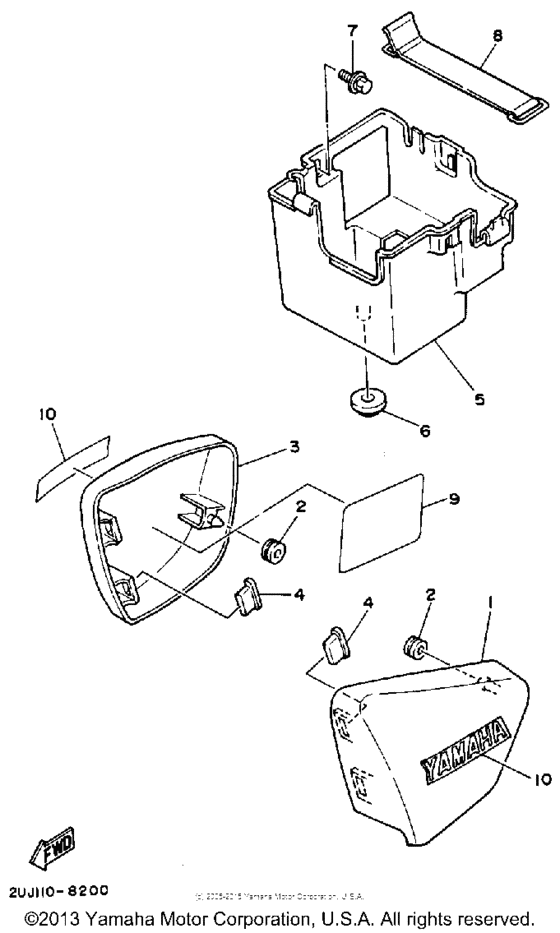

Side cover Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-21711-00-0H
Cover, Side 1Black
1BLACK UR MELTING |
2UJ-21711-00-0H |
— | ||
|
1
|
1
2UJ-21711-00-TH Cover, Side 1 |
2UJ-21711-00-TH |
US $82.94 |
||
|
2
|
2
904-80134-28-00 Grommet(80K) |
904-80134-28-00 |
from US $2.41 |
||
|
3
|
3
2UJ-21721-00-TH
Cover, Side 2
|
2UJ-21721-00-TH |
— | ||
|
3
|
3
2UJ-21721-00-0H
Cover, Side 2Black
2BLACK UR MELTING |
2UJ-21721-00-0H |
— | ||
|
4
|
4
2N4-21717-00-00 Damper |
2N4-21717-00-00 |
from US $3.40 |
||
|
5
|
5
2UJ-2177G-00-00 Box, Battery |
2UJ-2177G-00-00 |
from US $37.58 |
||
|
6
|
6
90480-22362-00 Grommet |
90480-22362-00 |
from US $2.55 |
||
|
7
|
7
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
8
|
8
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
9
|
9
3BG-2179N-00-00
Plate, Epa Cal
|
3BG-2179N-00-00 |
— | ||
|
9
|
9
2UJ-2179V-00-00
Plate, Epa U49
U49 |
2UJ-2179V-00-00 |
— | ||
|
10
|
10
99235-00020-00 Emblem, Yamaha |
99235-00020-00 |
from US $9.77 |
||
| replacement | |||||
|
10
|
10
99245-00080-00 Emblem, Yamaha |
99245-00080-00 |
from US $10.06 |
||
