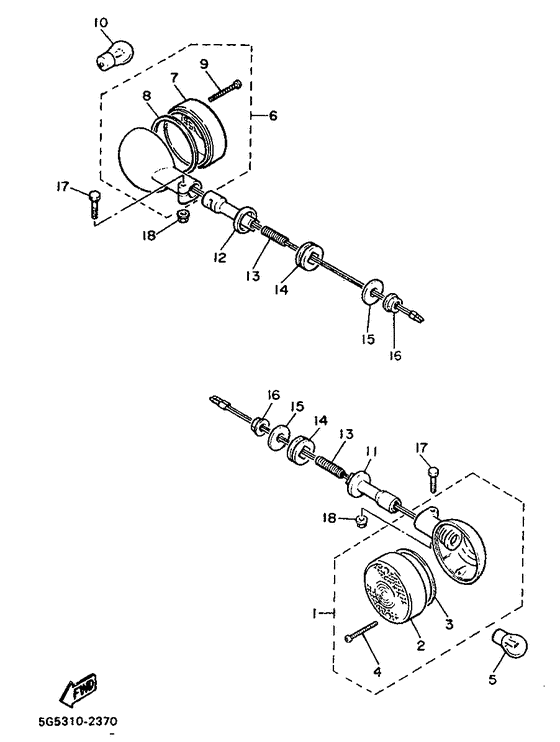

Flasher light Diagram Yamaha XV500 Virago
- Year
- 1987
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 26R
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XV500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5A6-83310-G0-00
Front Flasher Light Assy 1
|
5A6-83310-G0-00 |
— | ||
|
02
|
02
4H7-83312-00-00 Lens, Flasher |
4H7-83312-00-00 |
from US $14.40 |
||
|
03
|
03
4H7-83313-00-00 Gasket, Flasher Lens |
4H7-83313-00-00 |
from US $1.53 |
||
| replacement | |||||
|
03
|
03
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
04
|
04
98501-03030-00 Screw, Pan Head |
98501-03030-00 |
from US $1.21 |
||
| replacements | |||||
|
04
|
04
98502-03530-00 Screw, Pan Head |
98502-03530-00 |
from US $1.21 |
||
|
04
|
04
98507-03030-00 Screw, Pan Head |
98507-03030-00 |
from US $0.47 |
||
|
06
|
06
5A8-83330-G0-00
Rear Flasher Light Assy 1
|
5A8-83330-G0-00 |
— | ||
| replacement | |||||
|
06
|
06
2YL-83330-G0-00
Rear Flasher Light Assy 1
|
2YL-83330-G0-00 |
— | ||
|
07
|
07
5A8-83332-00-00
Lens, Flasher
|
5A8-83332-00-00 |
— | ||
|
08
|
08
4H7-83313-00-00 Gasket, Flasher Lens |
4H7-83313-00-00 |
from US $1.53 |
||
| replacement | |||||
|
08
|
08
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
09
|
09
98501-03030-00 Screw, Pan Head |
98501-03030-00 |
from US $1.21 |
||
| replacements | |||||
|
09
|
09
98502-03530-00 Screw, Pan Head |
98502-03530-00 |
from US $1.21 |
||
|
09
|
09
98507-03030-00 Screw, Pan Head |
98507-03030-00 |
from US $0.47 |
||
|
11
|
11
4X7-83328-00-00 Stay, Flasher 2 |
4X7-83328-00-00 |
from US $13.46 |
||
|
12
|
12
5A6-83318-00-00
Stay, Flasher 1
|
5A6-83318-00-00 |
— | ||
|
13
|
13
4X7-83325-00-00
Blt, Flshr Sty Ftng
|
4X7-83325-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
341-83321-01-00 Damper, Flasher 1 |
341-83321-01-00 |
from US $2.69 |
||
|
15
|
15
90201-127A1-00 Washer, Plate |
90201-127A1-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-12588-00 Washer, Plate |
90201-12588-00 |
from US $1.70 |
||
|
16
|
16
95706-12100-00 Nut, With Washer |
95706-12100-00 |
from US $1.98 |
||
| replacements | |||||
|
16
|
16
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
16
|
16
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
17
|
17
97303-06030-00 Bolt |
97303-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
17
|
17
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
18
|
18
95701-06100-00 Nut, With Washer |
95701-06100-00 |
from US $1.13 |
||
| replacement | |||||
|
18
|
18
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
