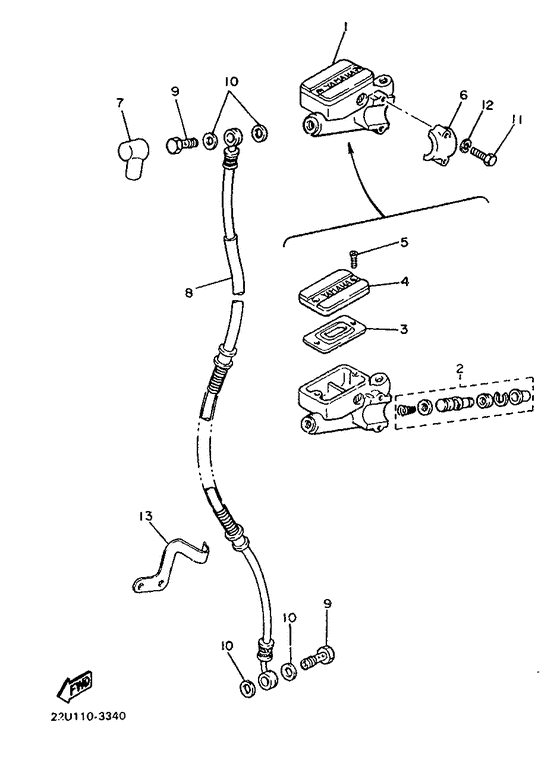

Front master cylinder Diagram Yamaha XV500 Virago
- Year
- 1987
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 26R
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XV500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22U-25850-00-00 Master Cylinder Assy |
22U-25850-00-00 |
from US $189.28 |
||
| replacement | |||||
|
01
|
01
2UJ-25870-00-00 Master Cylinder Sub Assy |
2UJ-25870-00-00 |
from US $189.28 |
||
|
02
|
02
4L0-W0041-00-00 Cylinder Kit, Master |
4L0-W0041-00-00 |
from US $60.38 |
||
| replacement | |||||
|
02
|
02
23L-W0041-00-00 Cylinder Kit, Master |
23L-W0041-00-00 |
from US $60.38 |
||
|
03
|
03
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
04
|
04
4L0-25852-00-00 Cap, Reservoir |
4L0-25852-00-00 |
from US $22.10 |
||
| replacement | |||||
|
04
|
04
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
07
|
07
306-25862-00-00 Boot, Master Cylinder |
306-25862-00-00 |
from US $24.37 |
||
|
08
|
08
22U-25872-00-00 Hose, Brake 1 |
22U-25872-00-00 |
US $185.83 |
||
|
09
|
09
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
09
|
09
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
11
|
11
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
12
|
12
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
13
|
13
22U-25876-00-00
Holder, Brke Hose 2
|
22U-25876-00-00 |
— | ||
