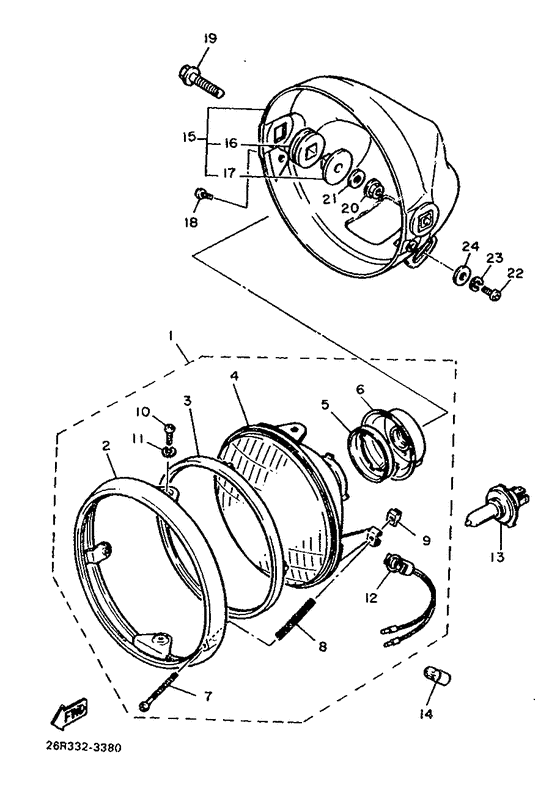

Headlight Diagram Yamaha XV500 Virago
- Year
- 1987
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 26R
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XV500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5G5-84303-G0-00
Headlight Unit Assy
|
5G5-84303-G0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
4X7-84315-00-00
Rim, Headlight
|
4X7-84315-00-00 |
— | ||
|
03
|
03
4X7-84395-00-00
Ring, Retaining
|
4X7-84395-00-00 |
— | ||
|
04
|
04
5G5-84321-G0-00
Lens Assy
|
5G5-84321-G0-00 |
— | ||
|
05
|
05
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
06
|
06
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
07
|
07
341-84331-60-00
Screw, Adjusting
|
341-84331-60-00 |
— | ||
| replacement | |||||
|
07
|
07
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
08
|
08
1A0-84332-60-00 Spring, Screw |
1A0-84332-60-00 |
from US $10.81 |
||
| replacement | |||||
|
08
|
08
447-84332-60-00 Spring, Screw |
447-84332-60-00 |
from US $10.75 |
||
|
09
|
09
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
10
|
10
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
10
|
10
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
457-84146-85-00 Socket, Pilot Light |
457-84146-85-00 |
US $21.11 |
||
| replacement | |||||
|
12
|
12
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
15
|
15
22U-84330-00-93
Body Assy
Chrome-plated |
22U-84330-00-93 |
— | ||
| replacement | |||||
|
15
|
15
22U-84330-00-00
Body Assembly
Chrome-plated |
22U-84330-00-00 |
— | ||
|
16
|
16
5G0-84153-20-00
Grommet, Wrhrnes
|
5G0-84153-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
584-84338-60-00 Collar, Body Ftng |
584-84338-60-00 |
from US $7.79 |
||
|
18
|
18
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
18
|
18
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
18
|
18
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
19
|
19
90105-08174-00 Bolt, Flange |
90105-08174-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.66 |
||
|
20
|
20
95702-08100-00 Nut, Flange |
95702-08100-00 |
from US $0.74 |
||
| replacements | |||||
|
20
|
20
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
20
|
20
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
20
|
20
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
|
20
|
20
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
21
|
21
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
21
|
21
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
22
|
22
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
23
|
23
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
