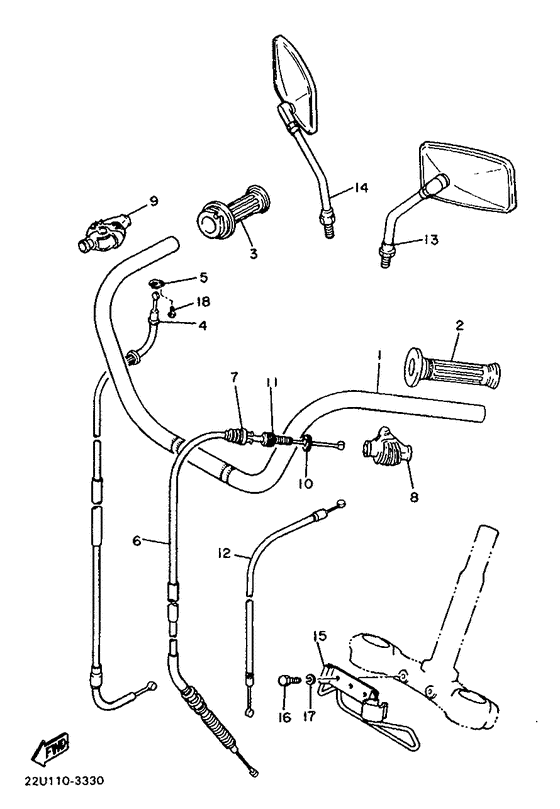

Steering handle & cable Diagram Yamaha XV500 Virago
- Year
- 1987
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 26R
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XV500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4X7-26111-01-00
Handlebar
|
4X7-26111-01-00 |
— | ||
|
02
|
02
2H7-26241-00-00 Grip Lh |
2H7-26241-00-00 |
from US $11.33 |
||
| replacement | |||||
|
02
|
02
2H7-26241-01-00 |
2H7-26241-01-00 |
from US $11.33 |
||
|
03
|
03
2H7-26240-00-00 Grip Assy, Rh |
2H7-26240-00-00 |
from US $17.60 |
||
| replacement | |||||
|
03
|
03
2H7-26240-01-00 |
2H7-26240-01-00 |
US $20.47 |
||
|
04
|
04
22U-26311-00-00
Cable, Throttle 1
|
22U-26311-00-00 |
— | ||
|
05
|
05
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
06
|
06
22U-26335-01-00
Cable, clutch
|
22U-26335-01-00 |
— | ||
|
07
|
07
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
08
|
08
11H-26372-00-00
Cover, Handle Lever
|
11H-26372-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
22U-26331-00-00
Cable, Starter 1
|
22U-26331-00-00 |
— | ||
| replacement | |||||
|
12
|
12
11U-26331-00-00
Cable, Starter 1
|
11U-26331-00-00 |
— | ||
|
13
|
13
4H7-26290-10-00
Mirror Asy Lh
|
4H7-26290-10-00 |
— | ||
| replacement | |||||
|
13
|
13
4H7-26290-20-00 Rear View Mirror Assy(Left) |
4H7-26290-20-00 |
from US $51.67 |
||
|
14
|
14
4H7-26290-00-00
Mirror Asy Rh
|
4H7-26290-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4H7-26290-50-00 Rear View Mirror Assy (Right) |
4H7-26290-50-00 |
from US $43.60 |
||
|
15
|
15
22U-26399-01-00
Guide, Cable
|
22U-26399-01-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
97306-06012-00 Bolt |
97306-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
16
|
16
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
17
|
17
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
18
|
18
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
