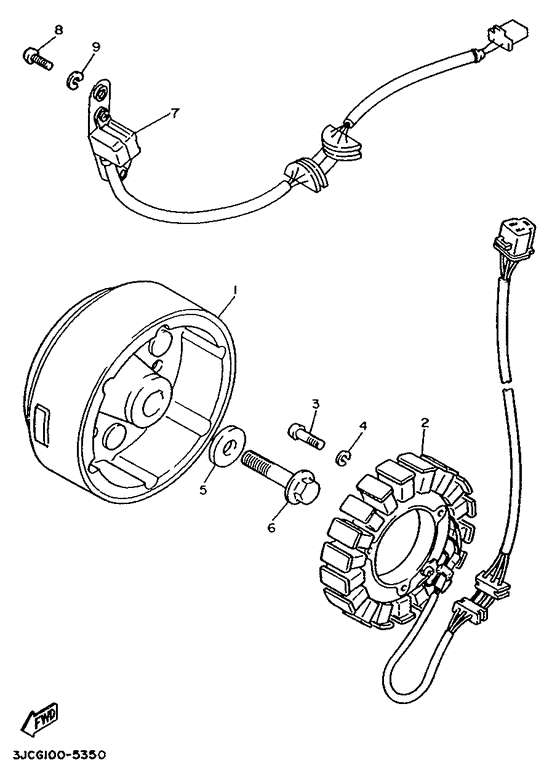

Generator Diagram Yamaha XV500 Virago
- Year
- 1995
- Colour
- New Black Blue (NBB; 00KM)
- Model code
- 4FT6
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XV500S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3BT-81450-00-00 Rotor Assembly |
3BT-81450-00-00 |
from US $394.18 |
||
|
02
|
02
2GV-81410-20-00 Stator Assembly |
2GV-81410-20-00 |
from US $444.66 |
||
|
03
|
03
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
03
|
03
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
04
|
04
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
05
|
05
902-01107-K6-00 Washer, Plate |
902-01107-K6-00 |
from US $9.42 |
||
|
06
|
06
90105-10152-00 Bolt, Flange |
90105-10152-00 |
from US $9.63 |
||
|
07
|
07
3BT-81670-00-00
Pick-Up Assembly
|
3BT-81670-00-00 |
— | ||
|
08
|
08
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
08
|
08
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
09
|
09
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
