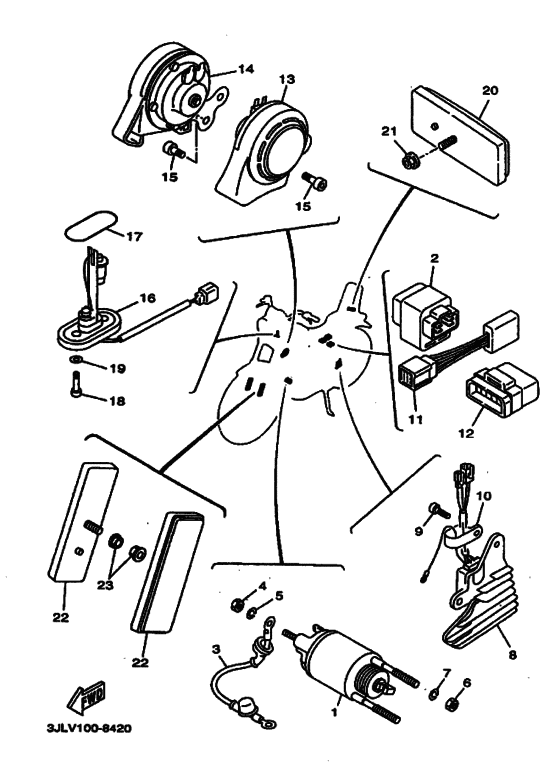

Electrical 2 Diagram Yamaha XV750 Virago
- Year
- 1998
- Colour
- Dark Purplish Red Cocktail 3 (DPRC3; 0567)
- Model code
- 3JLX
- Sales region
- Europe (010)
- Engine Capacity
- 750
- Color Variant
- B
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5A8-86110-50-00 Solenoid |
5A8-86110-50-00 |
from US $279.94 |
||
|
2
|
2
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
2
|
2
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $34.43 |
||
|
3
|
3
3JK-81815-00-00 Cord, Starter Motor |
3JK-81815-00-00 |
US $50.92 |
||
|
4
|
4
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
5
|
5
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
6
|
6
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
7
|
7
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
8
|
8
3LP-81960-01-00 Rectifier & Regulator Assembly |
3LP-81960-01-00 |
from US $170.67 |
||
|
9
|
9
97007-06014-00 Bolt |
97007-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
10
|
10
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
11
|
11
4U8-81980-M0-00 Diode Assy |
4U8-81980-M0-00 |
from US $57.89 |
||
|
12
|
12
41R-83350-71-00 Flasher Relay Assy |
41R-83350-71-00 |
from US $147.83 |
||
| replacement | |||||
|
12
|
12
41R-83350-72-00 Flasher Relay Assy |
41R-83350-72-00 |
from US $147.83 |
||
|
13
|
13
1RM-83371-00-00 Horn |
1RM-83371-00-00 |
US $160.27 |
||
|
14
|
14
1RM-83371-10-00 Horn |
1RM-83371-10-00 |
from US $109.94 |
||
| replacement | |||||
|
14
|
14
4NK-83371-00-00 Horn |
4NK-83371-00-00 |
from US $116.33 |
||
|
15
|
15
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
16
|
16
42X-85752-01-00
Sender Unit Assembly, Fuel Meter
|
42X-85752-01-00 |
— | ||
|
17
|
17
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.32 |
||
|
18
|
18
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
19
|
19
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
19
|
19
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
20
|
20
42X-85130-01-00 Rear Reflector Assembly (42X-85 |
42X-85130-01-00 |
from US $24.82 |
||
| replacement | |||||
|
20
|
20
2EN-85130-00-00 Rear Reflector Assembly (42X-85 |
2EN-85130-00-00 |
from US $24.82 |
||
|
21
|
21
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
22
|
22
42X-85110-00-00
Reflector Assembly
|
42X-85110-00-00 |
— | ||
|
23
|
23
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
