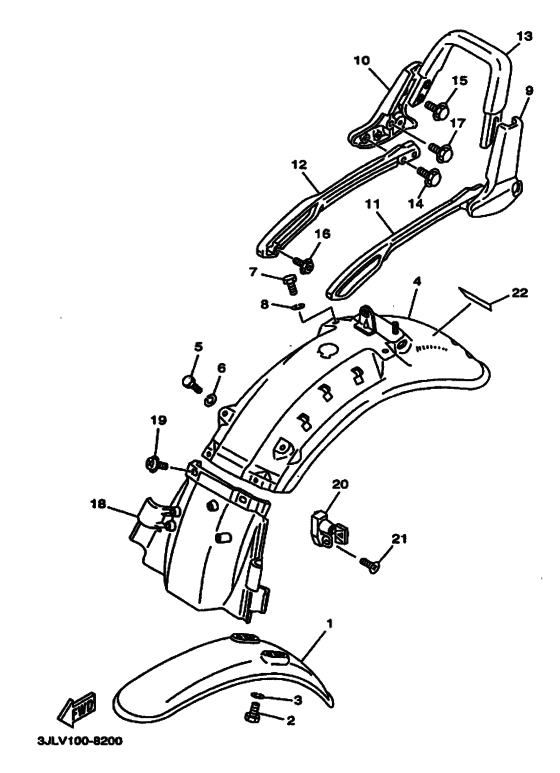

Fender Diagram Yamaha XV750 Virago
- Year
- 1998
- Colour
- Dark Purplish Red Cocktail 3 (DPRC3; 0567)
- Model code
- 3JLX
- Sales region
- Europe (010)
- Engine Capacity
- 750
- Color Variant
- B
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1MY-21510-00-PE
Front Fender Comp
UR DPRC3 |
1MY-21510-00-PE |
— | ||
|
2
|
2
970-27060-12-00
Bolt, Hexagon
|
970-27060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
4
|
4
1RM-21610-01-P7
Rear Fender Comp
UR DPRC3 |
1RM-21610-01-P7 |
— | ||
|
5
|
5
970-27060-12-00
Bolt, Hexagon
|
970-27060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
7
|
7
97027-08012-00 Bolt |
97027-08012-00 |
from US $2.41 |
||
|
8
|
8
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
9
|
9
1RM-2164F-00-00 Stay 1 |
1RM-2164F-00-00 |
US $269.42 |
||
|
10
|
10
1RM-2164G-00-00
Stay 2
|
1RM-2164G-00-00 |
— | ||
|
11
|
11
1RM-2164H-00-00
Stay 3
|
1RM-2164H-00-00 |
— | ||
|
12
|
12
1RM-2164J-00-00
Stay 4
|
1RM-2164J-00-00 |
— | ||
|
13
|
13
55R-2164A-02-00
Grip 1
|
55R-2164A-02-00 |
— | ||
|
14
|
14
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
15
|
15
95827-06016-00 Bolt, Flange |
95827-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
16
|
16
90149-08225-00
Screw
|
90149-08225-00 |
— | ||
| replacement | |||||
|
16
|
16
92017-08035-00 Bolt, Button Head |
92017-08035-00 |
from US $4.11 |
||
|
17
|
17
90105-10217-00 Bolt, Flange |
90105-10217-00 |
from US $6.94 |
||
| replacements | |||||
|
17
|
17
90105-10153-00 Bolt, Flange |
90105-10153-00 |
from US $6.94 |
||
|
17
|
17
95817-10022-00 Bolt, Flange(4Bd) |
95817-10022-00 |
from US $4.68 |
||
|
18
|
18
42X-21629-00-00
Guard, Mud
|
42X-21629-00-00 |
— | ||
|
19
|
19
90159-06128-00
Screw, With Washer
|
90159-06128-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
4R8-21308-00-00
Helmet Hanger Assy
|
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
20
|
20
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
21
|
21
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
22
|
22
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.79 |
||
| replacement | |||||
|
22
|
22
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.79 |
||
