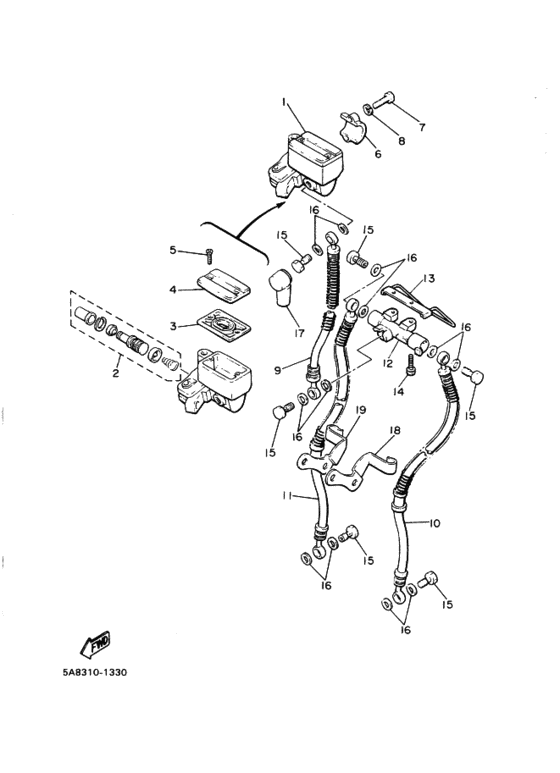

Front master cylinder Diagram Yamaha XV750 Virago
- Year
- 1982
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5K00
- Sales region
- Japan (010)
- Engine Capacity
- 750
- Color Variant
- A
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-25850-01-00 Master Cylinder Assembly |
4G0-25850-01-00 |
from US $441.94 |
||
|
2
|
2
4K0-W0041-00-00 Cylinder Kit,master．シリンダキツト，マスタ; |
4K0-W0041-00-00 |
from US $51.26 |
||
| replacement | |||||
|
2
|
2
4K0-W0041-50-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
4K0-W0041-50-00 |
from US $51.26 |
||
|
3
|
3
4K0-25854-00-00
Diaphragm, Reservoir
．ダイヤフラム，リザーバ; |
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4HM-25854-00-00 Diaphragm, Reservoir．ダイヤフラム，リザーバ; |
4HM-25854-00-00 |
from US $15.87 |
||
|
4
|
4
4G0-25852-00-00 Cap, Reservoir．キヤツプ，リザーバ; |
4G0-25852-00-00 |
US $25.79 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
．スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.34 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
5A8-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
5A8-25872-00-00 |
— | ||
| replacement | |||||
|
9
|
9
5H1-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
5H1-25872-00-00 |
— | ||
|
10
|
10
5A8-25873-00-00
Hose, Brake 2
ホース，ブレーキ ２; |
5A8-25873-00-00 |
— | ||
|
11
|
11
5A8-25874-00-00
Hose, Brake
ホース，ブレーキ; |
5A8-25874-00-00 |
— | ||
|
12
|
12
4K0-25885-00-00
Joint
|
4K0-25885-00-00 |
— | ||
|
13
|
13
4K0-26399-01-00
Guide, Cable
ガイド，ケーブル; |
4K0-26399-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
ガイド，ケーブル; |
999-99999-99-00 |
— | ||
|
14
|
14
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
15
|
15
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
16
|
16
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.28 |
||
|
17
|
17
4L0-25862-00-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
17
|
17
4L0-25862-01-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-01-00 |
from US $10.34 |
||
|
18
|
18
4E2-25875-00-00 Holder, Brke Hose 1ホルダ，ブレーキホース １; |
4E2-25875-00-00 |
US $32.62 |
||
|
19
|
19
4E2-25876-00-00
Holder, Brke Hose 2
ホルダ，ブレーキホース ２; |
4E2-25876-00-00 |
— | ||
