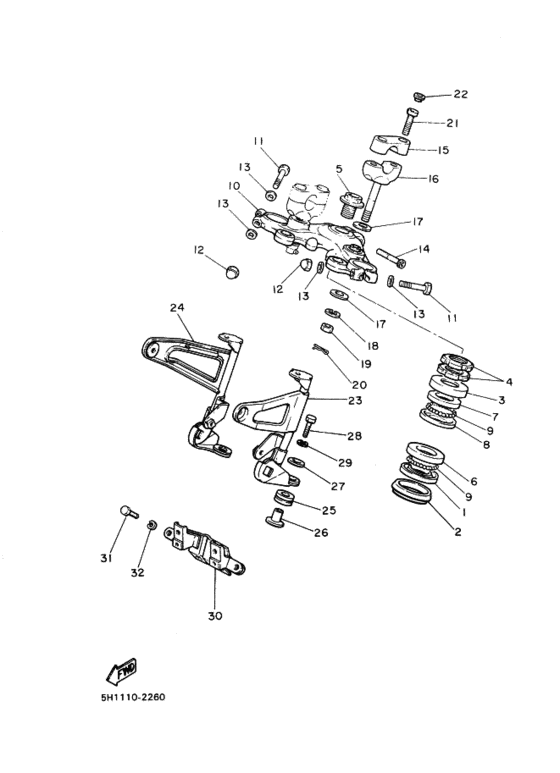

Steering Diagram Yamaha XV750 Virago
- Year
- 1982
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5K00
- Sales region
- Japan (010)
- Engine Capacity
- 750
- Color Variant
- A
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
256-23411-00-00 Race, Ball 1レース，ボール １; |
256-23411-00-00 |
from US $27.27 |
||
|
2
|
2
164-23462-00-00 Seal, Dustシール，ステアリング; |
164-23462-00-00 |
from US $4.25 |
||
|
3
|
3
4K0-23415-00-00 Cover, Ball Race 1カバー，ボールレース １; |
4K0-23415-00-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
136-23415-00-00 Cover, Ball Race 1カバー，ボールレース １; |
136-23415-00-00 |
from US $3.26 |
||
|
4
|
4
4H3-23454-00-00 Nut |
4H3-23454-00-00 |
from US $9.92 |
||
| replacements | |||||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
4H3-23451-00-00 Bolt, Fitting 1 |
4H3-23451-00-00 |
from US $8.44 |
||
| replacements | |||||
|
5
|
5
90105-14365-00 Bolt, Fitting 1 (4H3-23451-00) |
90105-14365-00 |
from US $9.78 |
||
|
5
|
5
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
6
|
6
256-23412-00-00 Race, Ball 2レース，ボール ２; |
256-23412-00-00 |
from US $39.93 |
||
|
7
|
7
256-23413-00-00 Race, Ball 3レース，ボール ３; |
256-23413-00-00 |
from US $39.93 |
||
|
8
|
8
256-23414-00-00 Race, Ball 4レース，ボール ４; |
256-23414-00-00 |
from US $39.93 |
||
|
9
|
9
93501-04011-00 Ballボール; |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recessボール; |
97D95-06016-00 |
from US $1.28 |
||
|
10
|
10
5A8-W2341-00-98
Crown, Handle
ツヤケシブラツク |
5A8-W2341-00-98 |
— | ||
|
11
|
11
97326-08055-00 Bolt |
97326-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
11
|
11
97017-08055-00 Bolt |
97017-08055-00 |
from US $4.68 |
||
|
12
|
12
95306-08800-00 Nut |
95306-08800-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
95307-08800-00 Nut |
95307-08800-00 |
from US $1.56 |
||
|
13
|
13
929-06086-00-00
Washer
ワツシヤ，プレート; |
929-06086-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
14
|
14
91316-08040-00 Bolt |
91316-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
91317-08040-00 Bolt |
91317-08040-00 |
from US $1.07 |
||
|
15
|
15
4H7-23441-00-98 Holder, Handle Upperツヤケシブラツク |
4H7-23441-00-98 |
from US $28.13 |
||
| replacement | |||||
|
15
|
15
4H7-23441-01-98 Holder, Handle Upperツヤケシブラツク |
4H7-23441-01-98 |
from US $29.89 |
||
|
16
|
16
3Y6-23442-00-98 Holder, Handle Lowerホルダ，ハンドルロワー; ツヤケシブラツク |
3Y6-23442-00-98 |
from US $35.85 |
||
|
17
|
17
902-01101-41-00
Washer, Plate
ワツシヤ，プレート; |
902-01101-41-00 |
— | ||
| replacement | |||||
|
17
|
17
90201-100A1-00 Washer, Plate (3J6)ワツシヤ，プレート; |
90201-100A1-00 |
from US $2.32 |
||
|
18
|
18
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
18
|
18
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.34 |
||
|
19
|
19
95301-10700-00 Nut |
95301-10700-00 |
US $7.37 |
||
| replacements | |||||
|
19
|
19
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
19
|
19
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
20
|
20
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
21
|
21
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
21
|
21
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
22
|
22
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
23
|
23
5A8-23121-00-00
Cover, Upper 1
カバー，アツパ １; |
5A8-23121-00-00 |
— | ||
|
24
|
24
5A8-23131-00-00
Cover, Upper 2
カバー，アツパ ２; |
5A8-23131-00-00 |
— | ||
|
25
|
25
90480-14101-00 Grommet |
90480-14101-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
26
|
26
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
26
|
26
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.56 |
||
|
27
|
27
90201-06552-00 Washer, Plateワツシヤ，プレート; |
90201-06552-00 |
from US $2.38 |
||
| replacement | |||||
|
27
|
27
90201-063J2-00 Washer, Plate(36Y)ワツシヤ，プレート; |
90201-063J2-00 |
from US $3.12 |
||
|
28
|
28
97306-06025-00 Bolt |
97306-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
29
|
29
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.93 |
||
|
30
|
30
5A8-23377-00-00
Bracket, Horn
ブラケツト，ホーン; |
5A8-23377-00-00 |
— | ||
|
31
|
31
97306-08020-00 Bolt |
97306-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
31
|
31
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
32
|
32
929-06081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06081-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
