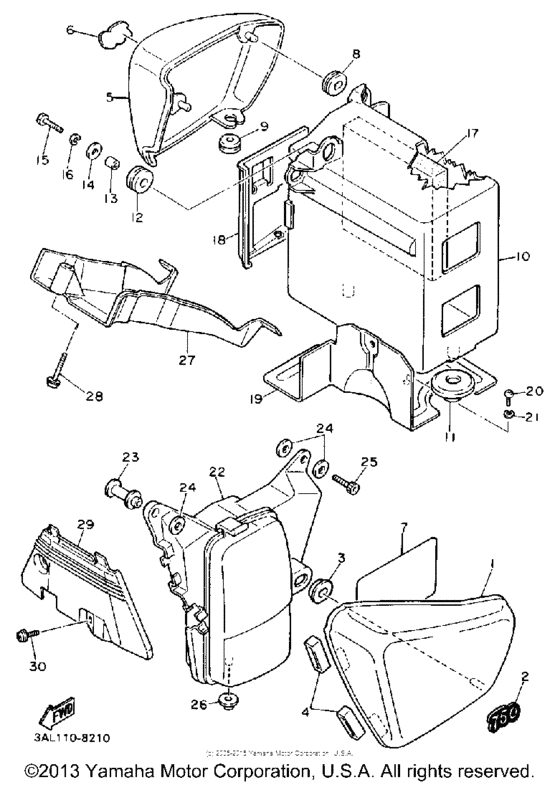

Side cover Diagram Yamaha XV750 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42X-21711-00-JW Cover, Side 1UR URUSHI BLK |
42X-21711-00-JW |
from US $67.70 |
||
|
1
|
1
42X-21711-00-R0 Cover Cover, Side 1UR GRACEFUL MAROON |
42X-21711-00-R0 |
US $101.90 |
||
|
2
|
2
3AL-21781-00-00 Emblem 1 |
3AL-21781-00-00 |
US $67.18 |
||
|
3
|
3
90480-01401-00 Grommet (41Y)41Y |
90480-01401-00 |
from US $2.83 |
||
|
4
|
4
466-21717-00-00 Damper |
466-21717-00-00 |
from US $9.49 |
||
|
5
|
5
42X-21721-00-R0
Cover, Side 2
UR GRACEFUL MAROON |
42X-21721-00-R0 |
— | ||
|
5
|
5
42X-21721-00-JW Cover, Side 2UR URUSHI BLK |
42X-21721-00-JW |
from US $67.70 |
||
|
6
|
6
3AL-21781-00-00 Emblem 1 |
3AL-21781-00-00 |
US $67.18 |
||
|
7
|
7
3JL-2179R-00-00
Plate, Epa Cal 2
|
3JL-2179R-00-00 |
— | ||
|
7
|
7
3JL-2179V-00-00
Plate, Epa U49
U49 UR NON CALIF. |
3JL-2179V-00-00 |
— | ||
|
8
|
8
90480-01401-00 Grommet (41Y)41Y |
90480-01401-00 |
from US $2.83 |
||
|
9
|
9
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.70 |
||
|
10
|
10
42X-21171-00-00
Box
|
42X-21171-00-00 |
— | ||
|
11
|
11
90480-20384-00 Grommet |
90480-20384-00 |
from US $3.12 |
||
|
12
|
12
90480-16233-00 Grommet (2N3) |
90480-16233-00 |
from US $1.98 |
||
|
13
|
13
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
13
|
13
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
14
|
14
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
15
|
15
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
42X-21746-00-00
Damper
|
42X-21746-00-00 |
— | ||
|
18
|
18
42X-28185-00-00
Lid
|
42X-28185-00-00 |
— | ||
|
19
|
19
42X-2172W-02-00 Cover |
42X-2172W-02-00 |
US $55.94 |
||
|
20
|
20
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
20
|
20
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
42X-2177A-00-00
Box
|
42X-2177A-00-00 |
— | ||
| replacement | |||||
|
22
|
22
42X-2177A-01-00
Box
|
42X-2177A-01-00 |
— | ||
|
23
|
23
90560-06258-00 Spacer |
90560-06258-00 |
from US $17.64 |
||
|
24
|
24
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
24
|
24
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
24
|
24
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
25
|
25
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
26
|
26
90480-10408-00 Grommet |
90480-10408-00 |
from US $1.84 |
||
|
27
|
27
42X-2176E-00-00
Plate
|
42X-2176E-00-00 |
— | ||
|
28
|
28
90159-06110-00 Screw, With Washer |
90159-06110-00 |
US $3 |
||
|
29
|
29
42X-2117F-00-00
Cover
|
42X-2117F-00-00 |
— | ||
|
30
|
30
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
30
|
30
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
30
|
30
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
