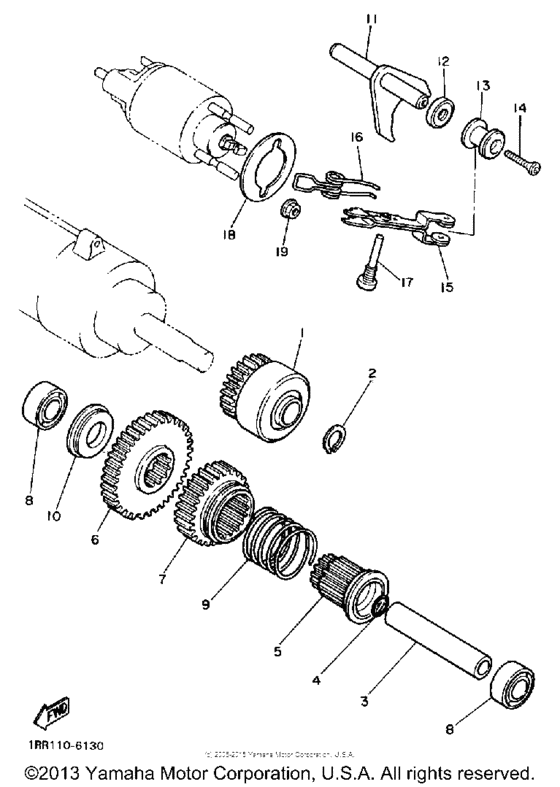

Starter clutch Diagram Yamaha XV750 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XV750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LP-15570-00-00 Starter Clutch Assembly |
3LP-15570-00-00 |
from US $443.30 |
||
|
2
|
2
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
3
|
3
4X7-15521-00-00
Shaft 1
|
4X7-15521-00-00 |
— | ||
|
4
|
4
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
4
|
4
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
5
|
5
5A8-15524-00-00
Wheel, Starter
23T |
5A8-15524-00-00 |
— | ||
| replacement | |||||
|
5
|
5
3LP-W1551-00-00 Gear, Idler Set23T |
3LP-W1551-00-00 |
from US $239.02 |
||
|
6
|
6
1TA-15512-00-00
Gear, Idler 1
|
1TA-15512-00-00 |
— | ||
|
7
|
7
5A8-15517-00-00
Gear Idler Set
|
5A8-15517-00-00 |
— | ||
| replacement | |||||
|
7
|
7
3LP-W1551-00-00 Gear, Idler Set |
3LP-W1551-00-00 |
from US $239.02 |
||
|
8
|
8
903-87172-E5-00 Collar |
903-87172-E5-00 |
from US $28.48 |
||
|
9
|
9
905-01156-36-00 Spring, Compression |
905-01156-36-00 |
from US $5.53 |
||
|
10
|
10
903-87170-E5-00 Collar |
903-87170-E5-00 |
from US $15.58 |
||
|
11
|
11
5A8-15550-00-00
Drive Lever Assembly
|
5A8-15550-00-00 |
— | ||
|
12
|
12
93102-10247-00 Oil Seal |
93102-10247-00 |
from US $4.82 |
||
|
13
|
13
5A8-15542-01-00
Collar 2
|
5A8-15542-01-00 |
— | ||
|
14
|
14
90151-06013-00 Screw, Countersunk |
90151-06013-00 |
from US $1.70 |
||
|
15
|
15
5A8-15556-00-00
Lever, Drive
|
5A8-15556-00-00 |
— | ||
|
16
|
16
905-08264-94-00
Spring, Torsion
|
905-08264-94-00 |
— | ||
|
17
|
17
90149-08166-00 Screw |
90149-08166-00 |
from US $5.24 |
||
|
18
|
18
3EG-15568-00-00 Gasket |
3EG-15568-00-00 |
from US $8.78 |
||
|
19
|
19
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
