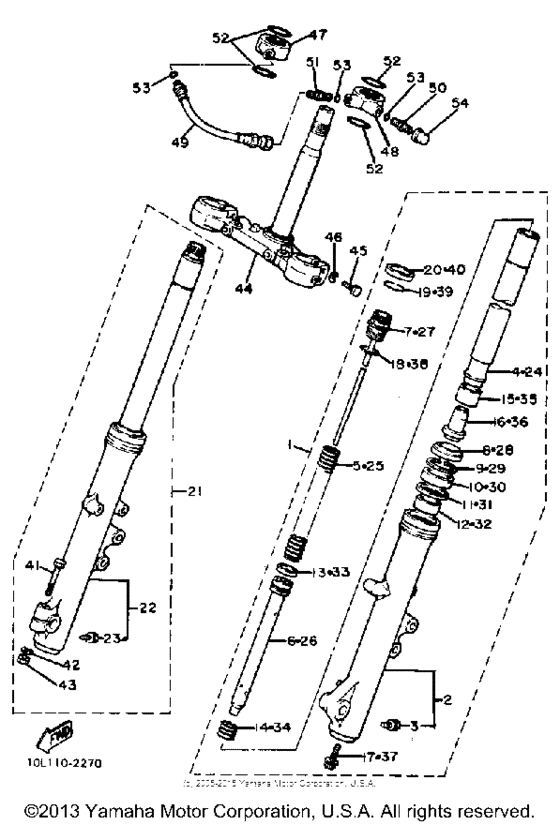

Front fork Diagram Yamaha XV920
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10L-23102-00-00
Front Fork Assembly L
|
10L-23102-00-00 |
— | ||
|
2
|
2
10L-23126-00-00
Tube, Outer 1
|
10L-23126-00-00 |
— | ||
|
3
|
3
10M-23119-00-00
Plug, Drain
|
10M-23119-00-00 |
— | ||
|
4
|
4
10L-23110-00-00
Inner Tube 1
|
10L-23110-00-00 |
— | ||
|
5
|
5
10L-23141-00-00
Spring, Front Fork
|
10L-23141-00-00 |
— | ||
|
6
|
6
10L-23170-00-00
Cylinder, Frtfrk
|
10L-23170-00-00 |
— | ||
|
7
|
7
10L-23111-00-00
Bolt, Cap
|
10L-23111-00-00 |
— | ||
|
8
|
8
1KH-23144-00-00 Seal, Dust |
1KH-23144-00-00 |
from US $21.39 |
||
|
9
|
9
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
10
|
10
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
11
|
11
1KH-23147-00-00 Seal, Spacer |
1KH-23147-00-00 |
from US $9.07 |
||
|
12
|
12
5G2-23125-00-00
Metal, Slide 1
|
5G2-23125-00-00 |
— | ||
|
13
|
13
1T4-23157-01-00
Ring, Piston Front Fork (2F3-
2F3- |
1T4-23157-01-00 |
— | ||
|
14
|
14
10M-23151-00-00
Spring, Rebound
|
10M-23151-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
3H3-23135-00-00 Metal, Slide 2 |
3H3-23135-00-00 |
US $54.18 |
||
|
16
|
16
10M-23166-00-00
Spacer, Oil Lock
|
10M-23166-00-00 |
— | ||
|
17
|
17
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
18
|
18
3H3-23114-00-00
Gasket
|
3H3-23114-00-00 |
— | ||
|
19
|
19
5G2-23153-00-00
Ring, Snap
|
5G2-23153-00-00 |
— | ||
|
20
|
20
5G2-23163-00-00
Gasket
|
5G2-23163-00-00 |
— | ||
|
21
|
21
10L-23103-00-00
Front Fork Assembly R
|
10L-23103-00-00 |
— | ||
|
22
|
22
10L-23136-00-00 Tube, Outer 2 |
10L-23136-00-00 |
US $317.21 |
||
|
23
|
23
10M-23119-00-00
Plug, Drain
|
10M-23119-00-00 |
— | ||
|
24
|
24
10L-23110-00-00
Inner Tube 1
|
10L-23110-00-00 |
— | ||
|
25
|
25
10L-23141-00-00
Spring, Front Fork
|
10L-23141-00-00 |
— | ||
|
26
|
26
10L-23170-00-00
Cylinder, Frtfrk
|
10L-23170-00-00 |
— | ||
|
27
|
27
10L-23111-00-00
Bolt, Cap
|
10L-23111-00-00 |
— | ||
|
28
|
28
1KH-23144-00-00 Seal, Dust |
1KH-23144-00-00 |
from US $21.39 |
||
|
29
|
29
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
30
|
30
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
31
|
31
1KH-23147-00-00 Seal, Spacer |
1KH-23147-00-00 |
from US $9.07 |
||
|
32
|
32
5G2-23125-00-00
Metal, Slide 1
|
5G2-23125-00-00 |
— | ||
|
33
|
33
1T4-23157-01-00
Ring, Piston Front Fork (2F3-
2F3- |
1T4-23157-01-00 |
— | ||
|
34
|
34
10M-23151-00-00
Spring, Rebound
|
10M-23151-00-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
3H3-23135-00-00 Metal, Slide 2 |
3H3-23135-00-00 |
US $54.18 |
||
|
36
|
36
10M-23166-00-00
Spacer, Oil Lock
|
10M-23166-00-00 |
— | ||
|
37
|
37
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
38
|
38
3H3-23114-00-00
Gasket
|
3H3-23114-00-00 |
— | ||
|
39
|
39
5G2-23153-00-00
Ring, Snap
|
5G2-23153-00-00 |
— | ||
|
40
|
40
5G2-23163-00-00
Gasket
|
5G2-23163-00-00 |
— | ||
|
41
|
41
2G2-23128-00-00 Bolt |
2G2-23128-00-00 |
from US $1.84 |
||
| replacement | |||||
|
41
|
41
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
92811-08200-00
Nut (Crown/slot)
|
92811-08200-00 |
— | ||
|
44
|
44
10L-23340-00-00
Under Bracket
|
10L-23340-00-00 |
— | ||
|
45
|
45
3J3-23346-00-00
Bolt 1
|
3J3-23346-00-00 |
— | ||
|
46
|
46
3J3-23159-00-00
Washer, Spring Lwr
|
3J3-23159-00-00 |
— | ||
|
47
|
47
10L-2319A-00-00
Joint, Air
|
10L-2319A-00-00 |
— | ||
|
48
|
48
10L-2318A-00-00
Joint, Air 1
|
10L-2318A-00-00 |
— | ||
|
49
|
49
10L-2318F-00-00
Hose, Air
|
10L-2318F-00-00 |
— | ||
|
50
|
50
5K7-23190-00-00 Air Valve |
5K7-23190-00-00 |
US $57.87 |
||
|
51
|
51
10M-2318E-00-00
Connector
|
10M-2318E-00-00 |
— | ||
|
52
|
52
5G2-23188-00-00
O-Ring
|
5G2-23188-00-00 |
— | ||
|
53
|
53
3H3-23147-00-00 O-Ring |
3H3-23147-00-00 |
from US $1.84 |
||
| replacement | |||||
|
53
|
53
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
54
|
54
5K7-23184-00-00
Cap, Air Valve
|
5K7-23184-00-00 |
— | ||
