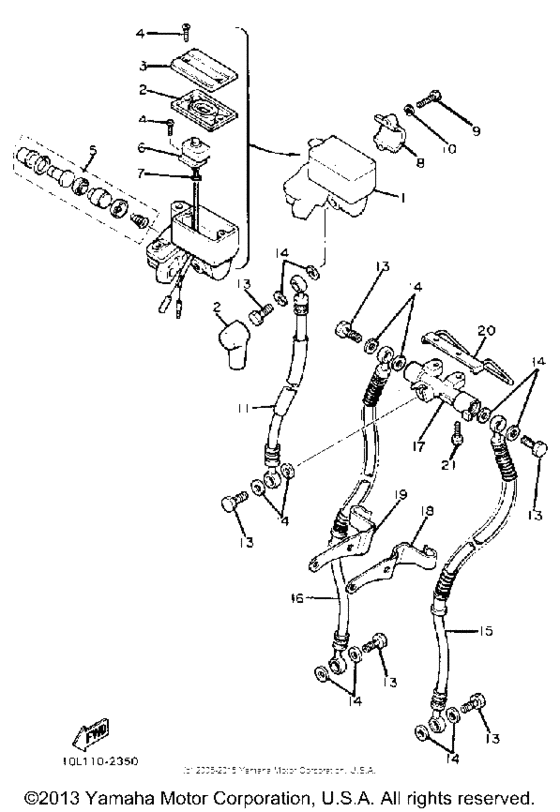

Front master cylinder Diagram Yamaha XV920
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10L-25850-00-00
Mstr Cylinder Assembly
|
10L-25850-00-00 |
— | ||
|
2
|
2
4K0-25854-00-00
Diaphragm, Reservoir
|
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
3
|
3
3GM-25852-01-00
Cap, Reservoir
|
3GM-25852-01-00 |
— | ||
| replacement | |||||
|
3
|
3
3GM-25852-02-00 Cap, Reservoir |
3GM-25852-02-00 |
from US $15.84 |
||
|
4
|
4
98706-04010-00 Screw, Flat Head |
98706-04010-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
5
|
5
4K0-W0041-50-00 Cylinder Kit, Master |
4K0-W0041-50-00 |
from US $51.26 |
||
|
6
|
6
10M-85702-00-00
Lead Switch Assembly (10L-857
10L-857 |
10M-85702-00-00 |
— | ||
|
7
|
7
93210-08493-00
O-Ring
|
93210-08493-00 |
— | ||
|
8
|
8
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
9
|
9
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
11
|
11
10L-25872-01-00
Hose, Brake 1
|
10L-25872-01-00 |
— | ||
|
12
|
12
306-25862-00-00 Boot, Master Cylinder |
306-25862-00-00 |
from US $24.37 |
||
|
13
|
13
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
14
|
14
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
15
|
15
10L-25873-01-00
Hose, Brake 2
|
10L-25873-01-00 |
— | ||
|
16
|
16
10L-25874-01-00
Hose, Brake
|
10L-25874-01-00 |
— | ||
|
17
|
17
4K0-25885-00-00
Joint
|
4K0-25885-00-00 |
— | ||
|
18
|
18
10M-25875-00-00
Holder, Brke Hose 1
|
10M-25875-00-00 |
— | ||
|
19
|
19
10M-25876-00-00
Holder, Brke Hose 2
|
10M-25876-00-00 |
— | ||
|
20
|
20
4K0-26399-01-00
Guide, Cable
|
4K0-26399-01-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
