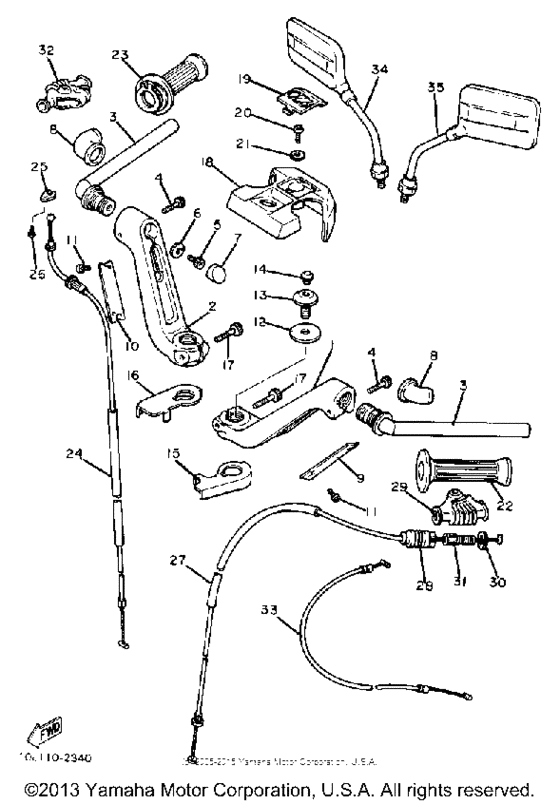

Handlebar cable Diagram Yamaha XV920
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10L-26121-00-00
Handlebar Lh
LH |
10L-26121-00-00 |
— | ||
|
2
|
2
10L-26122-00-00
Handlebar Rh
RH |
10L-26122-00-00 |
— | ||
|
3
|
3
10M-26112-00-00
Bar, Handle
|
10M-26112-00-00 |
— | ||
|
4
|
4
901-10060-50-00
Bolt, Hex Skt Head
|
901-10060-50-00 |
— | ||
|
5
|
5
90110-06145-00 Bolt, Hexagon Socket Head |
90110-06145-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
|
6
|
6
902-01067-E6-00 Washer, Plate |
902-01067-E6-00 |
from US $2.69 |
||
| replacement | |||||
|
6
|
6
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
7
|
7
10L-26133-00-00
Cap
|
10L-26133-00-00 |
— | ||
|
8
|
8
10M-26147-00-00
Boot, Handlebar
|
10M-26147-00-00 |
— | ||
|
9
|
9
10L-26144-00-00
Cover, Hdlbr Lwr 1
|
10L-26144-00-00 |
— | ||
|
10
|
10
10L-26146-00-00
Cover, Hdlbr Lwr 2
|
10L-26146-00-00 |
— | ||
|
11
|
11
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
12
|
12
90201-080F2-00
Washer, Plate
|
90201-080F2-00 |
— | ||
|
13
|
13
10L-26116-00-00
Bolt, Handlebar 1
|
10L-26116-00-00 |
— | ||
|
14
|
14
10L-23469-00-00 Cap, Bolt |
10L-23469-00-00 |
from US $4.25 |
||
|
15
|
15
10L-26143-00-00
Cover, Hdlbr Upr 1
|
10L-26143-00-00 |
— | ||
|
16
|
16
10L-26145-00-00
Cover, Hdlbr Upr 2
|
10L-26145-00-00 |
— | ||
|
17
|
17
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
17
|
17
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
18
|
18
10L-26213-00-00
Cover, Upper
|
10L-26213-00-00 |
— | ||
|
19
|
19
10L-26216-00-00
Cap, Handlebar Cvr
|
10L-26216-00-00 |
— | ||
|
20
|
20
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
20
|
20
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
21
|
21
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
22
|
22
5G2-26241-10-00
Grip Lh
LH |
5G2-26241-10-00 |
— | ||
|
23
|
23
5G2-26240-10-00
Grip Assembly Rh
RH |
5G2-26240-10-00 |
— | ||
|
24
|
24
11U-26311-00-00
Cable, Throttle 1
|
11U-26311-00-00 |
— | ||
|
25
|
25
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
26
|
26
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
26
|
26
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
27
|
27
23W-26335-10-00 Cable, clutch |
23W-26335-10-00 |
US $48.06 |
||
|
28
|
28
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
29
|
29
11H-26372-00-00
Cover, Handle Lever
|
11H-26372-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
30
|
30
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
31
|
31
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
31
|
31
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
32
|
32
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
33
|
33
23W-26331-00-00
Cable, Starter 1
|
23W-26331-00-00 |
— | ||
|
34
|
34
31A-26290-00-00
Mirror Assembly (5G2-26290-00)
5G2-26290-00 |
31A-26290-00-00 |
— | ||
|
35
|
35
31A-26290-10-00
Mirror Assembly (5G2-26290-10)
5G2-26290-10 |
31A-26290-10-00 |
— | ||
