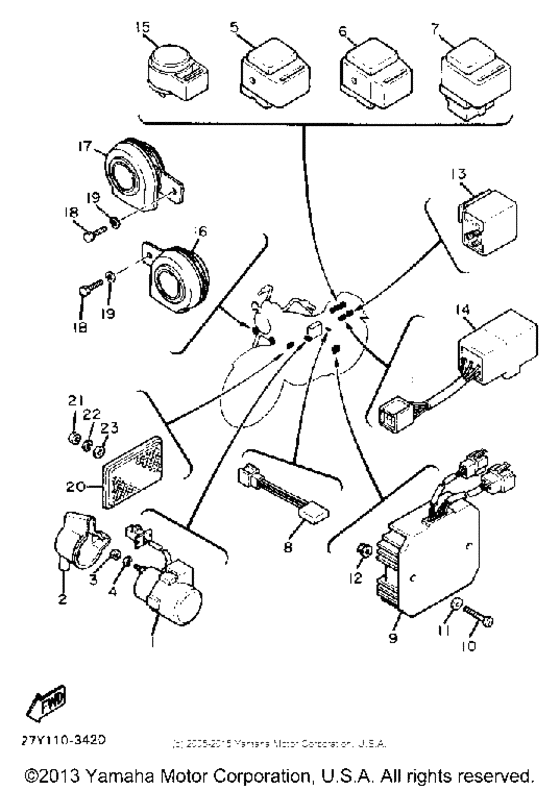

Electrical (2) Diagram Yamaha XV920
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X7-81940-10-00 Starter Switch Assembly (MS5D-331) |
4X7-81940-10-00 |
from US $150.59 |
||
|
2
|
2
5H1-82119-00-00 Cover,lead Wire |
5H1-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
2
|
2
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
3
|
3
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
3
|
3
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
4U8-81950-02-00 Relay Assy (4U8-02)4U8-02 |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
5
|
5
4U8-81950-03-00 Relay Assy4U8-02 |
4U8-81950-03-00 |
from US $93.93 |
||
|
6
|
6
4U8-81950-02-00 Relay Assy (4U8-02)4U8-02 |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
6
|
6
4U8-81950-03-00 Relay Assy4U8-02 |
4U8-81950-03-00 |
from US $93.93 |
||
|
7
|
7
12R-81950-01-00 Relay Assy (12R-01)12R-01 |
12R-81950-01-00 |
from US $57.75 |
||
| replacement | |||||
|
7
|
7
12R-81950-02-00 RELAY ASSY12R-01 |
12R-81950-02-00 |
from US $53.20 |
||
|
8
|
8
4H7-81980-M0-00 Diode Assembly |
4H7-81980-M0-00 |
from US $66.04 |
||
|
9
|
9
4X7-81960-A0-00 Rectifier/reg Assembly |
4X7-81960-A0-00 |
US $363.55 |
||
|
10
|
10
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
11
|
11
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
13
|
13
4E6-83350-70-00
Flasher Relay Assy
|
4E6-83350-70-00 |
— | ||
| replacement | |||||
|
13
|
13
2NV-83350-00-00
Flasher Relay Assy
|
2NV-83350-00-00 |
— | ||
|
14
|
14
1A0-83395-03-00
Flasher Cancel Unit
|
1A0-83395-03-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
10L-83360-00-00
Hzrd Flshr Rly Assembly
|
10L-83360-00-00 |
— | ||
|
16
|
16
24M-83371-20-00
Horn
|
24M-83371-20-00 |
— | ||
|
17
|
17
24M-83371-30-00
Horn
|
24M-83371-30-00 |
— | ||
|
18
|
18
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
19
|
19
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
20
|
20
4X7-85110-00-00
Front Reflector Assembly
|
4X7-85110-00-00 |
— | ||
|
21
|
21
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
21
|
21
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
22
|
22
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
23
|
23
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
