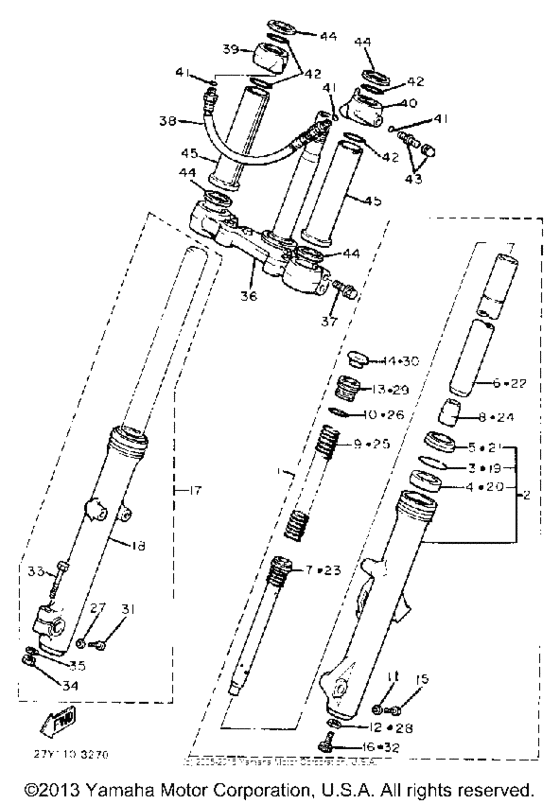

Front fork Diagram Yamaha XV920
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27Y-23102-00-00
Front Fork Assembly L
|
27Y-23102-00-00 |
— | ||
|
2
|
2
4W5-23126-00-6G
Tube, Outer 1
NEW YAMAHA BLK |
4W5-23126-00-6G |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
5
|
5
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
6
|
6
24M-23110-01-00
Inner Tube 1
|
24M-23110-01-00 |
— | ||
|
7
|
7
4K0-23170-00-00
Cylinder, Frtfrk
|
4K0-23170-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
20X-23141-00-00
Spring, Front Fork
|
20X-23141-00-00 |
— | ||
|
10
|
10
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $11.76 |
||
| replacement | |||||
|
14
|
14
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
15
|
15
4W5-23119-00-00 Plug, Drain |
4W5-23119-00-00 |
US $1.56 |
||
| replacements | |||||
|
15
|
15
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
15
|
15
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
15
|
15
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
16
|
16
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
16
|
16
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
17
|
17
27Y-23103-00-00
Front Fork Assembly R
|
27Y-23103-00-00 |
— | ||
|
18
|
18
4W5-23136-00-6G
Tube, Outer 2 (4H7-23136-00-6
4H7-23136-00-6 NEW YAMAHA BLK |
4W5-23136-00-6G |
— | ||
|
19
|
19
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
20
|
20
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
20
|
20
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
21
|
21
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
22
|
22
24M-23110-01-00
Inner Tube 1
|
24M-23110-01-00 |
— | ||
|
23
|
23
4K0-23170-00-00
Cylinder, Frtfrk
|
4K0-23170-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
25
|
25
20X-23141-00-00
Spring, Front Fork
|
20X-23141-00-00 |
— | ||
|
26
|
26
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
27
|
27
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
28
|
28
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
29
|
29
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $11.76 |
||
| replacement | |||||
|
30
|
30
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
31
|
31
4W5-23119-00-00 Plug, Drain |
4W5-23119-00-00 |
US $1.56 |
||
| replacements | |||||
|
31
|
31
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
31
|
31
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
31
|
31
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
31
|
31
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
32
|
32
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
32
|
32
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
33
|
33
97026-08045-00 Bolt |
97026-08045-00 |
from US $1.84 |
||
| replacement | |||||
|
33
|
33
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
34
|
34
953-36086-00-00
Nut, Hex
|
953-36086-00-00 |
— | ||
| replacement | |||||
|
34
|
34
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
35
|
35
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
36
|
36
24M-23340-01-00
Under Bracket (24M-23340-01-90)
24M-23340-01-90 |
24M-23340-01-00 |
— | ||
|
37
|
37
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
38
|
38
24M-2318F-01-00
Hose, Air
|
24M-2318F-01-00 |
— | ||
|
39
|
39
24M-2319A-01-00
Joint, Air
|
24M-2319A-01-00 |
— | ||
|
40
|
40
24M-2318A-01-00
Joint, Air 1
|
24M-2318A-01-00 |
— | ||
|
41
|
41
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
42
|
42
15R-23188-00-00
O-Ring
|
15R-23188-00-00 |
— | ||
|
43
|
43
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
44
|
44
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
45
|
45
27Y-23131-00-6G
Cover, Upper 2
NEW YAMAHA BLK |
27Y-23131-00-6G |
— | ||
