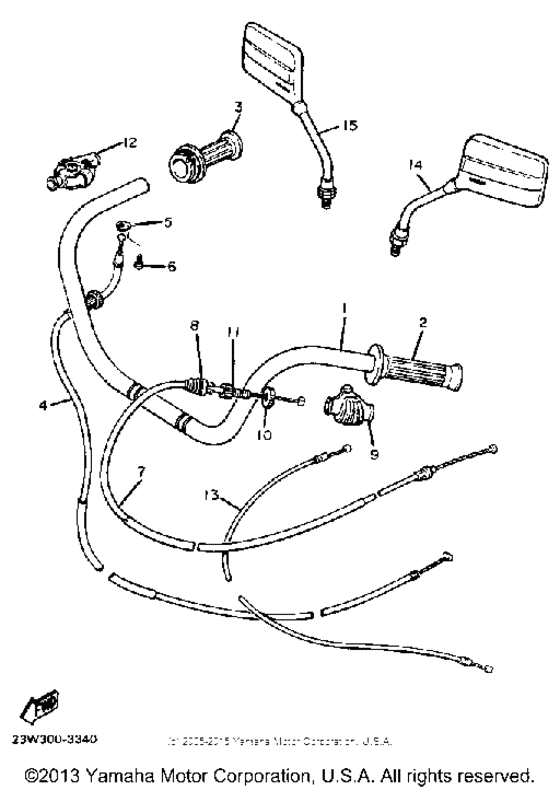

Handlebar-cable Diagram Yamaha XV920
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 920
- Model
- XV920
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20X-W2611-00-00
Handlebar
|
20X-W2611-00-00 |
— | ||
|
2
|
2
5G2-26241-10-00
Grip Lh
LH |
5G2-26241-10-00 |
— | ||
|
3
|
3
5G2-26240-10-00
Grip Assembly Rh
RH |
5G2-26240-10-00 |
— | ||
|
4
|
4
23W-26311-00-00
Cable, Throttle 1 (27Y-26311-00
27Y-26311-00 |
23W-26311-00-00 |
— | ||
|
5
|
5
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
6
|
6
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
6
|
6
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
7
|
7
23W-26335-10-00 Cable, clutch |
23W-26335-10-00 |
US $48.06 |
||
|
8
|
8
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
9
|
9
11H-26372-00-00
Cover, Handle Lever
|
11H-26372-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
13
|
13
23W-26331-00-00
Cable, Starter 1
|
23W-26331-00-00 |
— | ||
|
14
|
14
31A-26290-10-00
Mirror Assembly (5G2-26290-10)
5G2-26290-10 |
31A-26290-10-00 |
— | ||
|
15
|
15
31A-26290-00-00
Mirror Assembly (5G2-26290-00)
5G2-26290-00 |
31A-26290-00-00 |
— | ||
