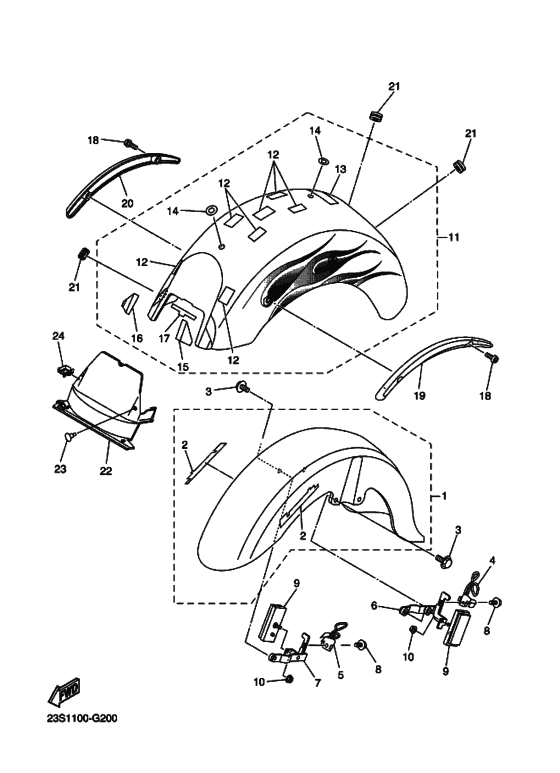

Fender Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2008
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 23S3
- Sales region
- Canada (010)
- Engine Capacity
- 1100
- Color Variant
- B
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KS-Y2151-1Y-P3 Front Fender AssyUR FOR BWC1 |
5KS-Y2151-1Y-P3 |
US $768.82 |
||
| replacement | |||||
|
1
|
1
5KS-Y2151-AF-P3 elementUR FOR BWC1 |
5KS-Y2151-AF-P3 |
US $629.84 |
||
|
2
|
2
5BN-21565-00-00 Emblem 2 |
5BN-21565-00-00 |
from US $26.07 |
||
| replacement | |||||
|
2
|
2
5BN-21565-01-00 Emblem 2 |
5BN-21565-01-00 |
from US $26.07 |
||
|
3
|
3
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
4
|
4
5KS-21597-00-00 Holder,wire 1 |
5KS-21597-00-00 |
from US $27.63 |
||
|
5
|
5
5KS-21598-00-00 Holder, Wire 2 |
5KS-21598-00-00 |
from US $27.63 |
||
|
6
|
6
5KS-21587-00-00 Stay 1 |
5KS-21587-00-00 |
from US $19.27 |
||
|
7
|
7
5KS-21588-00-00 Stay 2 |
5KS-21588-00-00 |
from US $19.27 |
||
|
8
|
8
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
8
|
8
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
9
|
9
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
10
|
10
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
11
|
11
5KS-W216R-11-P3 Rear Fender CompUR FOR BWC1 |
5KS-W216R-11-P3 |
US $959.26 |
||
|
12
|
12
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
13
|
13
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
13
|
13
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
13
|
13
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
14
|
14
4NK-21735-00-00 Seal 2 |
4NK-21735-00-00 |
from US $1.84 |
||
|
15
|
15
5KS-21669-00-00 Seal |
5KS-21669-00-00 |
from US $8.50 |
||
|
16
|
16
5KS-21669-10-00 Seal |
5KS-21669-10-00 |
from US $8.50 |
||
|
17
|
17
5KS-21669-20-00 Seal |
5KS-21669-20-00 |
from US $5.81 |
||
|
18
|
18
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
19
|
19
4WM-2164F-00-00 Stay 1 |
4WM-2164F-00-00 |
from US $95.33 |
||
|
20
|
20
4WM-2164G-00-00 Stay 2 |
4WM-2164G-00-00 |
from US $88.15 |
||
|
21
|
21
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
22
|
22
5KS-21629-00-00 Guard, Mud |
5KS-21629-00-00 |
from US $21.11 |
||
|
23
|
23
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
24
|
24
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
