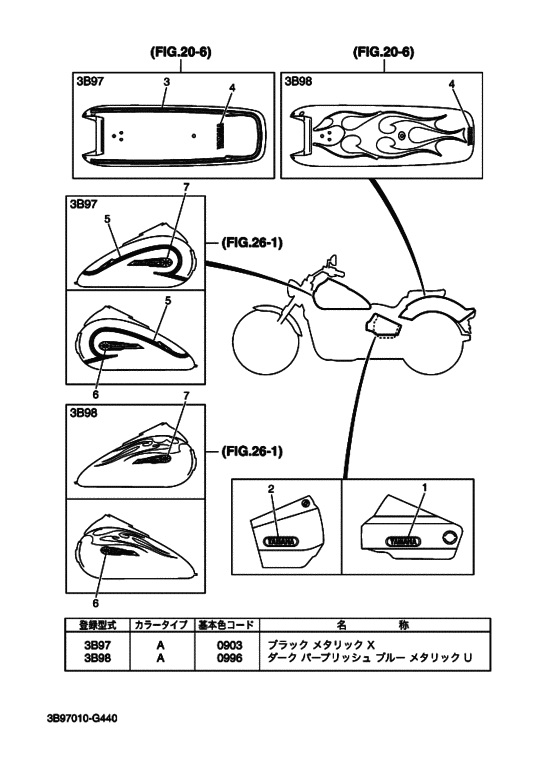

Graphic & Emblem Diagram Yamaha XVS1100 Drag Star
- Year
- 2008
- Colour
- Dark Purplish Blue Metallic U (DPBMU; 0996)
- Model code
- 3B98
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Note
- ; SILVER EG
- Model
- XVS1100 (Drag Star)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LS-21781-00-00 Emblem 1 |
3LS-21781-00-00 |
from US $25.08 |
||
|
2
|
2
3LS-21781-00-00 Emblem 1 |
3LS-21781-00-00 |
from US $25.08 |
||
|
4
|
4
1D6-2153E-00-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
4
|
4
3WF-2153E-70-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
3WF-2153E-70-00 |
from US $6.19 |
||
|
4
|
4
3WF-2153E-71-00 Emblem, Yamaha．エンブレム，ＹＡＭＡＨＡ; |
3WF-2153E-71-00 |
from US $6.82 |
||
|
6
|
6
5KS-2416B-22-00 Emblem |
5KS-2416B-22-00 |
US $38.68 |
||
|
7
|
7
5KS-2417B-22-00 Emblem |
5KS-2417B-22-00 |
US $38.68 |
||
