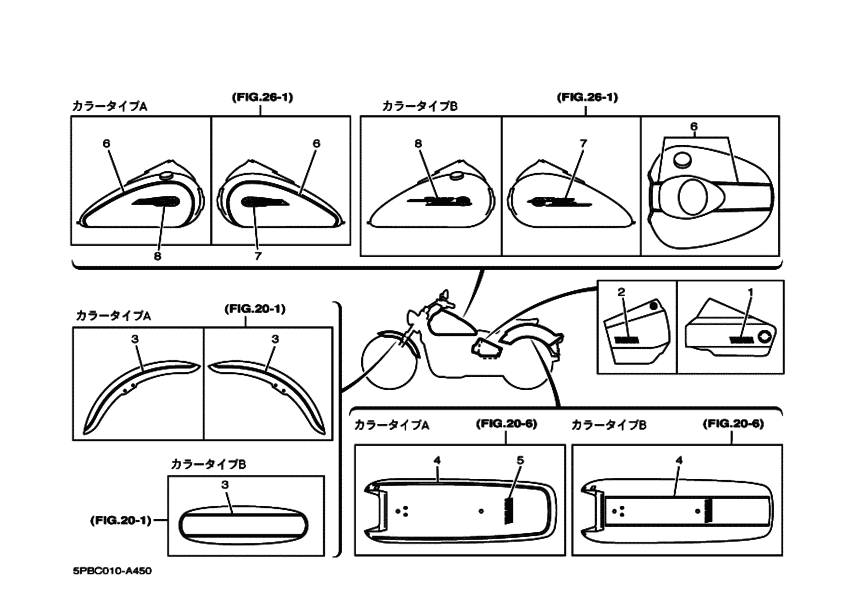

ｸﾞﾗﾌｲﾂｸ.ｴﾝﾌﾞﾚﾑ 2 (5PBC) Diagram Yamaha XVS1100 Drag Star
- Year
- 2002
- Colour
- Black 2 (BL2; 004B)
- Model code
- 5PBC
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XVS1100 (Drag Star)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.74 |
||
|
2
|
2
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.74 |
||
|
3
|
3
5EL-21569-C0-00
Graphic 1
＊グラフイツク １; ＵＲ |
5EL-21569-C0-00 |
— | ||
|
4
|
4
5EL-21675-C0-00
Graphic, Rear Fender
＊グラフイツク，リヤフエンダ; ＵＲ |
5EL-21675-C0-00 |
— | ||
|
5
|
5
992-47000-80-00 Emblem, Yamaha＊エンブレム，ＹＡＭＡＨＡ; ＵＲ |
992-47000-80-00 |
from US $7.76 |
||
|
6
|
6
5EL-24240-C0-00
Graphic Set
＊グラフイツクセツト; ＵＲ |
5EL-24240-C0-00 |
— | ||
|
7
|
7
4VR-24161-01-00
Emblem 1
ＵＲ |
4VR-24161-01-00 |
— | ||
| replacement | |||||
|
7
|
7
4VR-24161-02-00 Emblem 1ＵＲ |
4VR-24161-02-00 |
US $61.34 |
||
|
8
|
8
4VR-24162-01-00
Emblem 2
ＵＲ |
4VR-24162-01-00 |
— | ||
| replacement | |||||
|
8
|
8
4VR-24162-02-00 Emblem 2ＵＲ |
4VR-24162-02-00 |
US $69.89 |
||
