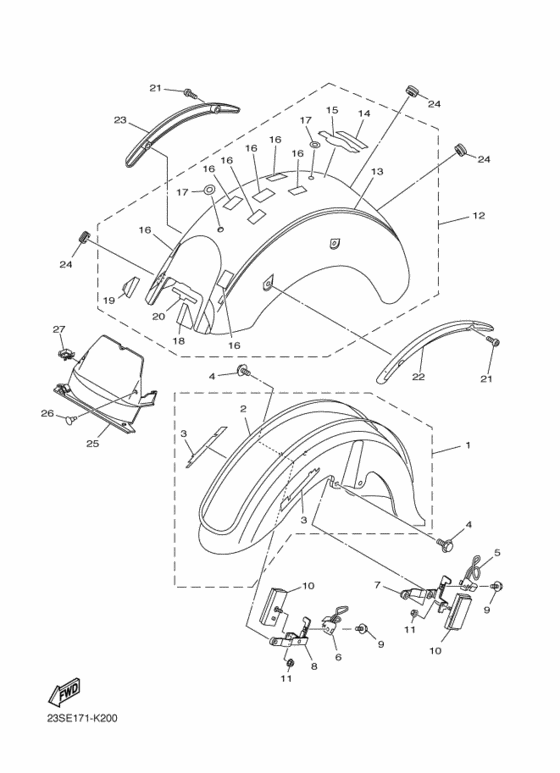

Fender Diagram Yamaha XVS1100 V-Star Silverado
- Year
- 2011
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5S0C
- Sales region
- Europe (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XVS1100AT (V-Star Silverado)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KS-Y2151-AJ-XG
Front Fender Assy
SMX/NW |
5KS-Y2151-AJ-XG |
— | ||
|
2
|
2
5YS-21570-70-00 Graphic Set, Front Fender |
5YS-21570-70-00 |
US $129.94 |
||
|
3
|
3
5BN-21565-01-00 Emblem 2 |
5BN-21565-01-00 |
from US $26.07 |
||
|
4
|
4
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
5
|
5
5KS-21597-00-00 Holder,wire 1 |
5KS-21597-00-00 |
from US $27.63 |
||
|
6
|
6
5KS-21598-00-00 Holder, Wire 2 |
5KS-21598-00-00 |
from US $27.63 |
||
|
7
|
7
5KS-21587-00-00 Stay 1 |
5KS-21587-00-00 |
from US $19.27 |
||
|
8
|
8
5KS-21588-00-00 Stay 2 |
5KS-21588-00-00 |
from US $19.27 |
||
|
9
|
9
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
9
|
9
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
10
|
10
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
11
|
11
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
12
|
12
5KS-W2161-0X-XG
Rear Fender Comp
SMX/NW |
5KS-W2161-0X-XG |
— | ||
| replacement | |||||
|
12
|
12
5KS-W216R-0Y-XG
Rear Fender Comp
SMX/NW |
5KS-W216R-0Y-XG |
— | ||
|
13
|
13
5YS-2165A-70-00 Graphic Set,rear Fender |
5YS-2165A-70-00 |
US $69.56 |
||
|
14
|
14
1D6-2153E-10-00 Emblem, Yamaha |
1D6-2153E-10-00 |
from US $7.65 |
||
| replacements | |||||
|
14
|
14
3WF-2153E-40-00 Emblem, Yamaha |
3WF-2153E-40-00 |
US $7.51 |
||
|
14
|
14
3WF-2153E-41-00 Emblem, Yamaha |
3WF-2153E-41-00 |
from US $7.51 |
||
|
15
|
15
23S-2164B-00-00
Emblem,3D
|
23S-2164B-00-00 |
— | ||
|
16
|
16
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
17
|
17
4NK-21735-00-00 Seal 2 |
4NK-21735-00-00 |
from US $1.84 |
||
|
18
|
18
5KS-21669-00-00 Seal |
5KS-21669-00-00 |
from US $8.50 |
||
|
19
|
19
5KS-21669-10-00 Seal |
5KS-21669-10-00 |
from US $8.50 |
||
|
20
|
20
5KS-21669-20-00 Seal |
5KS-21669-20-00 |
from US $5.81 |
||
|
21
|
21
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
22
|
22
4WM-2164F-00-00 Stay 1 |
4WM-2164F-00-00 |
from US $95.33 |
||
|
23
|
23
4WM-2164G-00-00 Stay 2 |
4WM-2164G-00-00 |
from US $88.15 |
||
|
24
|
24
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
25
|
25
5KS-21629-00-00 Guard, Mud |
5KS-21629-00-00 |
from US $21.11 |
||
|
26
|
26
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
27
|
27
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
