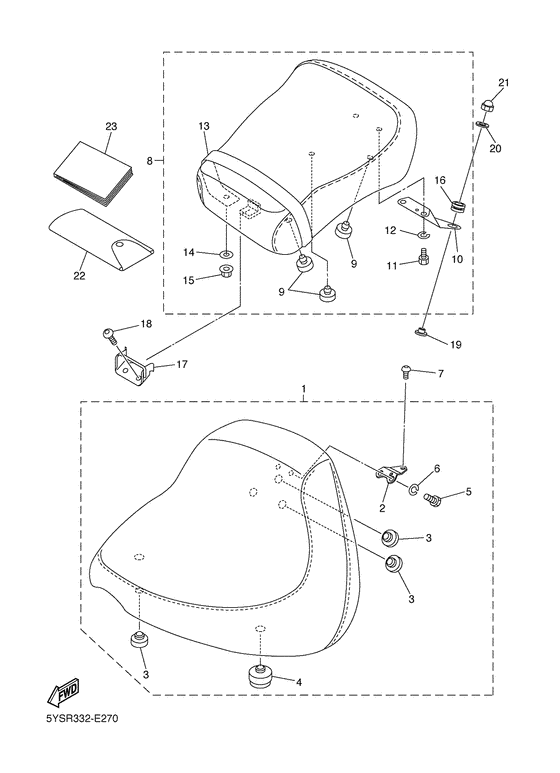

Seat Diagram Yamaha XVS1100 Drag Star Classic
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5YSR
- Sales region
- Spain (040)
- Engine Capacity
- 1100
- Model
- XVS1100A (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KS-24710-00-00 Single Seat Assy |
5KS-24710-00-00 |
from US $411.93 |
||
|
02
|
02
5KS-2475H-00-00 Bracket, Seat Lever 1 |
5KS-2475H-00-00 |
from US $17 |
||
|
03
|
03
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
04
|
04
1T4-24741-00-00 Pad, Seat |
1T4-24741-00-00 |
from US $8.78 |
||
|
05
|
05
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
05
|
05
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
06
|
06
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
07
|
07
92014-08012-00 Bolt, Button Head |
92014-08012-00 |
from US $1.84 |
||
|
08
|
08
5KS-24750-31-00 Tandem Seat Assy |
5KS-24750-31-00 |
from US $222.41 |
||
|
09
|
09
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
10
|
10
5YS-2475J-00-00 Bracket, Seat Lever 2 |
5YS-2475J-00-00 |
from US $14.51 |
||
|
11
|
11
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
13
|
13
5KS-24734-00-00 Band, Seat |
5KS-24734-00-00 |
from US $14.99 |
||
|
14
|
14
90207-06380-00 Washer, Finish |
90207-06380-00 |
from US $0.38 |
||
|
15
|
15
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
16
|
16
5YS-24742-00-00 Grommet |
5YS-24742-00-00 |
from US $1.94 |
||
|
17
|
17
5KS-2475N-00-00 Bracket |
5KS-2475N-00-00 |
from US $19.84 |
||
|
18
|
18
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
19
|
19
5YS-2471N-00-00 Collar, 1 |
5YS-2471N-00-00 |
from US $7.23 |
||
|
20
|
20
90201-08042-00 Washer, Plain |
90201-08042-00 |
from US $2.77 |
||
|
21
|
21
90176-08002-00 Nut, Crown |
90176-08002-00 |
from US $5.10 |
||
|
22
|
22
5EL-28100-10-00 Tool Kit |
5EL-28100-10-00 |
from US $68.80 |
||
|
23
|
23
5YS-28199-S1-00
Manual,owner`s
|
5YS-28199-S1-00 |
— | ||
