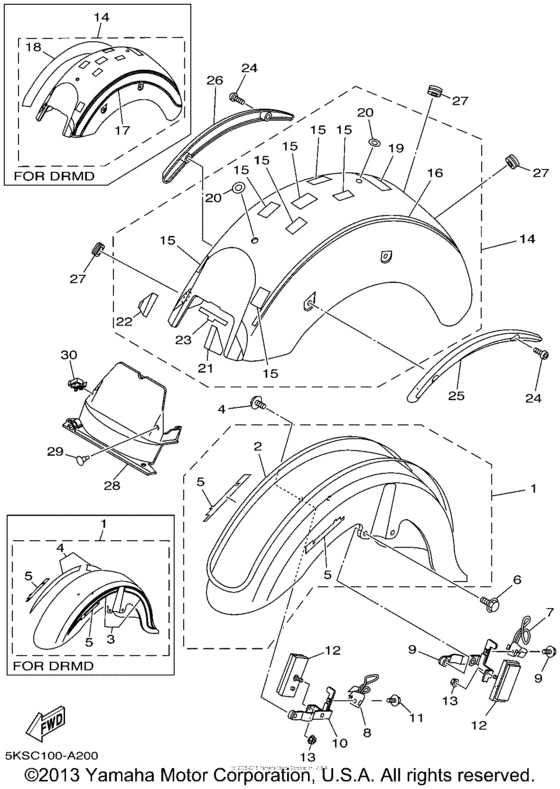

Fender Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2002
- Model code
- 5KSD
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KS-Y2151-90-33 Front Fender Compfor Color YAMAHA BLACK YB / 0033 |
5KS-Y2151-90-33 |
US $891.40 |
||
| replacement | |||||
|
1
|
1
5KS-Y2151-V1-33 FRONT FENDER ASSYfor Color YAMAHA BLACK YB / 0033 |
5KS-Y2151-V1-33 |
US $889.06 |
||
|
1
|
1
5KS-Y2151-A0-5X Front Fender Comp.for Color ELEGANT BROWN EBR / 00TY |
5KS-Y2151-A0-5X |
US $1,056.06 |
||
| replacement | |||||
|
1
|
1
5KS-Y2151-N1-5X elementfor Color ELEGANT BROWN EBR / 00TY |
5KS-Y2151-N1-5X |
US $869.64 |
||
|
1
|
1
5KS-Y2151-B0-4B
Front Fender Comp
for Color BLACK 2 BL2 / 004B |
5KS-Y2151-B0-4B |
— | ||
| replacement | |||||
|
1
|
1
5KS-W2151-1N-P2
Front Fender
for Color BLACK 2 BL2 / 004B |
5KS-W2151-1N-P2 |
— | ||
|
2
|
2
5KS-21570-90-00 Graphic Set, Front Fenderfor Color ELEGANT BROWN EBR / 00TY |
5KS-21570-90-00 |
US $209.30 |
||
|
2
|
2
5KS-21570-80-00 Graphic Set, Front Fenderfor Color YAMAHA BLACK YB / 0033 |
5KS-21570-80-00 |
US $250.76 |
||
|
3
|
3
5KS-2159A-00-00 Graphic Set 1Use for Color DULL RED METALLIC D DRMD / 0779 |
5KS-2159A-00-00 |
US $156.13 |
||
|
4
|
4
5KS-2159B-00-00
Graphic Set 2
Use for Color DULL RED METALLIC D DRMD / 0779 |
5KS-2159B-00-00 |
— | ||
|
5
|
5
5BN-21565-00-00 Emblem 2 |
5BN-21565-00-00 |
from US $26.07 |
||
| replacement | |||||
|
5
|
5
5BN-21565-01-00 Emblem 2 |
5BN-21565-01-00 |
from US $26.07 |
||
|
6
|
6
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
7
|
7
5KS-21597-00-00 Holder,wire 1 |
5KS-21597-00-00 |
from US $27.63 |
||
|
8
|
8
5KS-21598-00-00 Holder, Wire 2 |
5KS-21598-00-00 |
from US $27.63 |
||
|
9
|
9
5KS-21587-00-00 Stay 1 |
5KS-21587-00-00 |
from US $19.27 |
||
|
10
|
10
5KS-21588-00-00 Stay 2 |
5KS-21588-00-00 |
from US $19.27 |
||
|
11
|
11
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
12
|
12
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
13
|
13
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
14
|
14
5KS-Y2161-91-33
Rear Fender Comp
for Color YAMAHA BLACK YB / 0033 |
5KS-Y2161-91-33 |
— | ||
| replacement | |||||
|
14
|
14
5KS-Y216R-0M-33
Rear Fender
for Color YAMAHA BLACK YB / 0033 |
5KS-Y216R-0M-33 |
— | ||
|
14
|
14
5KS-Y2161-A1-5X
Rear Fender Comp.
for Color ELEGANT BROWN EBR / 00TY |
5KS-Y2161-A1-5X |
— | ||
| replacement | |||||
|
14
|
14
5KS-Y216R-R1-5X
REAR FENDER COMP.
for Color ELEGANT BROWN EBR / 00TY |
5KS-Y216R-R1-5X |
— | ||
|
14
|
14
5KS-Y2161-B1-4B Rear Fender Compfor Color BLACK 2 BL2 / 004B |
5KS-Y2161-B1-4B |
US $1,088.17 |
||
| replacement | |||||
|
14
|
14
5KS-W216R-0L-P2 Rear Fenderfor Color BLACK 2 BL2 / 004B |
5KS-W216R-0L-P2 |
US $914.18 |
||
|
15
|
15
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
16
|
16
5KS-2165A-80-00
Graphic Set,rear Fender
for Color YAMAHA BLACK YB / 0033 |
5KS-2165A-80-00 |
— | ||
|
16
|
16
5KS-2165A-90-00
Graphic Set,rear Fender
for Color ELEGANT BROWN EBR / 00TY |
5KS-2165A-90-00 |
— | ||
|
17
|
17
5KS-2165C-00-00 Graphic 1Use for Color DULL RED METALLIC D DRMD / 0779 |
5KS-2165C-00-00 |
US $213.52 |
||
|
18
|
18
5KS-2165D-00-00 Graphic 1Use for Color DULL RED METALLIC D DRMD / 0779 |
5KS-2165D-00-00 |
US $195.64 |
||
|
19
|
19
992-46000-80-00 Emblem (YAMAHA)for Color ELEGANT BROWN EBR / 00TY |
992-46000-80-00 |
from US $9.15 |
||
|
19
|
19
992-47000-80-00 Emblem, Yamahafor Color DULL RED METALLIC D DRMD / 0779 |
992-47000-80-00 |
from US $7.76 |
||
|
20
|
20
4NK-21735-00-00 Seal 2 |
4NK-21735-00-00 |
from US $1.84 |
||
|
21
|
21
5KS-21669-00-00 Seal |
5KS-21669-00-00 |
from US $8.50 |
||
|
22
|
22
5KS-21669-10-00 Seal |
5KS-21669-10-00 |
from US $8.50 |
||
|
23
|
23
5KS-21669-20-00 Seal |
5KS-21669-20-00 |
from US $5.81 |
||
|
24
|
24
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
25
|
25
4WM-2164F-00-00 Stay 1 |
4WM-2164F-00-00 |
from US $95.33 |
||
|
26
|
26
4WM-2164G-00-00 Stay 2 |
4WM-2164G-00-00 |
from US $88.15 |
||
|
27
|
27
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
28
|
28
5KS-21629-00-00 Guard, Mud |
5KS-21629-00-00 |
from US $21.11 |
||
|
29
|
29
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
30
|
30
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
