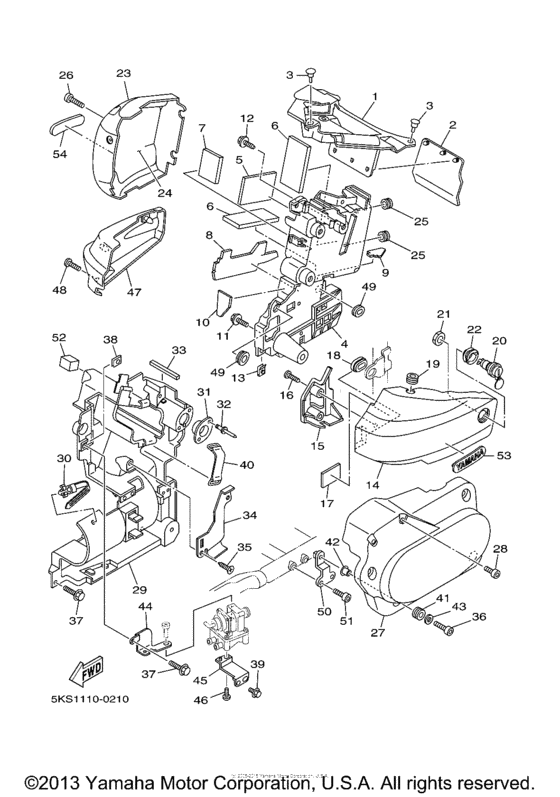

Side cover Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2003
- Model code
- 5KSR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-2177J-00-00 Lid 2 |
5EL-2177J-00-00 |
from US $16.72 |
||
|
2
|
2
30X-21621-00-00 Flap |
30X-21621-00-00 |
from US $18.99 |
||
|
3
|
3
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
4
|
4
5KS-2177G-00-00 Box, Battery |
5KS-2177G-00-00 |
from US $31.59 |
||
|
5
|
5
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $4.86 |
||
|
6
|
6
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
7
|
7
M12-T133A-00-00 Seat, Damper A |
M12-T133A-00-00 |
from US $0.79 |
||
|
8
|
8
5EL-2172A-10-00 Panel 1 |
5EL-2172A-10-00 |
from US $3.68 |
||
|
9
|
9
5EL-2172F-00-00 Panel 2 |
5EL-2172F-00-00 |
from US $1.69 |
||
|
10
|
10
5EL-2172G-00-00 Panel 3 |
5EL-2172G-00-00 |
from US $1.93 |
||
|
11
|
11
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
12
|
12
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
12
|
12
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
13
|
13
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
14
|
14
5KS-21711-00-33 Cover, Side 1Use for Color YAMAHA BLACK YB / 0033 |
5KS-21711-00-33 |
from US $100.46 |
||
|
14
|
14
5KS-21711-00-P4 Cover, Side 1Use for Color BLUISH SILVER 4 BS4 / 0820 |
5KS-21711-00-P4 |
from US $98.10 |
||
|
15
|
15
5EL-2171Y-00-00 Grille, Side Cover 1 |
5EL-2171Y-00-00 |
from US $26.35 |
||
|
16
|
16
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.52 |
||
|
17
|
17
3YL-12232-00-00 Damper |
3YL-12232-00-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
5H0-8235Y-M0-00 Damper |
5H0-8235Y-M0-00 |
from US $1.98 |
||
|
18
|
18
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
19
|
19
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
20
|
20
55K-21708-00-00 Lock Assy 2 |
55K-21708-00-00 |
from US $49.46 |
||
|
21
|
21
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
22
|
22
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
23
|
23
5KS-21721-00-33
Cover, Side 2
Use for Color YAMAHA BLACK YB / 0033 |
5KS-21721-00-33 |
— | ||
|
23
|
23
5KS-21721-00-P4 Cover, Side 2Use for Color BLUISH SILVER 4 BS4 / 0820 |
5KS-21721-00-P4 |
from US $98.10 |
||
|
24
|
24
5KS-2172A-00-00 Panel 1 |
5KS-2172A-00-00 |
from US $27.20 |
||
|
25
|
25
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.66 |
||
|
26
|
26
90149-06302-00 Screw |
90149-06302-00 |
from US $4.72 |
||
|
27
|
27
5EL-21731-00-00
Cover, Side 3
|
5EL-21731-00-00 |
— | ||
|
28
|
28
90110-06254-00 Bolt, Hexagon Socket Head |
90110-06254-00 |
from US $1.21 |
||
| replacement | |||||
|
28
|
28
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
|
29
|
29
5EL-2177E-01-00 Lid |
5EL-2177E-01-00 |
from US $40.64 |
||
|
30
|
30
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
30
|
30
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
31
|
31
4TR-2175H-00-00 Stay, Lock |
4TR-2175H-00-00 |
from US $12.49 |
||
|
32
|
32
90267-40180-00 Rivet, Blind |
90267-40180-00 |
from US $0.90 |
||
|
33
|
33
1FK-83526-00-00 Damper 2 |
1FK-83526-00-00 |
from US $2.55 |
||
|
34
|
34
5EL-2178L-00-00 Guide 1 |
5EL-2178L-00-00 |
from US $9.78 |
||
|
35
|
35
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
36
|
36
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
37
|
37
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
37
|
37
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
38
|
38
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
39
|
39
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
40
|
40
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $10.96 |
||
|
41
|
41
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.81 |
||
|
42
|
42
90387-066Y6-00 Collar |
90387-066Y6-00 |
from US $4.86 |
||
|
43
|
43
90201-06062-00 Washer, Plate |
90201-06062-00 |
from US $1.81 |
||
|
44
|
44
5EL-2172K-00-00 Bracket 1 |
5EL-2172K-00-00 |
US $15.21 |
||
|
45
|
45
5EL-2172L-00-00 Bracket 2 |
5EL-2172L-00-00 |
from US $7.08 |
||
|
46
|
46
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
47
|
47
5EL-21741-00-00 Cover, Side 4 |
5EL-21741-00-00 |
from US $167.17 |
||
|
48
|
48
90149-06302-00 Screw |
90149-06302-00 |
from US $4.72 |
||
|
49
|
49
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
50
|
50
5EL-2172M-00-00 Bracket 3 |
5EL-2172M-00-00 |
from US $11.33 |
||
|
51
|
51
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
52
|
52
5EL-21746-00-00 Damper |
5EL-21746-00-00 |
from US $0.45 |
||
|
53
|
53
3LS-21781-10-00 07749150120 Emblem (Yamaha) |
3LS-21781-10-00 |
from US $22.47 |
||
|
54
|
54
3LS-21781-10-00 07749150120 Emblem (Yamaha) |
3LS-21781-10-00 |
from US $22.47 |
||
