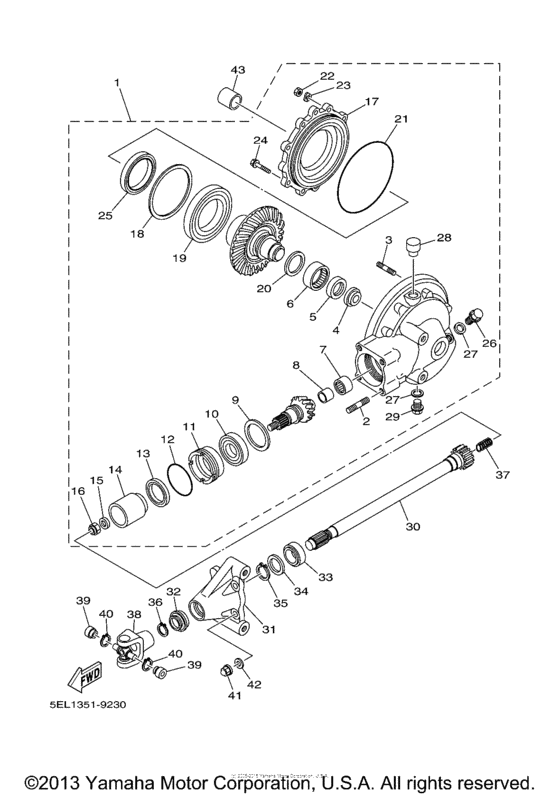

Drive shaft Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2003
- Model code
- 5KSS
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-46101-00-00 Rear Axle Gear Case Assy |
5EL-46101-00-00 |
from US $1,496.19 |
||
|
2
|
2
901-16103-61-00 Bolt, Stud |
901-16103-61-00 |
from US $2.36 |
||
|
3
|
3
95617-08620-00 Bolt, Stud(2Gg) |
95617-08620-00 |
from US $4.43 |
||
|
4
|
4
5EL-46153-00-00 Collar, Guide |
5EL-46153-00-00 |
from US $21.89 |
||
|
5
|
5
93101-30084-00 Oil Seal |
93101-30084-00 |
from US $9.15 |
||
|
6
|
6
93311-43729-00 Bearing |
93311-43729-00 |
from US $63.69 |
||
|
7
|
7
2H7-46120-00-00
Bearing
|
2H7-46120-00-00 |
— | ||
|
8
|
8
2H7-46122-00-00 Race, Inner |
2H7-46122-00-00 |
from US $26.78 |
||
|
9
|
9
1J7-17537-Y0-30 Shim, Thrust (0.30T)0.30T UR |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
9
|
9
1J7-17537-Y0-40 Shim, Thrust (0.40T)0.40T UR |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
9
|
9
1J7-17537-Y0-50 Shim, Thrust (0.50T)0.50T UR |
1J7-17537-Y0-50 |
from US $4.39 |
||
|
10
|
10
933-06305-33-00 Bearing |
933-06305-33-00 |
from US $82.22 |
||
|
11
|
11
4H7-46125-00-00 Retainer, Bearing |
4H7-46125-00-00 |
from US $43.52 |
||
|
12
|
12
93210-60426-00 O-Ring |
93210-60426-00 |
from US $6.51 |
||
|
13
|
13
93101-38098-00 Oil Seal |
93101-38098-00 |
from US $8.08 |
||
|
14
|
14
4H7-46123-01-00 Coupling, Gear |
4H7-46123-01-00 |
from US $139.54 |
||
|
15
|
15
90201-14632-00 Washer, Plate |
90201-14632-00 |
from US $7.37 |
||
|
16
|
16
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
17
|
17
4H7-46152-00-00 Housing, Bearing |
4H7-46152-00-00 |
from US $69.91 |
||
|
18
|
18
1J7-46117-Y0-40 Shim, Ring Gear (0.40T)0.40T UR |
1J7-46117-Y0-40 |
from US $4.53 |
||
|
18
|
18
1J7-46117-Y0-50 Shim, Ring Gear (0.50T)0.50T UR |
1J7-46117-Y0-50 |
from US $4.53 |
||
|
18
|
18
1J7-46117-Y0-25 Shim, Ring Gear (0.25T)0.25T UR |
1J7-46117-Y0-25 |
from US $4.53 |
||
|
18
|
18
1J7-46117-Y0-30 Shim, Ring Gear (0.30T)0.30T UR |
1J7-46117-Y0-30 |
from US $4.53 |
||
|
19
|
19
93316-01403-00 Bearing |
93316-01403-00 |
from US $64.52 |
||
|
20
|
20
22U-46118-00-16 Shim, Thrust (1.6T)1.6T UR |
22U-46118-00-16 |
from US $7.79 |
||
|
20
|
20
22U-46118-00-20 Shim, Thrust (2.0T)2.0T UR |
22U-46118-00-20 |
from US $7.79 |
||
|
20
|
20
22U-46118-00-18 Shim, Thrust (1.8T)1.8T UR |
22U-46118-00-18 |
from US $7.79 |
||
|
20
|
20
22U-46118-00-14 Shim, Thrust (1.4T)1.4T UR |
22U-46118-00-14 |
from US $7.79 |
||
|
20
|
20
22U-46118-00-12 Shim, Thrust (1.2T)1.2T UR |
22U-46118-00-12 |
from US $7.79 |
||
|
21
|
21
93211-44348-00 O-Ring |
93211-44348-00 |
from US $13.45 |
||
|
22
|
22
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
23
|
23
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
24
|
24
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
25
|
25
93102-70167-00 Oil Seal |
93102-70167-00 |
from US $13.60 |
||
|
26
|
26
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
27
|
27
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
28
|
28
56W-17590-00-00 Breather Comp |
56W-17590-00-00 |
from US $15.44 |
||
|
29
|
29
3JL-34550-00-00
Plug, Straight Screw
|
3JL-34550-00-00 |
— | ||
|
30
|
30
5EL-46171-00-00 Shaft Drive Assy |
5EL-46171-00-00 |
from US $292.90 |
||
|
31
|
31
5EL-46154-00-00 Cover, Housing |
5EL-46154-00-00 |
from US $131.94 |
||
|
32
|
32
5EL-46297-00-00 Cover, Dust |
5EL-46297-00-00 |
from US $18.59 |
||
|
33
|
33
93108-43014-00 Oil Seal |
93108-43014-00 |
from US $11.23 |
||
|
34
|
34
90201-266L1-00 Washer, Plate |
90201-266L1-00 |
from US $10.20 |
||
|
35
|
35
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.81 |
||
|
36
|
36
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.81 |
||
|
37
|
37
90501-16491-00 Spring, Compression |
90501-16491-00 |
from US $1.84 |
||
|
38
|
38
4X7-46180-00-00 Cross Joint Comp |
4X7-46180-00-00 |
from US $201.71 |
||
|
39
|
39
93399-99926-00 Bearing(2Hr) |
93399-99926-00 |
from US $20.12 |
||
|
40
|
40
93440-20088-00 Circlip |
93440-20088-00 |
from US $2.77 |
||
|
41
|
41
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.86 |
||
|
42
|
42
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
43
|
43
90387-172A5-00 Collar |
90387-172A5-00 |
from US $8.64 |
