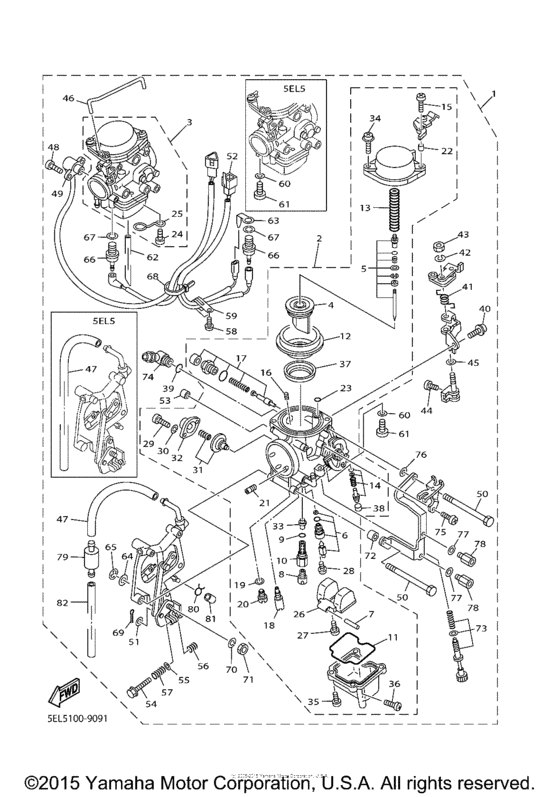

Carburetor Diagram Yamaha XVS1100 V-Star Custom
- Year
- 1999
- Model code
- 5EL5
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-14900-20-00 Carburetor AssyU49 5EL5 |
5EL-14900-20-00 |
US $1,836.74 |
||
| replacement | |||||
|
1
|
1
5EL-14900-21-00
Carburetor Assy
U49 5EL5 |
5EL-14900-21-00 |
— | ||
|
1
|
1
5EL-14900-30-00 Carburetor AssyLC CA 5EL6 |
5EL-14900-30-00 |
US $1,864.04 |
||
| replacement | |||||
|
1
|
1
5EL-14900-31-00 Carburetor AssyLC CA 5EL6 |
5EL-14900-31-00 |
US $1,864.04 |
||
|
2
|
2
5EL-14901-20-00 Carburetor Assy 1#1 REAR L U49 5EL5 |
5EL-14901-20-00 |
US $1,012.75 |
||
| replacement | |||||
|
2
|
2
5EL-14901-21-00 Carburetor Assy 1#1 REAR L U49 5EL5 |
5EL-14901-21-00 |
US $1,012.75 |
||
|
2
|
2
5EL-14901-30-00
Carburetor Assy 1
#1 REAR LC CA 5EL6 |
5EL-14901-30-00 |
— | ||
|
3
|
3
5EL-14902-20-00 Carburetor Assy 2#2 FRONT L U49 5EL5 |
5EL-14902-20-00 |
US $1,011.74 |
||
| replacement | |||||
|
3
|
3
5EL-14902-21-00 Carburetor Assy 2#2 FRONT L U49 5EL5 |
5EL-14902-21-00 |
US $1,011.40 |
||
|
3
|
3
5EL-14902-30-00
Carburetor Assy 2
#2 FRONT LC CA 5EL6 |
5EL-14902-30-00 |
— | ||
|
4
|
4
5EL-14112-00-00 Valve, Throttle 1 |
5EL-14112-00-00 |
from US $87.63 |
||
|
5
|
5
5EL-1490J-20-00 Needle Set |
5EL-1490J-20-00 |
from US $48.65 |
||
|
6
|
6
5EL-14107-12-00 Needle Valve Set |
5EL-14107-12-00 |
from US $58.58 |
||
|
7
|
7
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
8
|
8
3G2-14231-22-00 Jet, MainUR #1 REAR |
3G2-14231-22-00 |
from US $10.42 |
||
|
8
|
8
3G2-1423A-73-00 Jet, Main (#112.5)UR #2 FRONT |
3G2-1423A-73-00 |
US $19.84 |
||
| replacement | |||||
|
8
|
8
3G2-1423A-73-A0 Jet, Main (#112.5)UR #2 FRONT |
3G2-1423A-73-A0 |
from US $11.21 |
||
|
9
|
9
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $3.04 |
||
|
10
|
10
5EL-14261-00-00 Holder |
5EL-14261-00-00 |
from US $29.33 |
||
|
11
|
11
5DM-14561-00-00 O-Ring |
5DM-14561-00-00 |
from US $10.10 |
||
|
12
|
12
5EL-24411-00-00 Diaphragm |
5EL-24411-00-00 |
from US $37.38 |
||
|
13
|
13
4KM-14933-00-00 Spring, Diaphragm |
4KM-14933-00-00 |
from US $13.45 |
||
|
14
|
14
4SV-14105-00-00 Pilot Screw Set |
4SV-14105-00-00 |
from US $18.74 |
||
|
15
|
15
98502-05016-00 Screw, Pan Head |
98502-05016-00 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
15
|
15
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
16
|
16
1HX-14231-29-00 Jet, Main (#145) |
1HX-14231-29-00 |
from US $14.31 |
||
|
17
|
17
5EL-1410A-00-00 Starter Set |
5EL-1410A-00-00 |
from US $39.28 |
||
|
18
|
18
4KM-14142-17-00 Jet, Pilot (# 17.5)# 17.5 |
4KM-14142-17-00 |
from US $11.23 |
||
|
19
|
19
5EL-14918-00-00 Ring |
5EL-14918-00-00 |
from US $4.30 |
||
|
20
|
20
3G2-1423A-59-00 Jet, Main (#42.5) |
3G2-1423A-59-00 |
from US $11.54 |
||
|
21
|
21
1HX-1423E-25-00 Jet, Main (#63.8) |
1HX-1423E-25-00 |
from US $12.85 |
||
|
22
|
22
4KM-14194-00-00 Ring |
4KM-14194-00-00 |
from US $7.51 |
||
|
23
|
23
354-14147-00-00 O-Ring |
354-14147-00-00 |
from US $8.78 |
||
|
24
|
24
98507-04012-00 Screw, Pan Head |
98507-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
25
|
25
5EL-14919-00-00 Clip |
5EL-14919-00-00 |
from US $10.34 |
||
|
26
|
26
5DM-14985-00-00 Float |
5DM-14985-00-00 |
from US $40.07 |
||
|
27
|
27
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
28
|
28
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.70 |
||
|
29
|
29
985-07040-14-00 Screw, Pan Head |
985-07040-14-00 |
from US $1.42 |
||
|
30
|
30
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
31
|
31
5EL-1490H-00-00 Diaphragm Set 5 |
5EL-1490H-00-00 |
from US $31.03 |
||
|
32
|
32
5AP-14280-00-00 Cover, Carburetor |
5AP-14280-00-00 |
from US $38.68 |
||
|
33
|
33
5DM-14141-40-00 Nozzle, Main |
5DM-14141-40-00 |
from US $35.70 |
||
|
34
|
34
4KM-14216-00-00 ScrewUR #1 REAR |
4KM-14216-00-00 |
from US $3.54 |
||
|
35
|
35
98507-04010-00 Screw, Pan HeadUR #2 FRONT |
98507-04010-00 |
from US $1.39 |
||
|
36
|
36
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
37
|
37
5EL-14561-00-00 O-Ring |
5EL-14561-00-00 |
from US $5.81 |
||
|
38
|
38
3F9-14118-00-00 Cap |
3F9-14118-00-00 |
from US $5.10 |
||
|
39
|
39
3LN-1416A-00-00 O-Ring |
3LN-1416A-00-00 |
from US $9.88 |
||
|
40
|
40
4SV-24453-00-00 Screw |
4SV-24453-00-00 |
from US $1.81 |
||
|
41
|
41
5EL-14935-00-00 Spring |
5EL-14935-00-00 |
from US $7.37 |
||
|
42
|
42
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
42
|
42
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
43
|
43
95302-05700-00 Nut, Hexagon |
95302-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
43
|
43
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
44
|
44
11H-14991-00-00 Screw |
11H-14991-00-00 |
from US $0.74 |
||
| replacement | |||||
|
44
|
44
11H-14991-09-00 Screw |
11H-14991-09-00 |
from US $2.20 |
||
|
45
|
45
31H-14194-00-00 Ring |
31H-14194-00-00 |
from US $8.23 |
||
|
46
|
46
5EL-14577-00-00 Rod |
5EL-14577-00-00 |
from US $11.45 |
||
|
47
|
47
4YW-14987-00-00 Hose |
4YW-14987-00-00 |
from US $14.31 |
||
|
47
|
47
5EL-14987-10-00 Hose |
5EL-14987-10-00 |
US $13.86 |
||
|
48
|
48
4WM-14565-00-00 Screw |
4WM-14565-00-00 |
from US $2.98 |
||
|
49
|
49
5EL-85885-00-00 Throttle Sensor Assy |
5EL-85885-00-00 |
from US $294.79 |
||
|
50
|
50
5EL-14592-00-00
Screw
|
5EL-14592-00-00 |
— | ||
|
51
|
51
4NK-14285-00-00 Washer |
4NK-14285-00-00 |
from US $0.97 |
||
|
52
|
52
5EL-81517-00-00
Wire, Sub Lead
|
5EL-81517-00-00 |
— | ||
|
53
|
53
5EL-14987-00-00 Hose |
5EL-14987-00-00 |
from US $20.97 |
||
|
54
|
54
5EL-14991-00-00 Screw |
5EL-14991-00-00 |
from US $6.43 |
||
|
55
|
55
22F-14117-00-00 Washer, Plug Screw |
22F-14117-00-00 |
from US $2.77 |
||
|
56
|
56
5EL-14212-00-00 Spring, Pilot Adjusting |
5EL-14212-00-00 |
from US $2.69 |
||
|
57
|
57
3F7-14133-00-00
Spring, Throttle Stop
|
3F7-14133-00-00 |
— | ||
|
58
|
58
98507-04006-00 Vis, Tete Tronconique |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
58
|
58
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
59
|
59
90461-06087-00 Clamp |
90461-06087-00 |
US $4.50 |
||
| replacement | |||||
|
59
|
59
3XV-14243-00-00 Clamp |
3XV-14243-00-00 |
US $4.50 |
||
|
60
|
60
127-14198-00-00 Gasket |
127-14198-00-00 |
from US $3.12 |
||
|
61
|
61
3DM-14216-00-00 Screw |
3DM-14216-00-00 |
from US $3.26 |
||
|
62
|
62
5EL-14197-00-00 Pipe |
5EL-14197-00-00 |
from US $9.63 |
||
|
63
|
63
4DH-82103-00-00 Terminal 1 |
4DH-82103-00-00 |
from US $7.93 |
||
|
64
|
64
1A8-14953-00-00 Washer |
1A8-14953-00-00 |
from US $2.98 |
||
|
65
|
65
812-14137-00-00 Clip |
812-14137-00-00 |
from US $4.96 |
||
|
66
|
66
3BT-83790-00-00 Heater Assy (30W)30W |
3BT-83790-00-00 |
from US $27.77 |
||
| replacement | |||||
|
66
|
66
5FU-83790-20-00 Heater Assy (30W)30W |
5FU-83790-20-00 |
from US $30.65 |
||
|
67
|
67
5CY-14951-00-00 Washer |
5CY-14951-00-00 |
from US $2.69 |
||
|
68
|
68
35H-14139-00-00 Clip, Pipe |
35H-14139-00-00 |
from US $7.47 |
||
|
69
|
69
91492-10008-00 Pin, Cotter |
91492-10008-00 |
from US $1.98 |
||
|
70
|
70
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
70
|
70
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
71
|
71
953-82067-00-00
Nut
|
953-82067-00-00 |
— | ||
| replacement | |||||
|
71
|
71
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
72
|
72
5EL-14149-00-00 Pipe |
5EL-14149-00-00 |
from US $5.88 |
||
|
73
|
73
5EL-14103-00-00 Throttle Screw Set |
5EL-14103-00-00 |
from US $24.79 |
||
|
74
|
74
5EL-14251-00-00 Nipple |
5EL-14251-00-00 |
from US $9.23 |
||
|
75
|
75
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
76
|
76
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
76
|
76
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
77
|
77
1FK-14179-00-00
Washer, Starter Lever
|
1FK-14179-00-00 |
— | ||
| replacement | |||||
|
77
|
77
902-01053-28-00
Washer, Plate
|
902-01053-28-00 |
— | ||
|
78
|
78
5EL-14592-10-00 Screw |
5EL-14592-10-00 |
US $23.11 |
||
|
79
|
79
4X7-2149Y-00-00 Filter Assy |
4X7-2149Y-00-00 |
from US $12.48 |
||
|
80
|
80
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.74 |
||
|
81
|
81
895-14169-00-00 Cap |
895-14169-00-00 |
from US $3.38 |
||
|
82
|
82
5EL-14987-20-00 Hose |
5EL-14987-20-00 |
US $24.03 |
||
