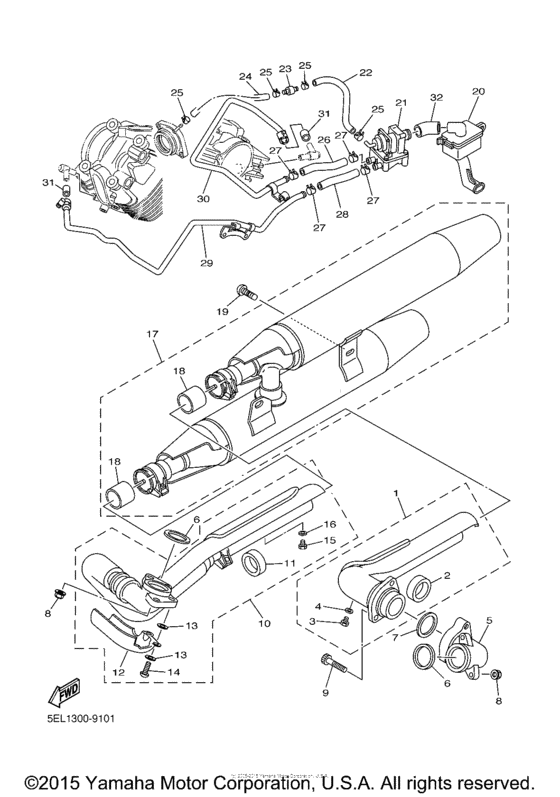

Exhaust Diagram Yamaha XVS1100 V-Star Custom
- Year
- 1999
- Model code
- 5EL5
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-14610-00-00 Exhaust Pipe Assy 1 |
5EL-14610-00-00 |
from US $391.91 |
||
| replacement | |||||
|
1
|
1
5EL-14610-10-00 Exhaust Pipe Assy 1 |
5EL-14610-10-00 |
from US $341.91 |
||
|
2
|
2
4NK-14714-00-00 Gasket, Muffler |
4NK-14714-00-00 |
from US $21.23 |
||
|
3
|
3
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
5EL-14615-00-00 Joint, Exhaust 1 |
5EL-14615-00-00 |
from US $96.39 |
||
| replacement | |||||
|
5
|
5
5EL-14615-01-00 Joint, Exhaust 1 |
5EL-14615-01-00 |
from US $103.45 |
||
|
6
|
6
3EG-14613-00-00 Сollar, Exhaust Pipe |
3EG-14613-00-00 |
from US $8.08 |
||
|
7
|
7
4TR-14613-00-00 Gasket, Exhaust Pipe |
4TR-14613-00-00 |
from US $8.32 |
||
|
8
|
8
90185-08097-00 Nut,self-Locking |
90185-08097-00 |
US $1.52 |
||
| replacement | |||||
|
8
|
8
90185-08146-00 Nut, Self-Locking |
90185-08146-00 |
from US $1.52 |
||
|
9
|
9
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.60 |
||
|
10
|
10
5EL-14620-00-00 Exhaust Pipe Assy 2 |
5EL-14620-00-00 |
from US $612.94 |
||
|
11
|
11
4NK-14714-00-00 Gasket, Muffler |
4NK-14714-00-00 |
from US $21.23 |
||
|
12
|
12
5EL-14624-00-00 Cover, Exhaust |
5EL-14624-00-00 |
from US $73.92 |
||
|
13
|
13
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
14
|
14
98904-06014-00 Screw, Bind |
98904-06014-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
98980-06014-00 Screw, Bind |
98980-06014-00 |
from US $2.13 |
||
|
15
|
15
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
5EL-14710-20-00 Muffler Assy 1 |
5EL-14710-20-00 |
from US $1,539.54 |
||
| replacement | |||||
|
17
|
17
5EL-14710-50-00 Muffler Assy 1 |
5EL-14710-50-00 |
from US $1,532.70 |
||
|
18
|
18
3XW-14755-00-00 Gasket, Silencer |
3XW-14755-00-00 |
from US $26.78 |
||
|
19
|
19
92017-10020-00 Bolt, Button Head |
92017-10020-00 |
from US $2.13 |
||
|
20
|
20
5EL-14806-00-00 Air Filter |
5EL-14806-00-00 |
from US $46.28 |
||
|
21
|
21
5EL-14803-00-00 Air Induction System Assy |
5EL-14803-00-00 |
US $270.54 |
||
| replacement | |||||
|
21
|
21
5EL-14803-10-00 Air Induction System Assy |
5EL-14803-10-00 |
US $343.24 |
||
|
22
|
22
5EL-13544-00-00 Hose, Vacuum Sensing 2 |
5EL-13544-00-00 |
from US $2.61 |
||
| replacement | |||||
|
22
|
22
5EL-13544-01-00 Hose, Vacuum Sensing 2 |
5EL-13544-01-00 |
from US $8.08 |
||
|
23
|
23
41R-14489-00-00 Nozzle |
41R-14489-00-00 |
from US $9.78 |
||
|
24
|
24
5EL-13542-00-00 Hose, Vacuum Sensing 5 |
5EL-13542-00-00 |
US $16.86 |
||
| replacement | |||||
|
24
|
24
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
25
|
25
90467-08092-00 Clip |
90467-08092-00 |
from US $1.39 |
||
|
26
|
26
5EL-14882-00-00 Hose, Bend 2 |
5EL-14882-00-00 |
from US $70.32 |
||
|
27
|
27
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.81 |
||
|
28
|
28
5EL-14884-00-00
Hose, Bend 4
|
5EL-14884-00-00 |
— | ||
|
29
|
29
5EL-14872-00-00 Pipe 2 |
5EL-14872-00-00 |
from US $82.54 |
||
|
30
|
30
5EL-14871-00-00 Pipe 1 |
5EL-14871-00-00 |
from US $58.44 |
||
|
31
|
31
42H-14714-10-00 Gasket, Muffler |
42H-14714-10-00 |
from US $17.90 |
||
|
32
|
32
5EL-14881-00-00 Hose, Bend 1 |
5EL-14881-00-00 |
from US $11.33 |
||
