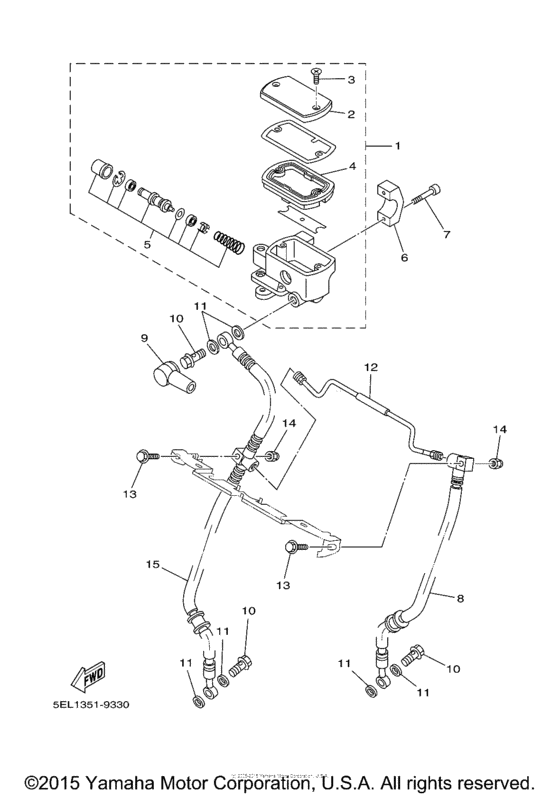

Front master cylinder Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2000
- Model code
- 5ELB
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TR-25870-01-00 Master Cylinder Sub Assy |
4TR-25870-01-00 |
from US $185.57 |
||
| replacement | |||||
|
1
|
1
3D8-25870-11-00 Master Cylinder Sub Assy |
3D8-25870-11-00 |
from US $185.57 |
||
|
2
|
2
4TR-25852-00-00
Cap, Reservoir
|
4TR-25852-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4TR-25852-01-00 Cap, Reservoir |
4TR-25852-01-00 |
from US $42 |
||
|
3
|
3
98704-04012-00 Screw, Flat Head |
98704-04012-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
98780-04012-00 Screw, Flat Head |
98780-04012-00 |
from US $1.42 |
||
|
4
|
4
4BH-25854-02-00 Diaphragm, Reservoir |
4BH-25854-02-00 |
from US $26.78 |
||
|
5
|
5
2KR-W0041-00-00
Cylinder Kit, Master
|
2KR-W0041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
2KR-25807-00-00 Cylinder Kit, Master |
2KR-25807-00-00 |
from US $52.02 |
||
|
6
|
6
4TR-25867-00-00 Bracket, Master Cylinder |
4TR-25867-00-00 |
from US $18.83 |
||
|
7
|
7
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
8
|
8
5EL-25872-00-00 Hose, Brake 1 |
5EL-25872-00-00 |
from US $94.51 |
||
|
9
|
9
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
5EL-25871-00-00
Pipe, Brake
|
5EL-25871-00-00 |
— | ||
|
13
|
13
90105-06400-00 Bolt, Flange |
90105-06400-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
14
|
14
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
15
|
15
5EL-25873-00-00 Hose, Brake 2 |
5EL-25873-00-00 |
from US $139.27 |
||
