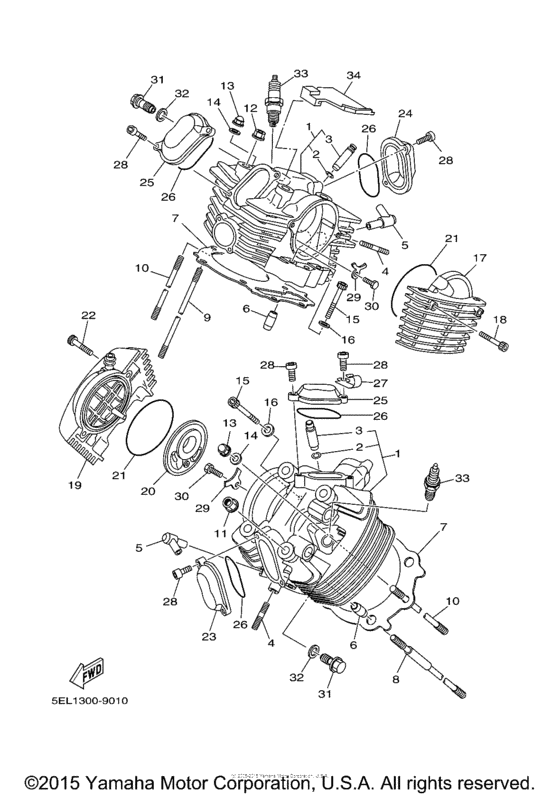

Cylinder head Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2000
- Model code
- 5ELA
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-11102-00-00
Cylinder Head Assy
|
5EL-11102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
5EL-11101-01-00 Cylinder Head Assy |
5EL-11101-01-00 |
from US $637.51 |
||
|
2
|
2
93440-14086-00 Circlip |
93440-14086-00 |
from US $1.70 |
||
|
3
|
3
4X7-11133-10-00 Guide, In./ex. Valve |
4X7-11133-10-00 |
from US $43.61 |
||
|
4
|
4
95617-08625-00 Bolt, Stud |
95617-08625-00 |
from US $4.16 |
||
|
5
|
5
5EL-14875-00-00 Pipe 5 |
5EL-14875-00-00 |
US $50.29 |
||
|
6
|
6
91817-30011-00 Pin, Dowel |
91817-30011-00 |
from US $7.93 |
||
|
7
|
7
5EL-11181-00-00 Gasket, Cylinder Head 1 |
5EL-11181-00-00 |
from US $44.43 |
||
|
8
|
8
4X7-11363-01-00 Bolt, Cylinder Holding 3 |
4X7-11363-01-00 |
from US $26.21 |
||
|
9
|
9
901-16124-69-00
Bolt, Stud
|
901-16124-69-00 |
— | ||
| replacement | |||||
|
9
|
9
901-16123-50-00
Bolt, Stud
|
901-16123-50-00 |
— | ||
|
10
|
10
901-16103-44-00 Bolt, Stud |
901-16103-44-00 |
from US $9.07 |
||
|
11
|
11
90179-12326-00 Nut |
90179-12326-00 |
US $11.56 |
||
|
12
|
12
90179-12325-00 Nut |
90179-12325-00 |
from US $7.65 |
||
|
13
|
13
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.86 |
||
|
14
|
14
902-01101-A4-00 Washer, Plate |
902-01101-A4-00 |
from US $2.58 |
||
| replacement | |||||
|
14
|
14
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
15
|
15
91314-08050-00 Bolt, Hexagon Socket Head |
91314-08050-00 |
from US $4.11 |
||
|
16
|
16
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
17
|
17
5EL-1111H-00-00 Cover, Cylinder Head Side 4 |
5EL-1111H-00-00 |
from US $144.86 |
||
|
18
|
18
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
19
|
19
5EL-11185-00-00
Cover, Cylinder Head Side 3
|
5EL-11185-00-00 |
— | ||
|
20
|
20
42X-11165-00-00 Plate, Breather |
42X-11165-00-00 |
from US $25.08 |
||
|
21
|
21
93210-92448-00 O-Ring |
93210-92448-00 |
from US $4.86 |
||
|
22
|
22
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
23
|
23
42H-11186-01-00 Cover, Cylinder Head Side 2 |
42H-11186-01-00 |
from US $56.09 |
||
| replacement | |||||
|
23
|
23
42H-11186-02-00 Cover, Cylinder Head Side 2 |
42H-11186-02-00 |
from US $56.09 |
||
|
24
|
24
5EL-11187-00-00 Cover, Cylinder Head Side 3 |
5EL-11187-00-00 |
from US $31.03 |
||
| replacement | |||||
|
24
|
24
5EL-11187-01-00 Cover, Cylinder Head Side 3 |
5EL-11187-01-00 |
from US $31.03 |
||
|
25
|
25
4X7-11187-01-00 Cover, Cylinder Head Side 3 |
4X7-11187-01-00 |
from US $20.92 |
||
| replacement | |||||
|
25
|
25
4X7-11187-02-00 Cover, Cylinder Head Side 3 |
4X7-11187-02-00 |
from US $23.66 |
||
|
26
|
26
93210-62446-00 O-Ring |
93210-62446-00 |
from US $1.94 |
||
|
27
|
27
90465-10264-00
Clamp
|
90465-10264-00 |
— | ||
|
28
|
28
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
29
|
29
4X7-1111F-00-00 Plate |
4X7-1111F-00-00 |
from US $3.26 |
||
|
30
|
30
97017-08020-00 Bolt |
97017-08020-00 |
from US $2.13 |
||
|
31
|
31
904-01160-65-00
Bolt, Union
|
904-01160-65-00 |
— | ||
|
32
|
32
90430-17168-00 Gasket |
90430-17168-00 |
from US $1.84 |
||
|
33
|
33
NGK-BPR7E-S0-00 Bpr7Es Ngk - 4/packUR |
NGK-BPR7E-S0-00 |
US $4.23 |
||
| replacement | |||||
|
33
|
33
BPR-7ES00-40-00 BPR7ES NGK - 4/PACKUR |
BPR-7ES00-40-00 |
US $22.04 |
||
|
34
|
34
5EL-1112M-00-00 Cover |
5EL-1112M-00-00 |
from US $8.08 |
||
