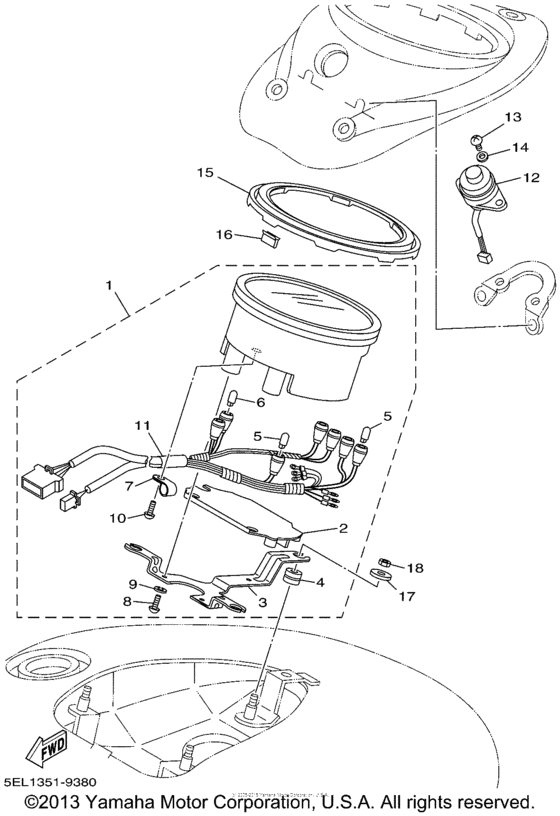

Meter Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2002
- Model code
- 5PB9
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PB-83500-11-00 Speedometer Assy (Mph) |
5PB-83500-11-00 |
US $863.59 |
||
|
2
|
2
4NK-83579-00-00 Cover, Meter 2 |
4NK-83579-00-00 |
from US $9.63 |
||
|
3
|
3
5EL-83519-00-00 Bracket, Meter |
5EL-83519-00-00 |
from US $53.26 |
||
|
4
|
4
4NK-83523-00-00 Damper |
4NK-83523-00-00 |
from US $3.68 |
||
|
5
|
5
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3FV-83517-00-00 |
from US $4.99 |
||
|
6
|
6
4NK-83517-00-00 Bulb (12V-1.4W, T6.5)12V-1.4W, T6.5 |
4NK-83517-00-00 |
from US $5.68 |
||
|
7
|
7
5EL-8357E-00-00 Clamp |
5EL-8357E-00-00 |
from US $2.41 |
||
|
8
|
8
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
9
|
9
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
10
|
10
90167-05016-00 Screw, Tapping |
90167-05016-00 |
from US $2.83 |
||
|
11
|
11
5EL-83509-00-00 Socket Cord Assy |
5EL-83509-00-00 |
from US $197.57 |
||
|
12
|
12
4NK-8358J-00-00 Switch, Meter Control |
4NK-8358J-00-00 |
from US $106.52 |
||
|
13
|
13
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
15
|
15
5EL-28346-00-00 Mole 2 |
5EL-28346-00-00 |
from US $11.33 |
||
|
16
|
16
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.76 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
18
|
18
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
18
|
18
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
