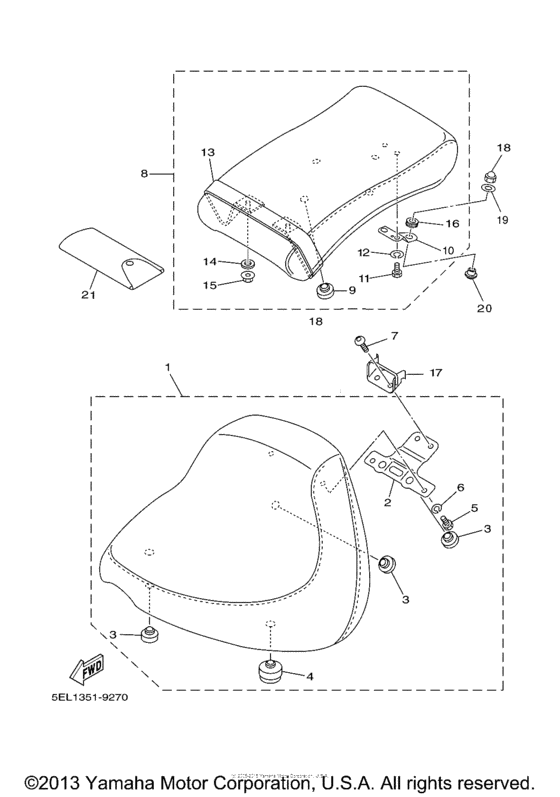

Seat Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2002
- Model code
- 5PB9
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-24710-00-00 Single Seat Assy |
5EL-24710-00-00 |
US $479.03 |
||
|
2
|
2
5EL-2475H-00-00 Bracket, Seat Lever 1 |
5EL-2475H-00-00 |
from US $15.30 |
||
|
3
|
3
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
4
|
4
1T4-24741-00-00 Pad, Seat |
1T4-24741-00-00 |
from US $8.78 |
||
|
5
|
5
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
7
|
7
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
8
|
8
5EL-24750-10-00 Tandem Seat Assy |
5EL-24750-10-00 |
US $269.87 |
||
|
9
|
9
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
10
|
10
5PB-2475J-00-00 Bracket, Seat Lever 2 |
5PB-2475J-00-00 |
from US $13.32 |
||
|
11
|
11
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
13
|
13
5EL-24734-00-00 Band, Seat |
5EL-24734-00-00 |
US $15.75 |
||
|
14
|
14
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
14
|
14
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
15
|
15
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
16
|
16
5YS-24742-00-00 Grommet |
5YS-24742-00-00 |
from US $1.94 |
||
|
17
|
17
5EL-2475N-00-00 Bracket |
5EL-2475N-00-00 |
from US $21.37 |
||
|
18
|
18
90176-08001-00 Nut, Cap |
90176-08001-00 |
from US $4.99 |
||
|
19
|
19
90201-08042-00 Washer, Plain |
90201-08042-00 |
from US $2.77 |
||
|
20
|
20
5PB-2471M-00-00 Collar 2 |
5PB-2471M-00-00 |
from US $12.19 |
||
|
21
|
21
5EL-28100-10-00 Tool Kit |
5EL-28100-10-00 |
from US $68.80 |
||
