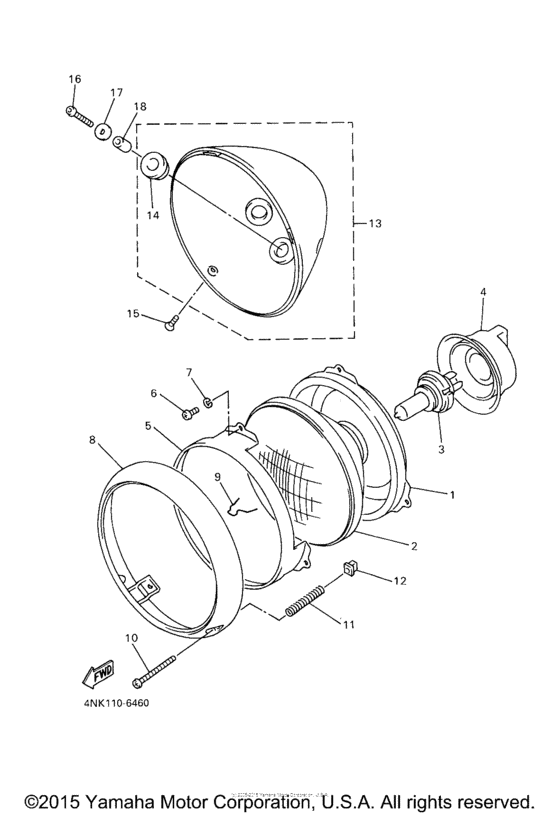

Headlight Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2009
- Model code
- 23S6
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
4NK-84394-00-00 Ring, Mounting |
4NK-84394-00-00 |
from US $51.86 |
||
2
|
2
4NK-84320-00-00 Lens Assy |
4NK-84320-00-00 |
from US $128.07 |
||
3
|
3
5V2-84314-00-XX
Bulb (12V-60/55W)
12V 60/55W HALOGEN H4 HALOGEN |
5V2-84314-00-XX |
— | ||
replacements | |||||
3
|
3
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V 60/55W HALOGEN H4 HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
3
|
3
5VK-H4314-00-00 Bulb, Headlight12V 60/55W HALOGEN H4 HALOGEN |
5VK-H4314-00-00 |
US $72.58 |
||
4
|
4
3SX-84397-00-00 Cover, Socket |
3SX-84397-00-00 |
from US $15.80 |
||
5
|
5
2F9-84395-00-00 Ring, Retaining |
2F9-84395-00-00 |
from US $45.58 |
||
6
|
6
985-02040-08-00
Screw, Pan Head
|
985-02040-08-00 |
— | ||
replacement | |||||
6
|
6
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.05 |
||
7
|
7
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
replacement | |||||
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $0.97 |
||
8
|
8
4NK-84315-00-00 Rim, Headlight |
4NK-84315-00-00 |
from US $93.35 |
||
9
|
9
290-84124-21-00 Spring, Set |
290-84124-21-00 |
from US $4.79 |
||
10
|
10
341-84331-60-00
Screw, Adjusting
|
341-84331-60-00 |
— | ||
replacement | |||||
10
|
10
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $5.24 |
||
11
|
11
5G2-84332-60-00
Spring, Screw
|
5G2-84332-60-00 |
— | ||
replacement | |||||
11
|
11
341-84332-60-00 Spring |
341-84332-60-00 |
from US $2.99 |
||
12
|
12
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $2.99 |
||
13
|
13
5KS-84330-00-00 Body Assy |
5KS-84330-00-00 |
from US $254.18 |
||
14
|
14
42X-84366-00-00 Damper, Headlight 1 |
42X-84366-00-00 |
from US $8.68 |
||
15
|
15
98704-05012-00 Screw, Flat Head |
98704-05012-00 |
from US $1.50 |
||
replacement | |||||
15
|
15
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.26 |
||
16
|
16
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.50 |
||
17
|
17
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.94 |
||
replacement | |||||
17
|
17
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.94 |
||
18
|
18
90387-0610J-00 Collar |
90387-0610J-00 |
from US $1.65 |
