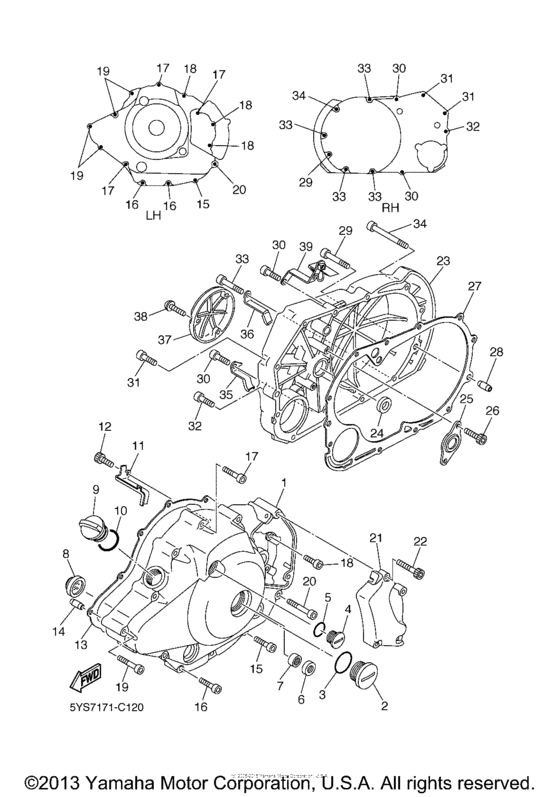

Crankcase cover (1) Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JN-15411-10-00 Cover, Crankcase 1 |
5JN-15411-10-00 |
from US $313.85 |
||
|
2
|
2
90340-32001-00 Plug, Straight Screw |
90340-32001-00 |
from US $18.28 |
||
|
3
|
3
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.81 |
||
|
4
|
4
90340-14117-00 Plug, Straight Screw |
90340-14117-00 |
from US $4.43 |
||
|
5
|
5
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.81 |
||
|
6
|
6
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
6
|
6
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.86 |
||
|
7
|
7
93317-21236-00 Bearing |
93317-21236-00 |
from US $17.14 |
||
|
8
|
8
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $28.71 |
||
|
9
|
9
3F9-15362-00-00 Plug, Oil Level |
3F9-15362-00-00 |
from US $10.63 |
||
| replacements | |||||
|
9
|
9
3F9-15362-10-00 Plug, Oil Level |
3F9-15362-10-00 |
from US $11.79 |
||
|
9
|
9
BAT-15362-00-00 PLUG OIL LEVEL |
BAT-15362-00-00 |
from US $7.76 |
||
|
10
|
10
932-10273-70-00
O-Ring
|
932-10273-70-00 |
— | ||
| replacement | |||||
|
10
|
10
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $4.04 |
||
|
11
|
11
5EL-15484-00-00 Clamp 2 |
5EL-15484-00-00 |
from US $11.62 |
||
|
12
|
12
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
13
|
13
5EL-15451-00-00 Gasket, Crankcase Cover 1 |
5EL-15451-00-00 |
from US $12.62 |
||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
15
|
15
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
16
|
16
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
17
|
17
91314-06045-00 Bolt, Hexagon Socket Head |
91314-06045-00 |
from US $1.42 |
||
|
18
|
18
90110-06003-00 Bolt, Hexagon Socket Head |
90110-06003-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
91314-06045-00 Bolt, Hexagon Socket Head |
91314-06045-00 |
from US $1.42 |
||
|
19
|
19
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
20
|
20
91314-06065-00 Bolt |
91314-06065-00 |
from US $1.42 |
||
|
21
|
21
5YS-15417-00-00 Cover, Cap |
5YS-15417-00-00 |
from US $65.56 |
||
|
22
|
22
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
23
|
23
5JN-15421-10-00 Cover, Crankcase 2 |
5JN-15421-10-00 |
from US $282.24 |
||
|
24
|
24
931-01141-02-00 Oil Seal |
931-01141-02-00 |
from US $8.74 |
||
|
25
|
25
4X7-15388-00-00 Plate, Bearing Cover |
4X7-15388-00-00 |
from US $3.68 |
||
|
26
|
26
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
27
|
27
5EL-15462-00-00 Gasket, Crankcase Cover 3INCL. IN CLUTCH PLATE KIT |
5EL-15462-00-00 |
from US $11.12 |
||
|
28
|
28
995-30101-20-00 Pin, Dowel |
995-30101-20-00 |
from US $1.52 |
||
|
29
|
29
91314-06060-00 Bolt |
91314-06060-00 |
from US $1.42 |
||
|
30
|
30
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
31
|
31
901-10060-06-00
Bolt, Hexagon Socket Head
|
901-10060-06-00 |
— | ||
| replacement | |||||
|
31
|
31
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
32
|
32
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
33
|
33
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
34
|
34
90110-06111-00 Bolt, Hexagon Socket Head |
90110-06111-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
35
|
35
90462-10003-00 Clamp |
90462-10003-00 |
from US $6.66 |
||
|
36
|
36
90462-10247-00 Clamp |
90462-10247-00 |
from US $6.94 |
||
|
37
|
37
5JN-15423-10-00 Cover 2 |
5JN-15423-10-00 |
from US $61.10 |
||
|
38
|
38
92014-06020-00 Bolt, Button Head |
92014-06020-00 |
from US $1.66 |
||
|
39
|
39
5EL-14413-00-00 Stay |
5EL-14413-00-00 |
from US $21.68 |
||
