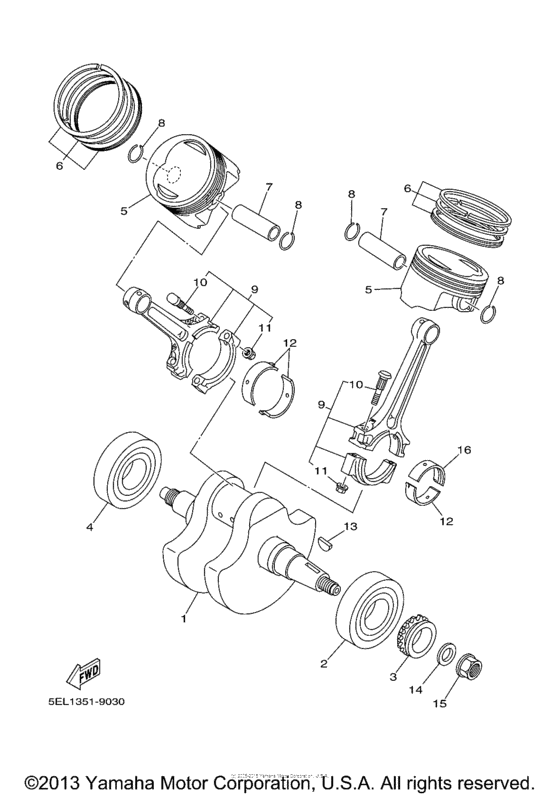

Crankshaft & Piston Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-11411-10-00 Crankshaft |
5EL-11411-10-00 |
from US $801.24 |
||
|
2
|
2
933-06308-08-00 Bearing (B6308C4-Special) |
933-06308-08-00 |
from US $110.80 |
||
|
3
|
3
4X7-13354-00-00 Sprocket, Drive |
4X7-13354-00-00 |
from US $41.45 |
||
|
4
|
4
933-06308-08-00 Bearing (B6308C4-Special) |
933-06308-08-00 |
from US $110.80 |
||
|
5
|
5
5EL-11631-10-00 Piston (Std) |
5EL-11631-10-00 |
from US $140.87 |
||
|
6
|
6
1TA-11610-00-00 Piston Ring Set (Std) |
1TA-11610-00-00 |
from US $37.04 |
||
|
7
|
7
4WM-11633-00-00 Pin, Piston |
4WM-11633-00-00 |
from US $24.83 |
||
|
8
|
8
934-50240-28-00 Circlip |
934-50240-28-00 |
from US $1.39 |
||
|
9
|
9
5EL-11650-10-00 Connecting Rod Assy |
5EL-11650-10-00 |
from US $232.09 |
||
|
10
|
10
4X7-11654-01-00 Bolt, Connecting Rod |
4X7-11654-01-00 |
from US $9.83 |
||
|
11
|
11
90179-09379-00 Nut |
90179-09379-00 |
from US $2.36 |
||
|
12
|
12
4X7-11656-40-00 Plane Bearing, Connecting RodUR YELLOW |
4X7-11656-40-00 |
from US $14.69 |
||
|
12
|
12
4X7-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
4X7-11656-00-00 |
from US $22.33 |
||
|
12
|
12
4X7-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
4X7-11656-10-00 |
from US $22.33 |
||
|
12
|
12
4X7-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
4X7-11656-20-00 |
from US $19.55 |
||
|
12
|
12
4X7-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
4X7-11656-30-00 |
from US $19.55 |
||
|
13
|
13
902-80050-48-00
Key, Woodruff
|
902-80050-48-00 |
— | ||
| replacement | |||||
|
13
|
13
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
14
|
14
90201-165H4-00 Washer, Plate |
90201-165H4-00 |
from US $6.52 |
||
|
15
|
15
90179-16448-00 Nut |
90179-16448-00 |
from US $14.03 |
||
| replacement | |||||
|
15
|
15
90179-16662-00 Nut(3Jp) |
90179-16662-00 |
from US $24.37 |
||
|
16
|
16
5G5-11656-20-00 Plane Bearing, Connecting RodUR GREEN |
5G5-11656-20-00 |
from US $17.57 |
||
|
16
|
16
5G5-11656-10-00 Plane Bearing, Connecting RodUR BROWN |
5G5-11656-10-00 |
from US $17.57 |
||
|
16
|
16
5G5-11656-00-00 Plane Bearing, Connecting RodUR BLACK |
5G5-11656-00-00 |
from US $17.57 |
||
