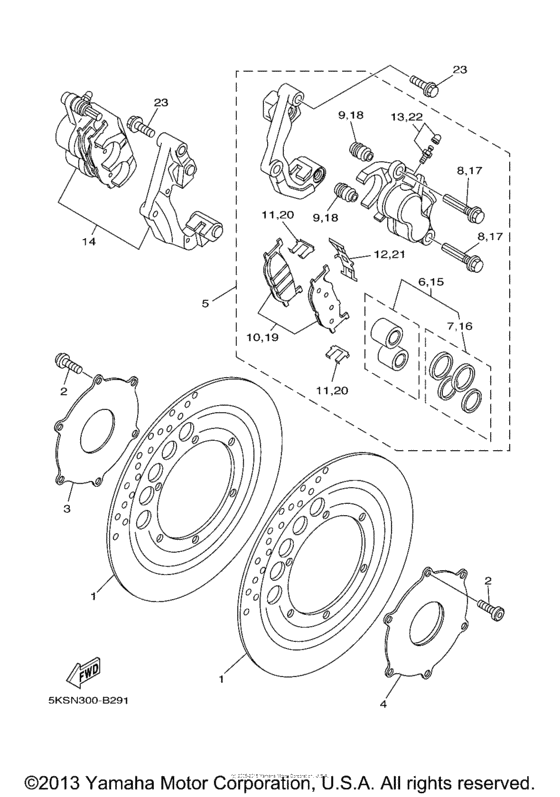

Front brake caliper Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JB-2582U-10-00 Disc, Brake (Right) |
3JB-2582U-10-00 |
from US $356 |
||
|
2
|
2
901-09080-06-00
Screw
|
901-09080-06-00 |
— | ||
| replacement | |||||
|
2
|
2
901-49080-52-00 Screw |
901-49080-52-00 |
from US $4.03 |
||
|
3
|
3
5EL-2514A-00-00 Ring, Wheel 1 (Right) |
5EL-2514A-00-00 |
from US $92.98 |
||
|
4
|
4
5EL-2515A-00-00 Ring, Wheel 2 (Left) |
5EL-2515A-00-00 |
from US $129.62 |
||
|
5
|
5
5KS-2580T-20-00 Caliper Assy (Left) |
5KS-2580T-20-00 |
from US $406.03 |
||
|
6
|
6
5KS-W0057-00-00
Piston Assy, Caliper
|
5KS-W0057-00-00 |
— | ||
| replacement | |||||
|
6
|
6
5KS-25802-00-00 Piston Assy, Caliper |
5KS-25802-00-00 |
from US $73.82 |
||
|
7
|
7
4FU-W0047-00-00
Caliper Seal Kit
|
4FU-W0047-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4HC-25803-50-00 Caliper Seal Kit |
4HC-25803-50-00 |
from US $33.29 |
||
|
8
|
8
5JW-25914-10-00 Pin, Slide |
5JW-25914-10-00 |
from US $5.68 |
||
|
9
|
9
4TT-25937-00-00 Boot 2 |
4TT-25937-00-00 |
from US $9.44 |
||
|
10
|
10
4EB-W0045-00-00
Brake Pad Kit
|
4EB-W0045-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5VU-25805-00-00 Brake Pad Kit |
5VU-25805-00-00 |
from US $54.72 |
||
|
11
|
11
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $17.48 |
||
|
12
|
12
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $22.20 |
||
|
13
|
13
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
13
|
13
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
14
|
14
5KS-2580U-20-00 Caliper Assy (Right) |
5KS-2580U-20-00 |
from US $455.58 |
||
|
15
|
15
5KS-W0057-00-00
Piston Assy, Caliper
|
5KS-W0057-00-00 |
— | ||
| replacement | |||||
|
15
|
15
5KS-25802-00-00 Piston Assy, Caliper |
5KS-25802-00-00 |
from US $73.82 |
||
|
16
|
16
4FU-W0047-00-00
Caliper Seal Kit
|
4FU-W0047-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4HC-25803-50-00 Caliper Seal Kit |
4HC-25803-50-00 |
from US $33.29 |
||
|
17
|
17
5JW-25914-10-00 Pin, Slide |
5JW-25914-10-00 |
from US $5.68 |
||
|
18
|
18
4TT-25937-00-00 Boot 2 |
4TT-25937-00-00 |
from US $9.44 |
||
|
19
|
19
4EB-W0045-00-00
Brake Pad Kit
|
4EB-W0045-00-00 |
— | ||
| replacement | |||||
|
19
|
19
5VU-25805-00-00 Brake Pad Kit |
5VU-25805-00-00 |
from US $54.72 |
||
|
20
|
20
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $17.48 |
||
|
21
|
21
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $22.20 |
||
|
22
|
22
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
22
|
22
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
23
|
23
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
