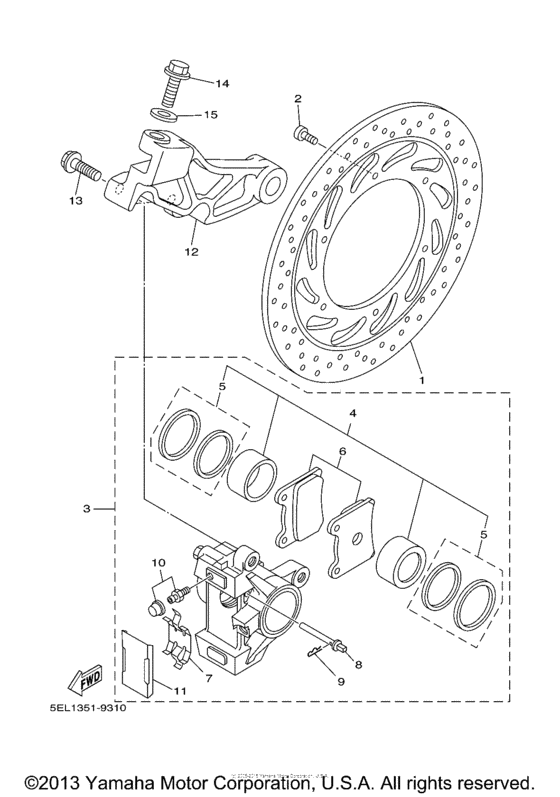

Rear brake caliper Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-2582W-00-00 Disc, Rear Brake 2 |
5EL-2582W-00-00 |
from US $330.48 |
||
|
2
|
2
90109-083G4-00 Bolt |
90109-083G4-00 |
US $1.81 |
||
| replacement | |||||
|
2
|
2
901-11080-57-00 Bolt |
901-11080-57-00 |
from US $1.81 |
||
|
3
|
3
5EL-2580W-00-00 Caliper Assy, Rear 2 |
5EL-2580W-00-00 |
from US $403.54 |
||
|
4
|
4
31A-W0057-00-00 Piston Assy, Caliper |
31A-W0057-00-00 |
from US $89.27 |
||
|
5
|
5
31A-W0047-00-00 Caliper Seal Kit |
31A-W0047-00-00 |
from US $41.05 |
||
|
6
|
6
3XF-W0045-50-00 Brake Pad Kit |
3XF-W0045-50-00 |
from US $61.06 |
||
|
7
|
7
29L-25919-00-00 Support, Pad |
29L-25919-00-00 |
from US $17.64 |
||
| replacement | |||||
|
7
|
7
1WG-25919-00-00 Support, Pad |
1WG-25919-00-00 |
from US $11.54 |
||
|
8
|
8
3HE-25924-00-00 Pin, Pad |
3HE-25924-00-00 |
from US $9.57 |
||
|
9
|
9
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.68 |
||
|
10
|
10
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $15.95 |
||
|
11
|
11
51J-25836-00-00 Cover, Dust |
51J-25836-00-00 |
from US $12.06 |
||
| replacement | |||||
|
11
|
11
51J-25836-01-00 Cover, Dust |
51J-25836-01-00 |
from US $12.06 |
||
|
12
|
12
5EL-25819-01-00 Bracket, Caliper |
5EL-25819-01-00 |
from US $171.32 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
14
|
14
90105-10010-00 Bolt, Flange |
90105-10010-00 |
from US $3.47 |
||
|
15
|
15
90201-10140-00 Washer, Plate |
90201-10140-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
