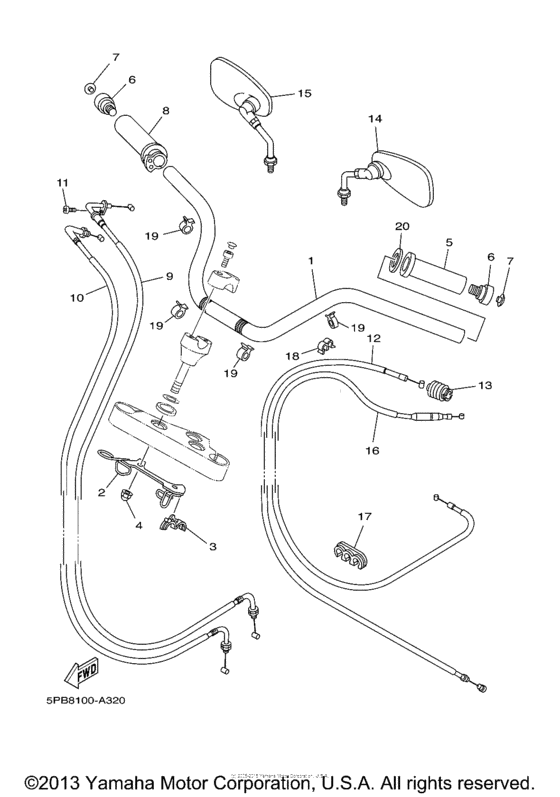

Steering handle & cable Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-26111-10-00 Handlebar |
5EL-26111-10-00 |
from US $199.42 |
||
| replacement | |||||
|
1
|
1
5EL-26111-11-00 Handlebar |
5EL-26111-11-00 |
from US $206.96 |
||
|
2
|
2
5PB-23389-00-00 Guide, Cable |
5PB-23389-00-00 |
from US $59.55 |
||
|
3
|
3
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
4
|
4
90176-12052-00 Nut, Crown |
90176-12052-00 |
from US $8.22 |
||
|
5
|
5
4NK-26241-00-00
Grip(Left)
|
4NK-26241-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4NK-26241-01-00 Grip(Left) |
4NK-26241-01-00 |
from US $39.42 |
||
|
6
|
6
5EL-26246-00-00 End, Grip |
5EL-26246-00-00 |
from US $49.52 |
||
|
7
|
7
5EL-23469-00-00 Cap, Bolt |
5EL-23469-00-00 |
from US $2.08 |
||
|
8
|
8
4XY-26240-00-00 Grip Assy |
4XY-26240-00-00 |
from US $53.51 |
||
|
9
|
9
5PB-26311-10-00 Cable, Throttle 1 |
5PB-26311-10-00 |
from US $43.11 |
||
| replacement | |||||
|
9
|
9
5PB-26311-11-00 Wire, Throttle 1 |
5PB-26311-11-00 |
from US $42.39 |
||
|
10
|
10
5PB-26312-10-00 Cable, Throttle 2 |
5PB-26312-10-00 |
from US $43.38 |
||
| replacement | |||||
|
10
|
10
5PB-26312-11-00 Cable, Throttle 2 |
5PB-26312-11-00 |
from US $39.69 |
||
|
11
|
11
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
5PB-26335-00-00 Cable, clutch |
5PB-26335-00-00 |
from US $41.73 |
||
|
13
|
13
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
14
|
14
4NK-26280-00-00
Rear View Mirror Assy (Left)
|
4NK-26280-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4NK-26280-10-00 Rear View Mirror Assy (Left) |
4NK-26280-10-00 |
from US $71.79 |
||
|
15
|
15
4NK-26290-00-00
Rear View Mirror Assy (Right)
|
4NK-26290-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4NK-26290-10-00 Rear View Mirror Assy (Right) |
4NK-26290-10-00 |
from US $73.28 |
||
|
16
|
16
5EL-26331-00-00 Cable, Starter 1 |
5EL-26331-00-00 |
from US $30.17 |
||
|
17
|
17
90464-07003-00 Clamp |
90464-07003-00 |
from US $1.84 |
||
|
18
|
18
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.81 |
||
|
19
|
19
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
20
|
20
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
