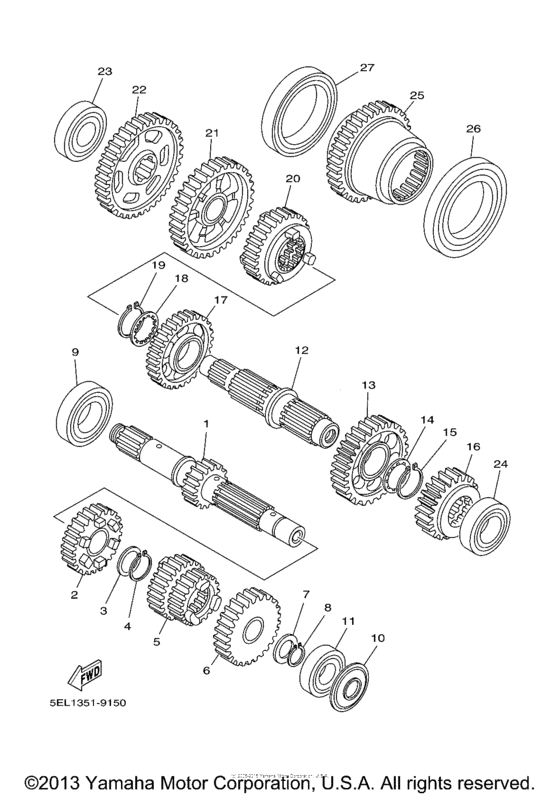

Transmission Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2005
- Model code
- 5PBR
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-17411-00-00 Axle, Main (17T)17T |
5EL-17411-00-00 |
from US $156.12 |
||
|
2
|
2
5EL-17141-00-00 Gear, 4Th Pinion (31T)4TH PINION 31T |
5EL-17141-00-00 |
from US $105.42 |
||
|
3
|
3
90209-21332-00 Washer |
90209-21332-00 |
from US $8.30 |
||
|
4
|
4
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.66 |
||
|
5
|
5
5EL-17121-00-00 Gear, 2Nd Pinion (24T/28T)2ND PINION 24T/28T |
5EL-17121-00-00 |
from US $135.12 |
||
|
6
|
6
5EL-17151-00-00 Gear, 5Th Pinion (34T)5TH PINION 34T |
5EL-17151-00-00 |
from US $88.13 |
||
|
7
|
7
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
8
|
8
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
9
|
9
93306-30525-00 Bearing (B6305) |
93306-30525-00 |
from US $18.84 |
||
|
10
|
10
93104-20068-00 Oil Seal |
93104-20068-00 |
from US $7.08 |
||
|
11
|
11
93306-30424-00 Bearing |
93306-30424-00 |
from US $26.78 |
||
| replacement | |||||
|
11
|
11
933-06304-43-00 Bearing (B6304A3) |
933-06304-43-00 |
from US $21.22 |
||
|
12
|
12
5EL-17402-00-00 Drive Axle Assy |
5EL-17402-00-00 |
from US $145.07 |
||
|
13
|
13
5EL-17221-00-00 Gear, 2Nd Wheel (40T)2ND WHEEL 40T |
5EL-17221-00-00 |
from US $110.80 |
||
|
14
|
14
90209-28331-00 Washer |
90209-28331-00 |
from US $10.63 |
||
|
15
|
15
93440-31172-00 Circlip |
93440-31172-00 |
from US $10.91 |
||
|
16
|
16
5EL-17251-00-00 Gear, 5Th Wheel (29T)5TH WHEEL 29T |
5EL-17251-00-00 |
from US $111.36 |
||
|
17
|
17
5EL-17231-00-00 Gear, 3Rd Wheel (36T)3RD WHEEL 36T |
5EL-17231-00-00 |
from US $86.92 |
||
|
18
|
18
90209-28331-00 Washer |
90209-28331-00 |
from US $10.63 |
||
|
19
|
19
93440-31172-00 Circlip |
93440-31172-00 |
from US $10.91 |
||
|
20
|
20
5EL-17241-00-00 Gear, 4Th Wheel4TH WHEEL 32T |
5EL-17241-00-00 |
from US $129.18 |
||
| replacement | |||||
|
20
|
20
5KS-17241-00-00 Gear, 4Th Wheel (32T)4TH WHEEL 32T |
5KS-17241-00-00 |
from US $129.18 |
||
|
21
|
21
4X7-17211-00-00 Gear, 1St Wheel (40T)1ST WHEEL 40T |
4X7-17211-00-00 |
from US $96.99 |
||
|
22
|
22
5EL-17582-00-00 Gear, Middle Drive (47T)47T |
5EL-17582-00-00 |
from US $93.35 |
||
|
23
|
23
93306-20401-00 Bearing |
93306-20401-00 |
from US $15.53 |
||
| replacements | |||||
|
23
|
23
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.53 |
||
|
23
|
23
93306-204Y7-00
Bearing
|
93306-204Y7-00 |
— | ||
|
24
|
24
93306-20550-00 Bearing (B6205Du8) |
93306-20550-00 |
from US $22.10 |
||
|
25
|
25
5EL-17583-00-00 Gear, Middle Driven (25T)25T |
5EL-17583-00-00 |
from US $193.42 |
||
|
26
|
26
93316-01201-00 Bearing |
93316-01201-00 |
from US $58.17 |
||
|
27
|
27
93306-91201-00 Bearing |
93306-91201-00 |
from US $55.26 |
||
