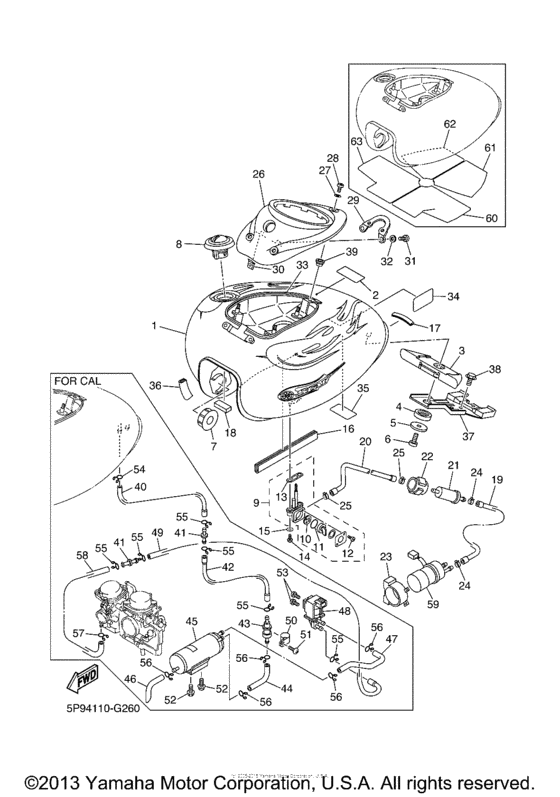

Fuel tank Diagram Yamaha XVS1100 V-Star Midnight Custom
- Year
- 2008
- Model code
- 5P94 / 5P95
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-Y2410-A2-01 Fuel Tank Compfor Color Black Metallic X SMX / 0903 |
5EL-Y2410-A2-01 |
US $1,191.74 |
||
|
1
|
1
5EL-Y2410-V2-X1 Fuel Tank Compfor Color Black Metallic X SMX / 0903 |
5EL-Y2410-V2-X1 |
US $990.66 |
||
|
2
|
2
5GK-2118K-00-00 Label, Caution |
5GK-2118K-00-00 |
from US $3.89 |
||
|
3
|
3
5EL-24182-00-00 Damper, Locating 2 |
5EL-24182-00-00 |
from US $17 |
||
|
4
|
4
4TR-24183-00-00 Damper, Locating 3 |
4TR-24183-00-00 |
from US $5.24 |
||
|
5
|
5
902-01060-S9-00
Washer, Plate
|
902-01060-S9-00 |
— | ||
| replacement | |||||
|
5
|
5
902-01061-10-00 Washer, Plate |
902-01061-10-00 |
from US $1.70 |
||
|
6
|
6
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
7
|
7
2YK-24181-10-00
Damper, Locating 1
|
2YK-24181-10-00 |
— | ||
| replacement | |||||
|
7
|
7
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
|
8
|
8
5BN-24602-02-00 Cap AssyXB 5P94 U49 |
5BN-24602-02-00 |
from US $104.86 |
||
| replacement | |||||
|
8
|
8
5BN-24602-10-00 Fuel Cap AssyXB 5P94 U49 |
5BN-24602-10-00 |
from US $104.86 |
||
|
8
|
8
4NK-24602-12-00
Cap Assy
5P95 CA |
4NK-24602-12-00 |
— | ||
| replacement | |||||
|
8
|
8
4NK-24602-20-00 Cap Assy5P95 CA |
4NK-24602-20-00 |
from US $106.80 |
||
|
9
|
9
4WM-24500-02-00
Fuel Cock Assy 1
|
4WM-24500-02-00 |
— | ||
| replacement | |||||
|
9
|
9
4WM-24500-10-00 Fuel Cock Assy 1 |
4WM-24500-10-00 |
from US $52.42 |
||
|
10
|
10
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $7.42 |
||
|
11
|
11
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $4.16 |
||
|
12
|
12
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
13
|
13
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $2.08 |
||
|
14
|
14
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
15
|
15
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
15
|
15
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
16
|
16
1FK-2171L-00-00 Mole, Side Cover 1 |
1FK-2171L-00-00 |
from US $13.60 |
||
|
17
|
17
5EL-24188-00-00 Mold, Fuel Tank |
5EL-24188-00-00 |
from US $6.38 |
||
|
18
|
18
3XV-21717-00-00 Damper |
3XV-21717-00-00 |
from US $2.27 |
||
|
19
|
19
5EL-24311-10-00 Pipe, Fuel 1 |
5EL-24311-10-00 |
US $60.77 |
||
|
20
|
20
5EL-24313-10-00 Pipe 3 |
5EL-24313-10-00 |
US $69.19 |
||
|
21
|
21
1FK-24560-10-00 Filter Assy |
1FK-24560-10-00 |
from US $15.84 |
||
|
22
|
22
1FK-24566-00-00 Bracket, Filter |
1FK-24566-00-00 |
from US $11.10 |
||
|
23
|
23
4EB-24398-00-00 Band 1 |
4EB-24398-00-00 |
from US $16.15 |
||
|
24
|
24
90467-12053-00 Clip |
90467-12053-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.52 |
||
|
25
|
25
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
26
|
26
5EL-2171A-00-00 Cover, Top |
5EL-2171A-00-00 |
from US $149.21 |
||
|
27
|
27
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $2.08 |
||
|
28
|
28
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
28
|
28
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.39 |
||
|
29
|
29
5EL-2412F-00-00 Bracket, Seat |
5EL-2412F-00-00 |
from US $8.08 |
||
|
30
|
30
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $3.33 |
||
|
31
|
31
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
31
|
31
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
32
|
32
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
33
|
33
5EL-2414G-00-00 Seal |
5EL-2414G-00-00 |
from US $3.26 |
||
|
34
|
34
4DN-21268-00-00 Seal |
4DN-21268-00-00 |
from US $10.01 |
||
|
35
|
35
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
36
|
36
5EL-24188-00-00 Mold, Fuel Tank |
5EL-24188-00-00 |
from US $6.38 |
||
|
37
|
37
5EL-2411F-00-00 Plate, Fitting |
5EL-2411F-00-00 |
from US $41.45 |
||
|
38
|
38
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.18 |
||
| replacement | |||||
|
38
|
38
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
39
|
39
90179-05009-00 Nut |
90179-05009-00 |
from US $7.23 |
||
|
40
|
40
5EL-24321-10-00 Pipe 1010 |
5EL-24321-10-00 |
US $95.44 |
||
|
41
|
41
4XY-14568-00-00 Joint |
4XY-14568-00-00 |
from US $1.94 |
||
|
42
|
42
5EL-24312-20-00 Pipe 2 |
5EL-24312-20-00 |
US $140.13 |
||
|
43
|
43
5RB-24180-00-00 Roll Over Valve Assy |
5RB-24180-00-00 |
from US $35.77 |
||
|
44
|
44
904-45110-56-00 Hose |
904-45110-56-00 |
US $10.28 |
||
|
45
|
45
5EL-24170-00-00 Canister Assy |
5EL-24170-00-00 |
from US $510.26 |
||
|
46
|
46
5EL-24316-10-00 Pipe 6 |
5EL-24316-10-00 |
from US $3.12 |
||
|
47
|
47
5EL-24317-10-00 Pipe 7 |
5EL-24317-10-00 |
US $79.40 |
||
|
48
|
48
4WM-14896-00-00 Valve, Outer Vent Control 2 |
4WM-14896-00-00 |
US $107.75 |
||
|
49
|
49
5EL-24315-10-00 Pipe 5 |
5EL-24315-10-00 |
US $192.17 |
||
|
50
|
50
90461-15139-00 Clamp(4Tr) |
90461-15139-00 |
from US $1.57 |
||
| replacement | |||||
|
50
|
50
904-64150-14-00 Clamp |
904-64150-14-00 |
from US $1.70 |
||
|
51
|
51
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
51
|
51
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
52
|
52
90105-06446-00 Bolt, Washer Based |
90105-06446-00 |
from US $1.07 |
||
| replacement | |||||
|
52
|
52
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
53
|
53
90150-05040-00 Screw, Round Head |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
53
|
53
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
54
|
54
904-67080-75-00
Clip
|
904-67080-75-00 |
— | ||
| replacement | |||||
|
54
|
54
904-67080-21-00 Clip |
904-67080-21-00 |
from US $1.81 |
||
|
55
|
55
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
55
|
55
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
56
|
56
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.39 |
||
| replacements | |||||
|
56
|
56
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
56
|
56
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
57
|
57
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
58
|
58
5EL-24322-10-00 Pipe 1111 |
5EL-24322-10-00 |
US $67.45 |
||
|
59
|
59
5KS-13907-00-00
Fuel Pump
|
5KS-13907-00-00 |
— | ||
| replacement | |||||
|
59
|
59
5KS-13907-01-00 Fuel Pump |
5KS-13907-01-00 |
from US $237.51 |
||
|
60
|
60
5YS-2414H-00-00 Damper, Plate 1 |
5YS-2414H-00-00 |
from US $28.05 |
||
|
61
|
61
5YS-2414J-00-00 Damper, Plate 2 |
5YS-2414J-00-00 |
from US $28.05 |
||
|
62
|
62
5YS-2414K-00-00 Damper, Plate 3 |
5YS-2414K-00-00 |
from US $28.05 |
||
|
63
|
63
5YS-2414N-00-00 Damper, Plate 4 |
5YS-2414N-00-00 |
from US $28.05 |
||
