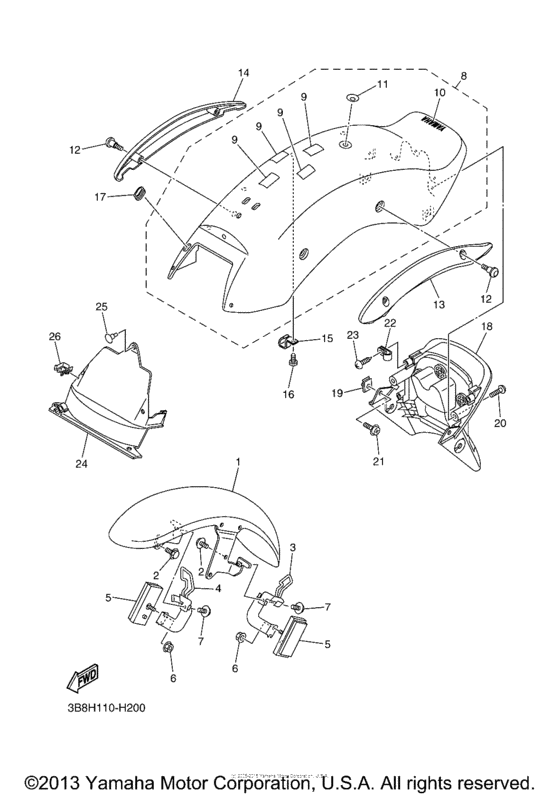

Fender Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2009
- Model code
- 3B8H
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EL-21510-01-PA Front Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
5EL-21510-01-PA |
US $536.15 |
||
|
2
|
2
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
3
|
3
5EL-21597-10-00 Holder,wire 1 |
5EL-21597-10-00 |
US $35.35 |
||
|
4
|
4
5EL-21598-10-00 Holder, Wire 2 |
5EL-21598-10-00 |
US $32.02 |
||
|
5
|
5
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
6
|
6
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
7
|
7
90105-06154-00 Bolt, Flange |
90105-06154-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
90105-06066-00 Bolt, Flange |
90105-06066-00 |
from US $1.70 |
||
|
8
|
8
5EL-Y2161-1M-P6 Rear Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
5EL-Y2161-1M-P6 |
US $457.96 |
||
|
9
|
9
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
10
|
10
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
10
|
10
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
10
|
10
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
11
|
11
5VN-21735-00-00 Seal 2 |
5VN-21735-00-00 |
from US $1.98 |
||
|
12
|
12
90111-08001-00 Bolt, Hex. Socket Button |
90111-08001-00 |
from US $5.24 |
||
|
13
|
13
5EL-2164F-00-00 Stay 1 |
5EL-2164F-00-00 |
from US $82.21 |
||
|
14
|
14
5EL-2164G-00-00 Stay 2 |
5EL-2164G-00-00 |
from US $82.21 |
||
|
15
|
15
90461-06001-00 Clamp |
90461-06001-00 |
from US $1.70 |
||
|
16
|
16
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
17
|
17
90480-01001-00 Grommet |
90480-01001-00 |
from US $1.70 |
||
|
18
|
18
5EL-2162R-00-00 Fender 2 |
5EL-2162R-00-00 |
from US $28.02 |
||
|
19
|
19
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
20
|
20
90154-05004-00 Screw, C.r. Binding (2T4) |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
21
|
21
901-59050-83-00
Screw, With Washer
|
901-59050-83-00 |
— | ||
| replacement | |||||
|
21
|
21
90159-05056-00 Screw, With Washer |
90159-05056-00 |
from US $1.84 |
||
|
22
|
22
90461-10135-00 Clamp |
90461-10135-00 |
from US $10.34 |
||
|
23
|
23
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
24
|
24
5EL-21629-00-00 Guard, Mud |
5EL-21629-00-00 |
from US $21.11 |
||
|
25
|
25
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
26
|
26
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
