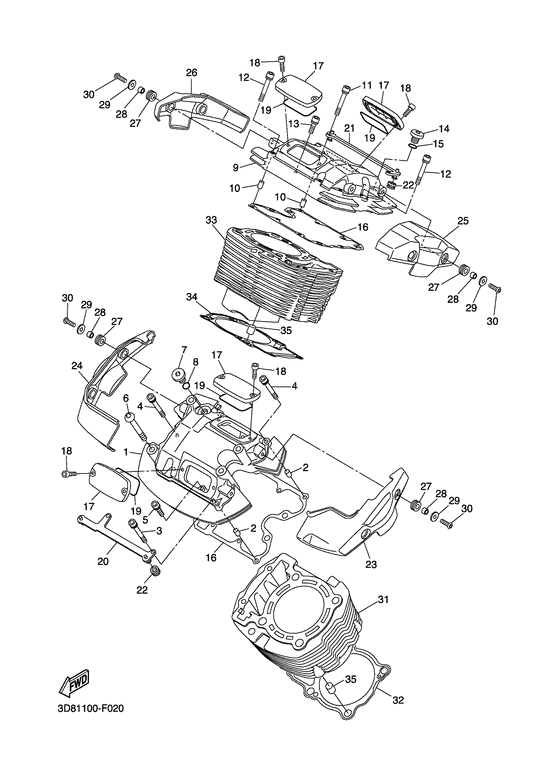

Cylinder Diagram Yamaha XVS1300 Midnight Star
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11C2
- Sales region
- England (060)
- Базовая модель
- XVS1300A
- Engine Capacity
- 1300
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3D8-11191-00-00 Cover, Cylinder Head 1 |
3D8-11191-00-00 |
from US $358.73 |
||
|
02
|
02
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
03
|
03
90110-06269-00 Bolt, Hexagon Socket Head |
90110-06269-00 |
from US $1.84 |
||
|
04
|
04
90110-06268-00 Bolt, Hexagon Socket Head |
90110-06268-00 |
from US $1.84 |
||
|
05
|
05
90110-06267-00 Bolt, Hexagon Socket Head |
90110-06267-00 |
from US $4.53 |
||
|
06
|
06
95812-10090-00 Bolt, Flange |
95812-10090-00 |
from US $3.47 |
||
| replacements | |||||
|
06
|
06
95817-10090-00 Bolt,flange |
95817-10090-00 |
from US $3.47 |
||
|
06
|
06
958-11100-90-00 Bolt, Flange(3Yf) |
958-11100-90-00 |
US $3.47 |
||
|
07
|
07
90340-14003-00 Plug, Straight Screw |
90340-14003-00 |
from US $27.74 |
||
|
08
|
08
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.81 |
||
|
09
|
09
3D8-11192-00-00 Cover, Cylinder Head 2 |
3D8-11192-00-00 |
from US $355.28 |
||
|
10
|
10
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
11
|
11
90110-06269-00 Bolt, Hexagon Socket Head |
90110-06269-00 |
from US $1.84 |
||
|
12
|
12
90110-06268-00 Bolt, Hexagon Socket Head |
90110-06268-00 |
from US $1.84 |
||
|
13
|
13
90110-06267-00 Bolt, Hexagon Socket Head |
90110-06267-00 |
from US $4.53 |
||
|
14
|
14
90340-14003-00 Plug, Straight Screw |
90340-14003-00 |
from US $27.74 |
||
|
15
|
15
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.81 |
||
|
16
|
16
3D8-11193-00-00 Gasket, Head Cover 1 |
3D8-11193-00-00 |
from US $17.86 |
||
|
17
|
17
3D8-11186-00-00 Cover, Cylinder Head Side 2 |
3D8-11186-00-00 |
from US $6.94 |
||
| replacement | |||||
|
17
|
17
27D-11186-00-00 Cover, Cylinder Head Side 2 |
27D-11186-00-00 |
from US $6.94 |
||
|
18
|
18
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
19
|
19
3D8-11196-00-00 Gasket, Cylinder Head Side |
3D8-11196-00-00 |
from US $7.21 |
||
|
20
|
20
3D8-1112F-00-00 Plate 2 |
3D8-1112F-00-00 |
from US $16.86 |
||
| replacement | |||||
|
20
|
20
3D8-1112F-01-00 Plate 2 |
3D8-1112F-01-00 |
from US $16.86 |
||
|
21
|
21
3D8-1113F-00-00 Plate 3 |
3D8-1113F-00-00 |
from US $16.86 |
||
| replacement | |||||
|
21
|
21
3D8-1113F-01-00 Plate 3 |
3D8-1113F-01-00 |
from US $16.86 |
||
|
22
|
22
90480-10334-00 Grommet |
90480-10334-00 |
from US $1.70 |
||
|
23
|
23
3D8-1111M-00-00 Cover 1 |
3D8-1111M-00-00 |
from US $77.65 |
||
|
24
|
24
3D8-1111N-00-00 Cover 2 |
3D8-1111N-00-00 |
from US $88.31 |
||
|
25
|
25
3D8-1111P-00-00 Cover 3 |
3D8-1111P-00-00 |
US $134.41 |
||
|
26
|
26
3D8-1111R-00-00 Cover 4 |
3D8-1111R-00-00 |
from US $84.66 |
||
|
27
|
27
90480-13022-00 Grommet |
90480-13022-00 |
from US $1.52 |
||
|
28
|
28
90387-06207-00 Collar |
90387-06207-00 |
from US $1.52 |
||
|
29
|
29
90201-06088-00 Washer, Plate |
90201-06088-00 |
from US $1.81 |
||
|
30
|
30
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
31
|
31
3D8-11311-00-00 Cylinder 1 |
3D8-11311-00-00 |
from US $875.67 |
||
|
32
|
32
3D8-11351-00-00 Gasket, Cylinder |
3D8-11351-00-00 |
from US $23.72 |
||
|
33
|
33
3D8-11321-00-00 Cylinder 2 |
3D8-11321-00-00 |
from US $1,032.79 |
||
| replacement | |||||
|
33
|
33
3D8-11321-01-00 Cylinder 2 |
3D8-11321-01-00 |
from US $1,065.80 |
||
|
34
|
34
3D8-11352-00-00 Gasket, Cylinder 2 |
3D8-11352-00-00 |
from US $24.70 |
||
|
35
|
35
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
35
|
35
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
