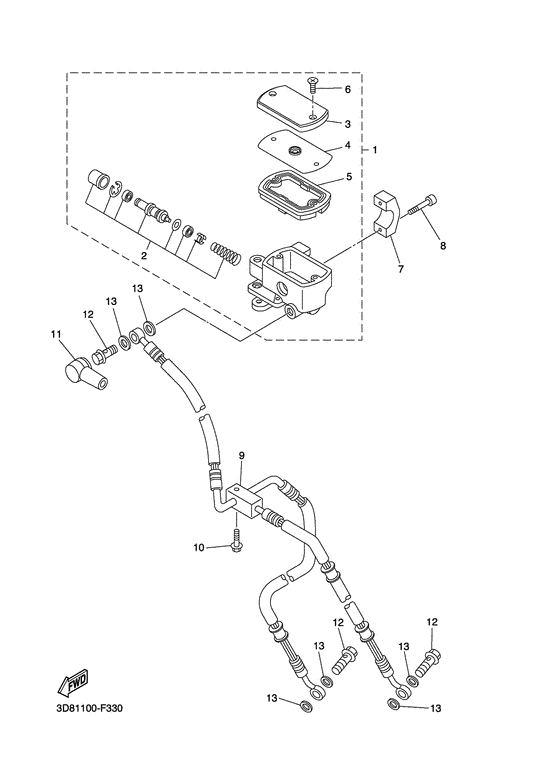

Front master cylinder Diagram Yamaha XVS1300 Midnight Star
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11C2
- Sales region
- England (060)
- Базовая модель
- XVS1300A
- Engine Capacity
- 1300
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3D8-W2587-00-00 Master Cylinder Sub Assy |
3D8-W2587-00-00 |
from US $197.77 |
||
| replacement | |||||
|
01
|
01
3D8-25870-01-00 Master Cylinder Sub Assy |
3D8-25870-01-00 |
from US $193.89 |
||
|
02
|
02
2KR-W0041-00-00
Cylinder Kit, Master
|
2KR-W0041-00-00 |
— | ||
| replacement | |||||
|
02
|
02
2KR-25807-00-00 Cylinder Kit, Master |
2KR-25807-00-00 |
from US $52.02 |
||
|
03
|
03
3D8-25852-00-00 Cap, Reservoir |
3D8-25852-00-00 |
from US $30.74 |
||
|
04
|
04
3D8-25855-00-00 Bush, Diaphragm |
3D8-25855-00-00 |
from US $4.11 |
||
|
05
|
05
3D8-25854-00-00 Gasket, Diaphragm |
3D8-25854-00-00 |
from US $20.83 |
||
|
06
|
06
3D8-2589H-00-00 Screw |
3D8-2589H-00-00 |
from US $1.70 |
||
|
07
|
07
4TR-25867-10-00 Bracket, Master Cylinder |
4TR-25867-10-00 |
from US $19.98 |
||
|
08
|
08
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
09
|
09
3D8-25872-00-00 Hose, Brake 1 |
3D8-25872-00-00 |
from US $137.19 |
||
|
10
|
10
90105-06096-00 Bolt, FlangeBolt, flange |
90105-06096-00 |
from US $2.13 |
||
| replacements | |||||
|
10
|
10
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
10
|
10
90105-06791-00 Bolt, Flange |
90105-06791-00 |
from US $1.70 |
||
|
11
|
11
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
12
|
12
90401-10020-00 Bolt, Union |
90401-10020-00 |
from US $2.69 |
||
|
13
|
13
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
