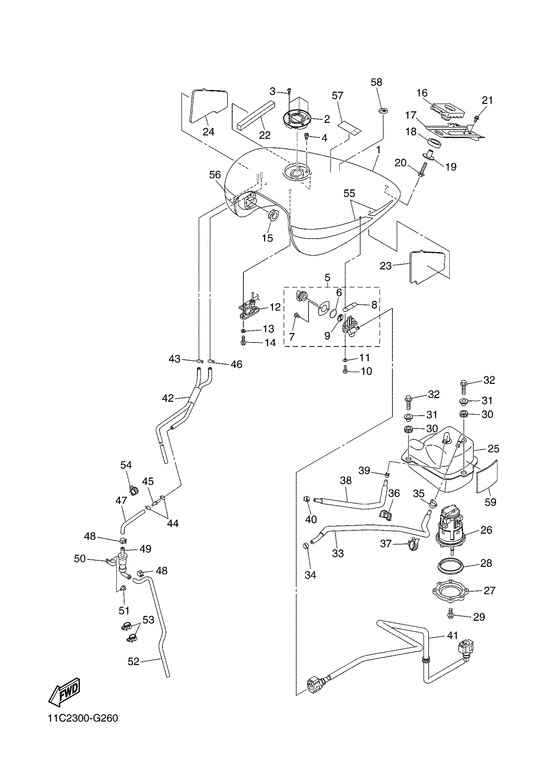

Fuel tank Diagram Yamaha XVS1300 Midnight Star
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11C2
- Sales region
- England (060)
- Базовая модель
- XVS1300A
- Engine Capacity
- 1300
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3D8-YK241-00-P0 Fuel Tank CompUr for smx |
3D8-YK241-00-P0 |
from US $1,116.23 |
||
|
01
|
01
3D8-YK241-00-P1
Fuel Tank Comp
Ur for dpbml |
3D8-YK241-00-P1 |
— | ||
|
01
|
01
3D8-YK241-00-P5 Fuel Tank CompUr for vdrm2 |
3D8-YK241-00-P5 |
from US $959.68 |
||
|
02
|
02
3D8-24602-00-00 Cap Assy |
3D8-24602-00-00 |
from US $185.13 |
||
| replacement | |||||
|
02
|
02
3D8-24602-10-00 Cap Assy |
3D8-24602-10-00 |
from US $185.13 |
||
|
03
|
03
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.81 |
||
|
04
|
04
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.66 |
||
|
05
|
05
4JT-24500-10-00 Fuel Cock Assy 1 |
4JT-24500-10-00 |
from US $48.49 |
||
| replacement | |||||
|
05
|
05
4JT-24500-20-00 Fuel Cock Assy 1 |
4JT-24500-20-00 |
from US $48.49 |
||
|
06
|
06
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $4.16 |
||
|
07
|
07
98502-03008-00 Screw, Pan Head |
98502-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
07
|
07
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
08
|
08
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $2.08 |
||
|
09
|
09
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $7.42 |
||
|
10
|
10
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
11
|
11
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
11
|
11
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
12
|
12
3D8-85752-00-00 Sender Unit Assy, Fuel Meter |
3D8-85752-00-00 |
from US $98.92 |
||
| replacements | |||||
|
12
|
12
3D8-85752-10-00 Sender Unit Assy, Fuel Meter |
3D8-85752-10-00 |
from US $98.92 |
||
|
12
|
12
3D8-85752-11-00 |
3D8-85752-11-00 |
US $112.55 |
||
|
13
|
13
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
13
|
13
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
14
|
14
95812-06016-00 Bolt, Flange |
95812-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
15
|
15
2YK-24181-10-00
Damper, Locating 1
|
2YK-24181-10-00 |
— | ||
| replacement | |||||
|
15
|
15
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
|
16
|
16
1D7-24182-00-00 Damper, Locating 2 |
1D7-24182-00-00 |
from US $5.10 |
||
|
17
|
17
3D8-2413Y-00-00 Bracket, Tank Fitting |
3D8-2413Y-00-00 |
from US $26.49 |
||
|
18
|
18
4TR-24183-00-00 Damper, Locating 3 |
4TR-24183-00-00 |
from US $5.24 |
||
|
19
|
19
90387-06177-00 Collar |
90387-06177-00 |
from US $8.78 |
||
|
20
|
20
95812-06030-00 Bolt, Flange |
95812-06030-00 |
from US $1.42 |
||
|
21
|
21
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
22
|
22
3XV-28217-00-00 Damper 1 |
3XV-28217-00-00 |
from US $9.63 |
||
|
23
|
23
3D8-2476U-00-00
Protector, 1
|
3D8-2476U-00-00 |
— | ||
|
24
|
24
3D8-2476V-00-00 Protector,2 |
3D8-2476V-00-00 |
from US $20.40 |
||
|
25
|
25
3D8-244A0-00-00 Pump Case Comp |
3D8-244A0-00-00 |
from US $313.62 |
||
|
26
|
26
3D8-13907-00-00
Fuel Pump Comp
|
3D8-13907-00-00 |
— | ||
| replacements | |||||
|
26
|
26
3D8-13907-01-00 Fuel Pump Comp |
3D8-13907-01-00 |
from US $603.24 |
||
|
26
|
26
3D8-13907-02-00 Fuel Pump Comp. |
3D8-13907-02-00 |
from US $577.65 |
||
|
26
|
26
3D8-13907-03-00 Fuel Pump ASSY |
3D8-13907-03-00 |
from US $603.24 |
||
|
27
|
27
3D8-24491-00-00 Bracket, Fuel Pump |
3D8-24491-00-00 |
from US $27.63 |
||
| replacement | |||||
|
27
|
27
3D8-24491-10-00 Bracket, Fuel Pump |
3D8-24491-10-00 |
from US $27.63 |
||
|
28
|
28
5JW-24486-00-00
O-Ring
|
5JW-24486-00-00 |
— | ||
| replacement | |||||
|
28
|
28
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $23.16 |
||
|
29
|
29
90110-05028-00 Bolt, Hexagon Socket Head |
90110-05028-00 |
from US $1.70 |
||
|
30
|
30
3D8-24185-00-00 Damper, Locating 5 |
3D8-24185-00-00 |
from US $1.70 |
||
|
31
|
31
90387-062U9-00 Collar |
90387-062U9-00 |
from US $4.11 |
||
|
32
|
32
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.16 |
||
| replacements | |||||
|
32
|
32
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
32
|
32
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
33
|
33
3D8-24311-00-00 Pipe, Fuel 1 |
3D8-24311-00-00 |
from US $25.79 |
||
|
34
|
34
90467-12004-00 Clip |
90467-12004-00 |
from US $1.84 |
||
|
35
|
35
90467-130A1-00 Clip |
90467-130A1-00 |
from US $3.40 |
||
|
36
|
36
90464-19001-00 Clamp |
90464-19001-00 |
from US $1.56 |
||
|
37
|
37
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
38
|
38
3D8-24312-00-00 Pipe 2 |
3D8-24312-00-00 |
from US $20.54 |
||
|
39
|
39
90467-160A2-00 Clip |
90467-160A2-00 |
from US $2.55 |
||
|
40
|
40
5PX-2411M-00-00 Clip |
5PX-2411M-00-00 |
from US $6.26 |
||
|
41
|
41
3D8-13971-00-00 Pipe, Fuel 1 |
3D8-13971-00-00 |
from US $75.85 |
||
|
42
|
42
3D8-2318J-00-00 Hose Assy |
3D8-2318J-00-00 |
from US $78.75 |
||
| replacement | |||||
|
42
|
42
3D8-2318J-01-00 Hose Assy |
3D8-2318J-01-00 |
from US $78.75 |
||
|
43
|
43
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
43
|
43
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
44
|
44
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
44
|
44
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
45
|
45
4XY-14568-00-00 Joint |
4XY-14568-00-00 |
from US $1.94 |
||
|
46
|
46
904-67091-03-00
Clip
|
904-67091-03-00 |
— | ||
| replacement | |||||
|
46
|
46
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
47
|
47
3D8-24324-00-00 Pipe 13 |
3D8-24324-00-00 |
from US $12.47 |
||
|
48
|
48
90467-09001-00 Clip |
90467-09001-00 |
from US $1.70 |
||
|
49
|
49
5RB-24180-00-00 Roll Over Valve Assy |
5RB-24180-00-00 |
from US $35.77 |
||
|
50
|
50
90461-15139-00 Clamp(4Tr) |
90461-15139-00 |
from US $1.57 |
||
| replacement | |||||
|
50
|
50
904-64150-14-00 Clamp |
904-64150-14-00 |
from US $1.70 |
||
|
51
|
51
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.81 |
||
|
52
|
52
90445-10040-00 Hose |
90445-10040-00 |
from US $9.83 |
||
|
53
|
53
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
54
|
54
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
55
|
55
3D8-2416C-10-00 Emblem 3D Set |
3D8-2416C-10-00 |
US $133.60 |
||
|
56
|
56
3D8-2417C-10-00 Emblem 3D Set |
3D8-2417C-10-00 |
US $133.60 |
||
|
57
|
57
5RU-21568-00-00 Label, Warning |
5RU-21568-00-00 |
US $2.55 |
||
| replacement | |||||
|
57
|
57
5RU-21568-01-00 Label, Warning |
5RU-21568-01-00 |
US $2.55 |
||
|
58
|
58
3ME-2415E-01-00 Label, Caution |
3ME-2415E-01-00 |
US $3.47 |
||
|
59
|
59
3D8-2414J-00-00 Damper, Plate 2 |
3D8-2414J-00-00 |
from US $1.56 |
||
