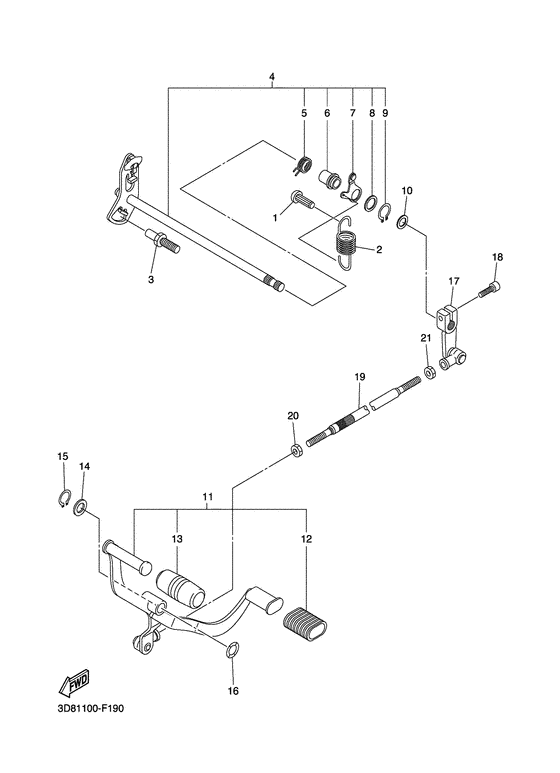

Shift shaft Diagram Yamaha XVS1300 Midnight Star
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11C2
- Sales region
- England (060)
- Базовая модель
- XVS1300A
- Engine Capacity
- 1300
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
02
|
02
90506-18015-00 Spring, Tension |
90506-18015-00 |
from US $2.91 |
||
|
03
|
03
1D7-18127-00-00 Stopper, Screw |
1D7-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
03
|
03
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
04
|
04
3D8-18101-00-00 Shift Shaft Assy |
3D8-18101-00-00 |
from US $85.80 |
||
| replacement | |||||
|
04
|
04
3D8-18101-01-00 Shift Shaft Assy |
3D8-18101-01-00 |
from US $82.47 |
||
|
05
|
05
90508-32040-00 Spring, Torsion |
90508-32040-00 |
from US $3.83 |
||
|
06
|
06
3D8-18175-00-00 Spacer |
3D8-18175-00-00 |
from US $18.99 |
||
|
07
|
07
3D8-18140-00-00 Stopper Lever Assy |
3D8-18140-00-00 |
from US $10.06 |
||
|
08
|
08
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.77 |
||
|
09
|
09
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
10
|
10
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
11
|
11
3D8-18110-10-00 Shift Pedal Assy |
3D8-18110-10-00 |
from US $197.55 |
||
| replacement | |||||
|
11
|
11
3D8-18110-12-00 Shift Pedal Assy |
3D8-18110-12-00 |
from US $202.30 |
||
|
12
|
12
22N-18113-00-00 Cover, Shift Pedal |
22N-18113-00-00 |
from US $6.80 |
||
|
13
|
13
5VN-18113-00-00 Cover, Shift Pedal |
5VN-18113-00-00 |
from US $9.98 |
||
|
14
|
14
90201-12688-00 Washer, Plate |
90201-12688-00 |
from US $2.64 |
||
| replacement | |||||
|
14
|
14
90201-124E4-00 Washer, Plate |
90201-124E4-00 |
from US $2.58 |
||
|
15
|
15
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
16
|
16
90206-12074-00 Washer, Wave |
90206-12074-00 |
from US $1.81 |
||
|
17
|
17
3D8-18112-01-00 Arm, Shift |
3D8-18112-01-00 |
from US $57.20 |
||
|
18
|
18
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
19
|
19
3D8-18115-00-00 Rod, Shift |
3D8-18115-00-00 |
from US $9.52 |
||
|
20
|
20
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
21
|
21
95304-06700-00 Nut |
95304-06700-00 |
US $1.52 |
||
| replacements | |||||
|
21
|
21
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
21
|
21
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
