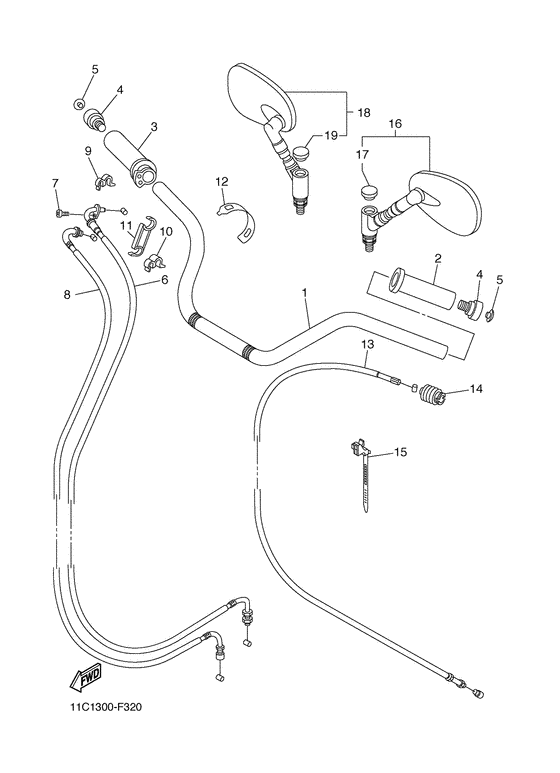

Steering handle & cable Diagram Yamaha XVS1300 Midnight Star
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11C2
- Sales region
- England (060)
- Базовая модель
- XVS1300A
- Engine Capacity
- 1300
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3D8-26111-01-00 Handlebar |
3D8-26111-01-00 |
from US $283.23 |
||
|
02
|
02
4NK-26241-00-00
Grip(Left)
|
4NK-26241-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4NK-26241-01-00 Grip(Left) |
4NK-26241-01-00 |
from US $39.42 |
||
|
03
|
03
4XY-26240-00-00 Grip Assy |
4XY-26240-00-00 |
from US $53.51 |
||
|
04
|
04
5EL-26246-00-00 End, Grip |
5EL-26246-00-00 |
from US $49.52 |
||
|
05
|
05
90338-10164-00 Plug |
90338-10164-00 |
from US $3.89 |
||
|
06
|
06
3D8-26311-00-00 Cable, Throttle 1 |
3D8-26311-00-00 |
from US $25.67 |
||
|
07
|
07
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
08
|
08
3D8-26312-00-00 Cable, Throttle 2 |
3D8-26312-00-00 |
from US $34.51 |
||
|
09
|
09
90464-07006-00 Clamp |
90464-07006-00 |
from US $1.84 |
||
|
10
|
10
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.81 |
||
|
11
|
11
90464-13009-00
Clamp
|
90464-13009-00 |
— | ||
|
12
|
12
3D8-25715-00-00 Cover 1 |
3D8-25715-00-00 |
from US $2.27 |
||
|
13
|
13
3D8-26335-10-00 Cable, clutch |
3D8-26335-10-00 |
from US $55.89 |
||
| replacement | |||||
|
13
|
13
3D8-26335-11-00 Cable, clutch |
3D8-26335-11-00 |
from US $66.26 |
||
|
14
|
14
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
90464-15200-00 Clamp |
90464-15200-00 |
from US $4.68 |
||
|
16
|
16
5EL-26280-10-00 Rear View Mirror Assy (Left) |
5EL-26280-10-00 |
US $94.95 |
||
|
17
|
17
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.99 |
||
|
18
|
18
5EL-26290-10-00 Rear View Mirror Assy (Right) |
5EL-26290-10-00 |
US $94.95 |
||
|
19
|
19
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.99 |
||
