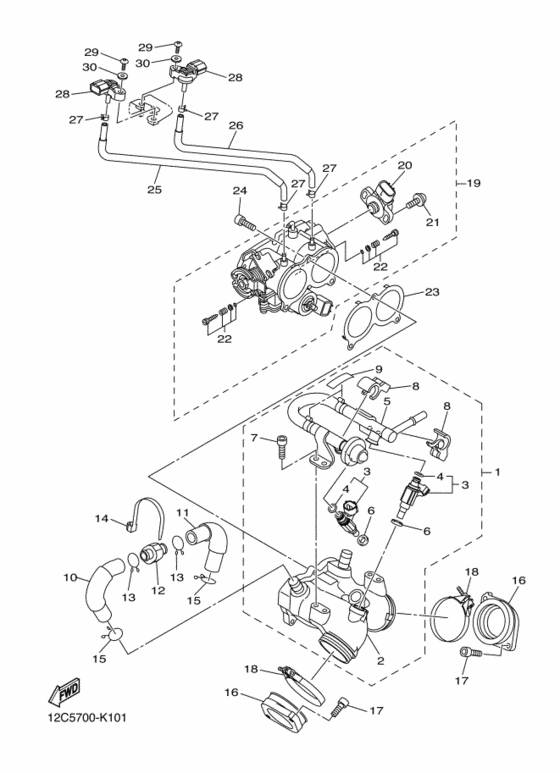

Intake 1 Diagram Yamaha XVS1300 Midnight Star
- Year
- 2011
- Colour
- Black Metallic X
- Model code
- 1CS1
- Sales region
- Europe (040)
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- XVS1300A (Midnight Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-13590-30-00 Carburetor Joint Assy |
3D8-13590-30-00 |
from US $541.20 |
||
|
2
|
2
3D8-13640-00-00 Manifold |
3D8-13640-00-00 |
from US $252.83 |
||
|
3
|
3
3D8-13761-00-00 Injector |
3D8-13761-00-00 |
from US $160.27 |
||
|
4
|
4
5FL-14147-00-00 O-Ring |
5FL-14147-00-00 |
from US $9.78 |
||
|
5
|
5
3D8-13930-00-00 Pipe Inlet Assembly |
3D8-13930-00-00 |
from US $273.56 |
||
| replacement | |||||
|
5
|
5
3D8-13930-10-00 Pipe Inlet Assembly |
3D8-13930-10-00 |
from US $273.56 |
||
|
6
|
6
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.43 |
||
|
7
|
7
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
8
|
8
3D8-14261-00-00 Holder |
3D8-14261-00-00 |
from US $3.40 |
||
|
9
|
9
3D8-1442F-00-00 Protector |
3D8-1442F-00-00 |
from US $5.10 |
||
|
10
|
10
3D8-1441J-01-00 Pipe, Silencer |
3D8-1441J-01-00 |
from US $15.16 |
||
|
11
|
11
3D8-1442J-01-00 Pipe, Silencer 2 |
3D8-1442J-01-00 |
from US $15.16 |
||
|
12
|
12
3D8-14862-00-00 Plug |
3D8-14862-00-00 |
from US $1.70 |
||
|
13
|
13
90467-18196-00 Clip |
90467-18196-00 |
from US $1.81 |
||
|
14
|
14
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
15
|
15
90467-18196-00 Clip |
90467-18196-00 |
from US $1.81 |
||
|
16
|
16
3D8-13586-00-00 Joint, Carburetor 1 |
3D8-13586-00-00 |
from US $39.24 |
||
|
17
|
17
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
18
|
18
90450-59008-00 Hose Clamp Assy |
90450-59008-00 |
from US $8.22 |
||
| replacements | |||||
|
18
|
18
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
18
|
18
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
19
|
19
3D8-13750-20-00 Throttle Body Assy |
3D8-13750-20-00 |
from US $880.44 |
||
|
20
|
20
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
20
|
20
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
21
|
21
4KM-24453-00-00 Screw |
4KM-24453-00-00 |
from US $4.68 |
||
|
22
|
22
3D8-14104-00-00 Air Screw Set |
3D8-14104-00-00 |
from US $12.89 |
||
|
23
|
23
3D8-14467-00-00 Seal |
3D8-14467-00-00 |
from US $9.74 |
||
| replacement | |||||
|
23
|
23
BL3-14467-00-00 SEAL |
BL3-14467-00-00 |
from US $11.37 |
||
|
24
|
24
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
25
|
25
3D8-13895-10-00 Hose, Air |
3D8-13895-10-00 |
US $19.69 |
||
|
26
|
26
3D8-13892-10-00 Hose, Air 2 |
3D8-13892-10-00 |
from US $7.93 |
||
|
27
|
27
90467-07093-00 Clip |
90467-07093-00 |
from US $1.70 |
||
|
28
|
28
5S7-82380-00-00 Sensor, Pressure |
5S7-82380-00-00 |
from US $143.69 |
||
|
29
|
29
97002-05020-00 Bolt |
97002-05020-00 |
US $1.42 |
||
| replacements | |||||
|
29
|
29
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
29
|
29
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
30
|
30
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
30
|
30
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
30
|
30
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
