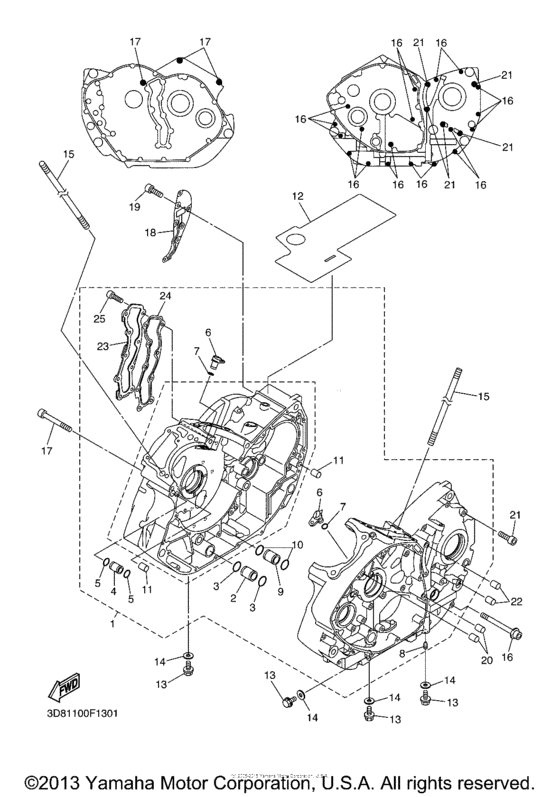

Crankcase Diagram Yamaha XVS1300 V-Star
- Year
- 2007
- Model code
- 3D81
- Sales region
- USA
- Базовая модель
- XVS13AW
- Engine Capacity
- 1300
- Model
- XVS1300A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-15100-00-00 Crankcase Assy |
3D8-15100-00-00 |
from US $2,204.40 |
||
| replacement | |||||
|
1
|
1
3D8-15100-01-00 Crankcase Assy |
3D8-15100-01-00 |
from US $1,835.31 |
||
|
2
|
2
3D8-15154-00-00 Nozzle Assy., 2 |
3D8-15154-00-00 |
from US $14.73 |
||
|
3
|
3
93210-18319-00 O-Ring |
93210-18319-00 |
from US $2.41 |
||
|
4
|
4
1D7-15138-00-00 Nozzle 1 |
1D7-15138-00-00 |
from US $6.09 |
||
|
5
|
5
93210-10003-00 O-Ring |
93210-10003-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
93210-10001-00 O-Ring |
93210-10001-00 |
from US $1.84 |
||
|
6
|
6
3D8-15148-00-00 Nozzle 2 |
3D8-15148-00-00 |
US $54.29 |
||
|
7
|
7
93210-06422-00 O-Ring |
93210-06422-00 |
from US $1.94 |
||
| replacement | |||||
|
7
|
7
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
8
|
8
2H7-15138-00-00 Nozzle 1 |
2H7-15138-00-00 |
from US $4.11 |
||
|
9
|
9
3D8-15155-00-00 Nozzle 3 |
3D8-15155-00-00 |
from US $16.86 |
||
|
10
|
10
93210-22164-00 O-Ring |
93210-22164-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.39 |
||
|
11
|
11
99530-10116-00 Pin, Dowel |
99530-10116-00 |
from US $0.90 |
||
|
12
|
12
3D8-15335-00-00 Damper 3 |
3D8-15335-00-00 |
US $35.12 |
||
|
13
|
13
95024-10016-00 Bolt, Flange (Small Head) |
95024-10016-00 |
from US $2.55 |
||
|
14
|
14
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
15
|
15
90116-12011-00 Bolt, Stud |
90116-12011-00 |
from US $10.20 |
||
|
16
|
16
90110-06203-00 Bolt, Hexagon Socket Head |
90110-06203-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
90110-06297-00 Bolt, Hexagon Socket Head |
90110-06297-00 |
from US $4.53 |
||
|
17
|
17
91314-10110-00 Bolt, Hexagon Socket Head |
91314-10110-00 |
from US $6.09 |
||
| replacement | |||||
|
17
|
17
IQG-00100-73-20
Bolt, Socket
|
IQG-00100-73-20 |
— | ||
|
18
|
18
3D8-15368-00-00 Seperator, Oil |
3D8-15368-00-00 |
from US $32.73 |
||
|
19
|
19
90110-06161-00 Bolt |
90110-06161-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
20
|
20
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
21
|
21
913-12080-35-00
Bolt
|
913-12080-35-00 |
— | ||
| replacement | |||||
|
21
|
21
913-17080-35-00 Bolt |
913-17080-35-00 |
from US $1.84 |
||
|
22
|
22
99590-10114-00 Pin, Dowel |
99590-10114-00 |
from US $3.68 |
||
|
23
|
23
3D8-15431-00-00 Cover, Crankcase 3 |
3D8-15431-00-00 |
from US $53.47 |
||
|
24
|
24
3D8-15462-00-00 Gasket, Crankcase Cover 3 |
3D8-15462-00-00 |
from US $15.12 |
||
|
25
|
25
90110-06174-00 Bolt, Hexagon Socket Head |
90110-06174-00 |
from US $1.21 |
||
| replacements | |||||
|
25
|
25
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
25
|
25
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
